AJAX Camera Starter Kit 3 Plus

  • SALE

In order to see prices please

or


AJAX Camera Starter Kit 3 Plus consists of:
- 1x NEW Hub 2 Plus
- 2x Camera motion detectors
- 1x Opening detector
- 1x KeyPad
- 1x Street siren
- 1x Home siren

Assists in protecting the entrance from break-ins through windows and doors
Sends alarms to the owner's smartphone and Central Monitoring Station via GSM, WiFi and Ethernet

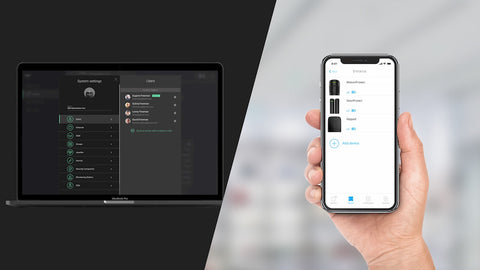

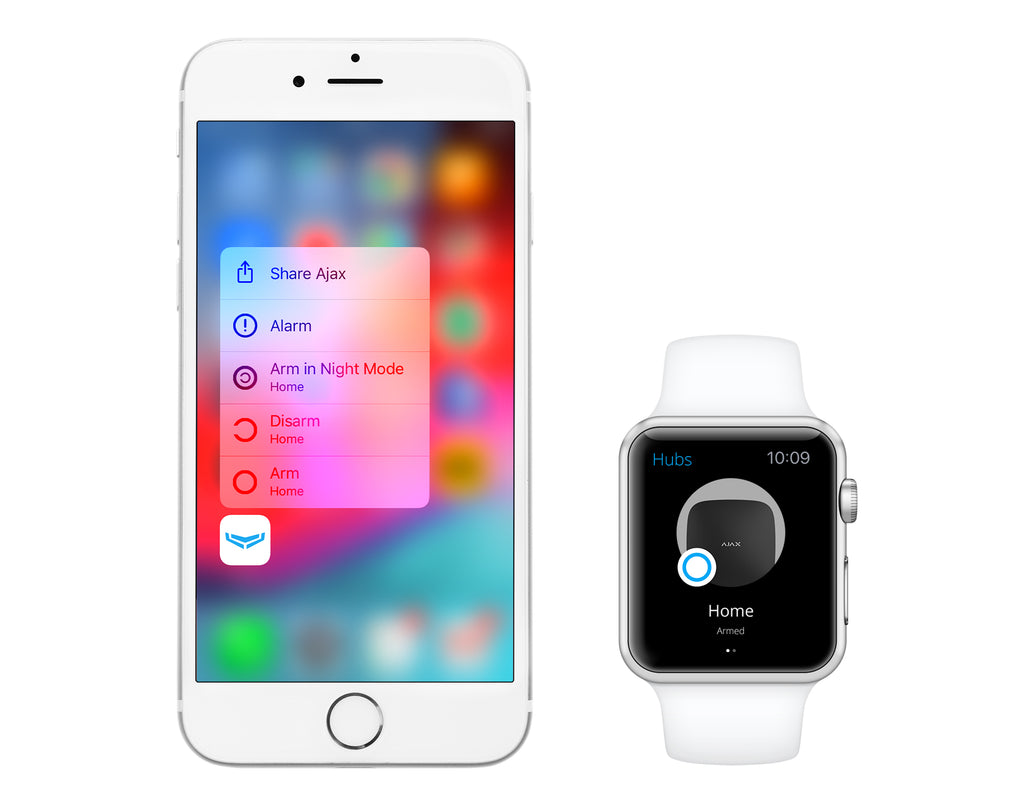

Is controlled using the mobile app, key pad and key fob

Principle of operation ⚙️

The sensing detectors detect human presence and opening of the window or door. The hub sends notification of an alarm to the Central Monitoring Station (if connected) and the system owner's smartphone.

Features 🚀

The capabilities of the camera starter kit are extended due to connecting fire detectorsflood detectorsautomation devices and video cameras.

Ajax DoorProtect

Installation and set up 👨‍🔧

The devices are installed within 30 minutes. The detectors are connected and set up using the mobile app and then mounted on the SmartBracket that comes with the kit.






Ajax Street Siren


Specifications 🤓

HUB 2 Plus Control Panel
Security system control panel with four in-built channels for external communication and support of detectors with photo cameras
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Communication:  2G (GSM900/DCS1800 (B3/B8)) / 3G (WCDMA 850/900/2100 (B1/B5/B8)) / LTE (FDD B1/B3/B5/B7/B8/B20) / Wi-Fi (802.11 b/g/n) / Ethernet
Maximum devices: 200.
Maximum groups: 25.
Scenarios: 64
Number of users: Up to 200 users.
Housing material: ABS plastic.
Power supply:110-240 V from mains
Battery: Built-in back-up battery: Li-Ion 3 Аh (up to 15 hours of autonomous work when Ethernet or Wi-Fi channels are disabled)
Temp. Operation: -10 ° C ~ +40 ° C.
Dimensions: 163 x 163 x 36 mm.
Weight 351 g.

MotionCam
Wireless motion detector with a photo camera to verify alarms.
Sensing element: PIR sensor
Compatibility: only with Hub 2  and Hub 2 Plus
Photo verification: time to deliver a photograph with default settings: up to 9 sec
Photo quality: up to 640 × 480
Pictures in a series: 1-5 pcs
IR backlight for night mode pictures: available
Detection field: 12 m / H: 88.5º / V: 80º / Installation 2.4 m.
Pet immunity: ≤ 20 kg, ≤ 50 cm.
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Transmission distance: ≤ 1700 m (in open space).
Sensitivity: Adjustable. 3 levels (low, medium and high).
Indication LEDs: Alarm, tamper, signal.
Battery: 2 batteries CR123A 3.0 V ( up to 4 years, up to 2.5 years if “Delay when entering” setting is activated).
Temp. Operation: 0 ° C ~ +40 ° C.
Housing material: ABS plastic.
Dimensions (without stand): 135 x 70 x 60 mm.
Weights: 167 g.

DoorProtect
Wireless Magnetic Door Detector.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 1 battery CR123A 3.0 V (approximately 7 years).
Housing material: ABS plastic.
Dimensions: 90 mm (Fo) x 20 (Ø) mm.
Weights: 29 g.

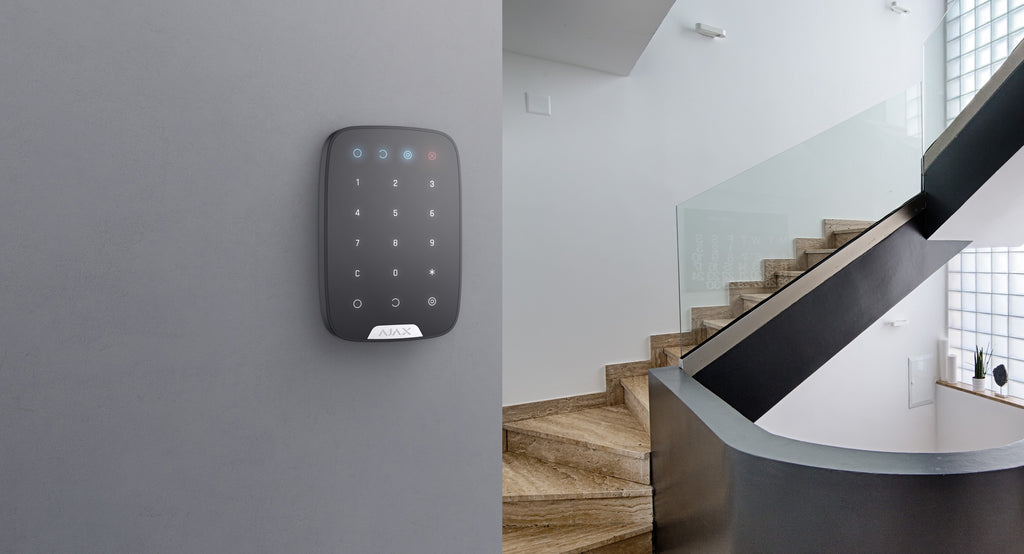

KeyPad
Two-Way Wireless Touch KeyPad.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 4 AAA batteries 3.0 V (up to 2 years).
Temp. Operation: -10º C ~ +50º C.
Housing material: ABS plastic.
Dimensions: 150 x 102.5 x 13.2 mm.
Weight: 172 g.

Street Siren
Wireless siren with the sound volume up to 113 dB.
Transmission distance: ≤ 1500 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 4 batteries CR123A 3.0 V (approximately 5 years).
Temp. Operation: -25º C ~ +60º C.
Dimensions: 200 x 200 x 51 mm.
Weight: 502 g.

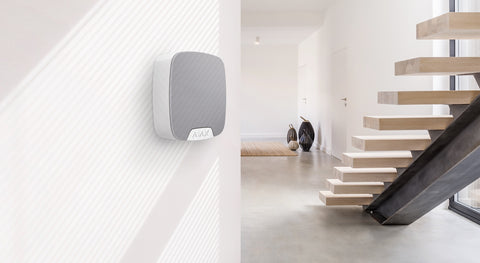

Indoor Siren
Wireless siren with the sound volume up to 105 dB.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 2 batteries CR123A 3.0 V (approximately 5 years).
Temp. Operation: 0º C ~ +50º C.
Housing material: ABS plastic.
Dimensions: 75 x 75 x 27 mm.
Weight: 96 g.

Package includes  📦

- AJAX Hub 2 Plus - 1 pc. Manual
- AJAX Wireless MotionCam - 2 pc. Manual
- AJAX Wireless sensor for opening the door / window - 1 pc. Manual
- AJAX KeyPad - 1 pc. Manual
- AJAX Street Siren  - 1 pc. Manual
- AJAX Home Siren  - 1 pc. Manual
- Power Plug cable - 1 pc.
- Ethernet cable - 1 pc.
