| Assists in protecting the entrance from break-ins through windows and doors | Sends alarms to the owner's smartphone and Central Monitoring Station via GSM, WiFi and Ethernet |
Is controlled using the mobile app and key fob |

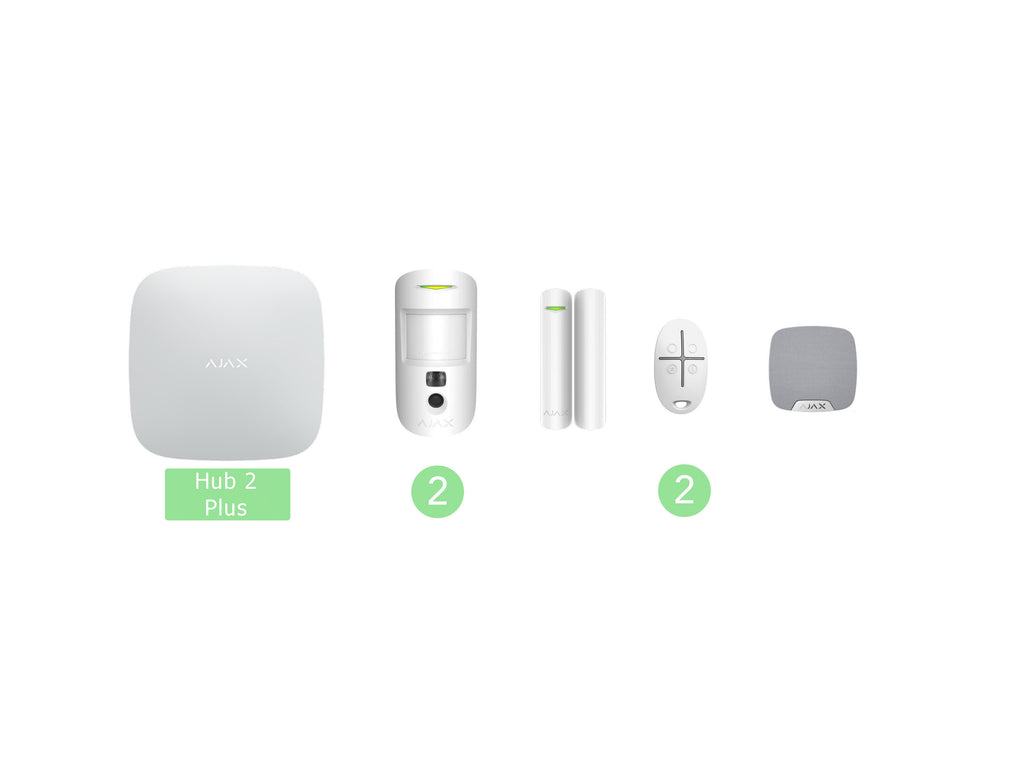

AJAX Camera Starter Kit 2 Plus consists of:
- 1x NEW Hub 2 Plus
- 2x Camera motion detectors
- 1x Opening detector
- 2x Key fobs with panic button
- 1x Home siren
The sensing detectors detect human presence and opening of the window or door. The hub sends notification of an alarm to the Central Monitoring Station (if connected) and the system owner's smartphone.
Features 🚀
The capabilities of the camera starter kit are extended due to connecting fire detectors, flood detectors, automation devices and video cameras.
Installation and set up 👨🔧

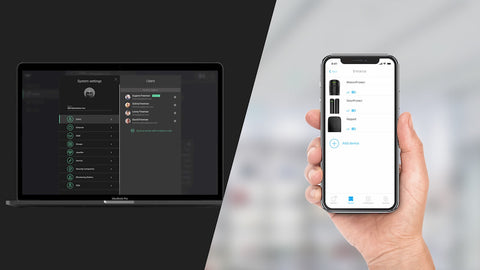

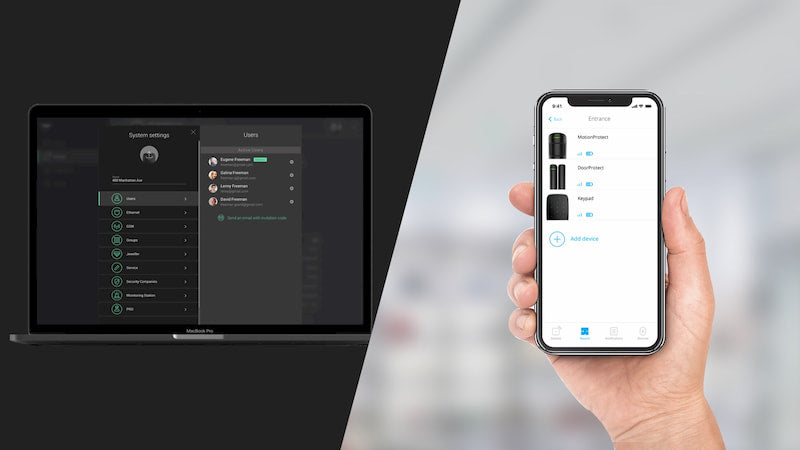

The devices are installed within 30 minutes. The detectors are connected and set up using the mobile app and then mounted on the SmartBracket that comes with the kit.
Specifications 🤓
HUB 2 Plus Control Panel
Security system control panel with four in-built channels for external communication and support of detectors with photo cameras
Communication: 2G (GSM900/DCS1800 (B3/B8)) / 3G (WCDMA 850/900/2100 (B1/B5/B8)) / LTE (FDD B1/B3/B5/B7/B8/B20) / Wi-Fi (802.11 b/g/n) / Ethernet
Maximum devices: 200.
Maximum groups: 25.
Scenarios: 64
Number of users: Up to 200 users.
Housing material: ABS plastic.
Power supply:110-240 V from mains
Number of users: Up to 200 users.
Housing material: ABS plastic.
Power supply:110-240 V from mains
Battery: Built-in back-up battery: Li-Ion 3 Аh (up to 15 hours of autonomous work when Ethernet or Wi-Fi channels are disabled)
Temp. Operation: -10 ° C ~ +40 ° C.
Dimensions: 163 x 163 x 36 mm.
Temp. Operation: -10 ° C ~ +40 ° C.
Dimensions: 163 x 163 x 36 mm.
Weight 351 g.
MotionCam
Wireless motion detector with a photo camera to verify alarms.
Sensing element: PIR sensor
Compatibility: only with Hub 2 and Hub 2 Plus
Photo verification: time to deliver a photograph with default settings: up to 9 sec
Photo quality: up to 640 × 480
Pictures in a series: 1-5 pcs
Photo quality: up to 640 × 480
Pictures in a series: 1-5 pcs
IR backlight for night mode pictures: available
Pet immunity: ≤ 20 kg, ≤ 50 cm.
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Transmission distance: ≤ 1700 m (in open space).
Sensitivity: Adjustable. 3 levels (low, medium and high).
Indication LEDs: Alarm, tamper, signal.
Battery: 2 batteries CR123A 3.0 V ( up to 4 years, up to 2.5 years if “Delay when entering” setting is activated).
Temp. Operation: 0 ° C ~ +40 ° C.
Housing material: ABS plastic.
Dimensions (without stand): 135 x 70 x 60 mm.
Weights: 167 g.
DoorProtect
DoorProtect
Wireless Magnetic Door Detector.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 1 battery CR123A 3.0 V (approximately 7 years).
Housing material: ABS plastic.
Dimensions: 90 mm (Fo) x 20 (Ø) mm.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 1 battery CR123A 3.0 V (approximately 7 years).
Housing material: ABS plastic.
Dimensions: 90 mm (Fo) x 20 (Ø) mm.
Weight: 29 g.

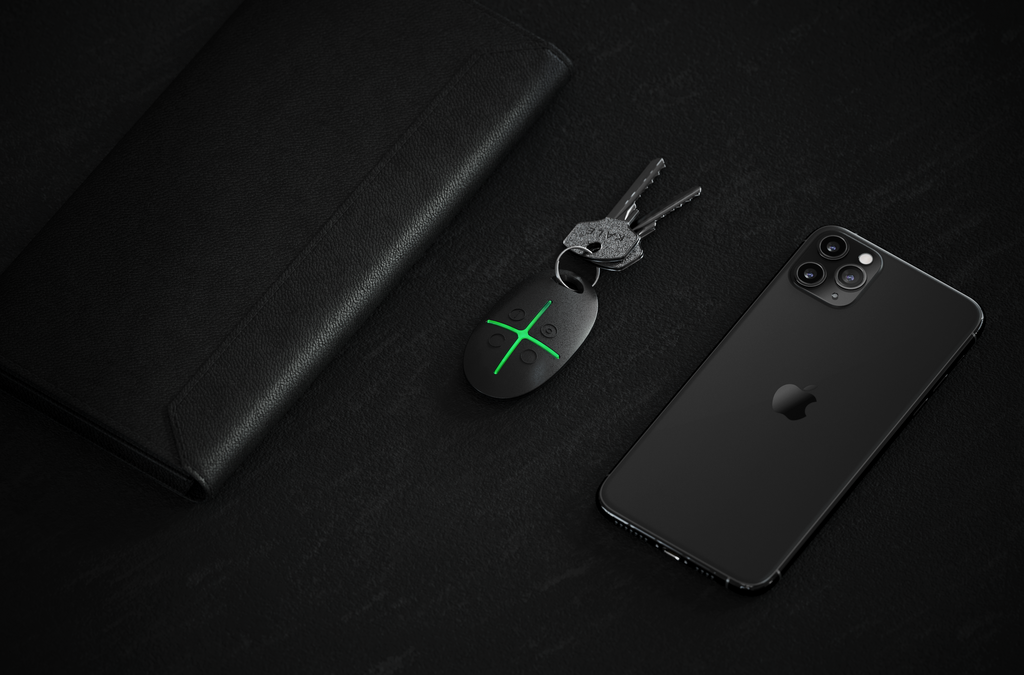

SpaceControl
Two-Way Wireless Key Fob.
Transmission distance: ≤ 1300 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 1 battery CR2032A 3.0 V (approximately 5 years).
Temp. Operation: -20º C ~ +50º C.
Housing material: ABS plastic.
Dimensions: 65 x 37 x 10 mm.
Transmission distance: ≤ 1300 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 1 battery CR2032A 3.0 V (approximately 5 years).
Temp. Operation: -20º C ~ +50º C.
Housing material: ABS plastic.
Dimensions: 65 x 37 x 10 mm.
Weight: 13 g.

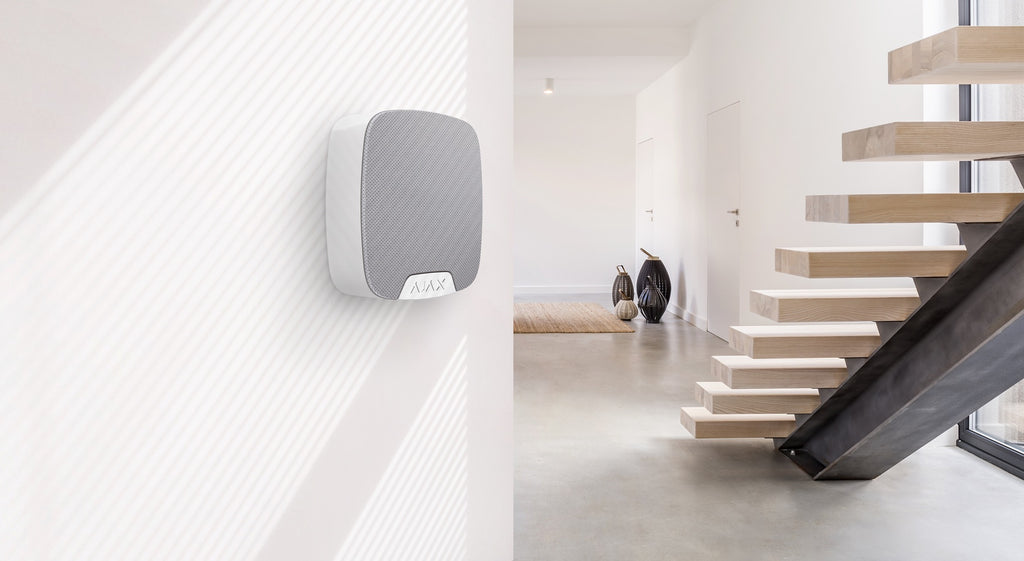

Indoor Siren
Wireless siren with the sound volume up to 105 dB.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 2 batteries CR123A 3.0 V (approximately 5 years).
Temp. Operation: 0º C ~ +50º C.
Housing material: ABS plastic.
Dimensions: 75 x 75 x 27 mm.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 2 batteries CR123A 3.0 V (approximately 5 years).
Temp. Operation: 0º C ~ +50º C.
Housing material: ABS plastic.
Dimensions: 75 x 75 x 27 mm.
Weight: 96 g.
Package includes 📦
