AJAX Camera Starter Kit 2

  • SALE

In order to see prices please

or


AJAX Camera Starter Kit 2 consists of:
- 1x NEW Hub 2
- 2x Camera motion detectors
- 1x Opening detector
- 2x Key fobs
with panic button
- 1x Home siren

Assists in protecting the entrance from break-ins through windows and doors
Sends alarms to the owner's smartphone and Central Monitoring Station via GSM and Ethernet

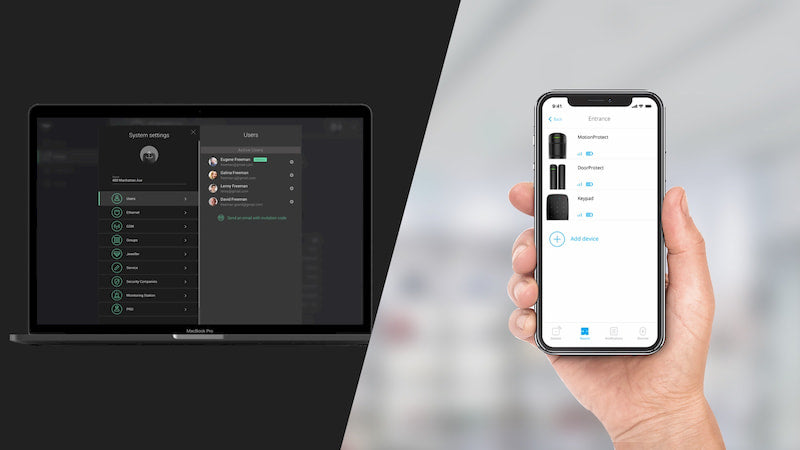

Is controlled using the mobile app and key fob

Principle of operation ⚙️

The sensing detectors detect human presence and opening of the window or door. The hub sends notification of an alarm to the Central Monitoring Station (if connected) and the system owner's smartphone.

Features 🚀

The capabilities of the camera starter kit are extended due to connecting fire detectorsflood detectorsautomation devices and video cameras.

Ajax DoorProtect

Installation and set up 👨‍🔧

The devices are installed within 30 minutes. The detectors are connected and set up using the mobile app and then mounted on the SmartBracket that comes with the kit.




Specifications 🤓

HUB 2 Control Panel
Wireless Security Control Panel.
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Communication: Ethernet / GPRS 850/900/1800/1900 MHz.
Maximum devices: 100.
Maximum groups: 9.
Number of users: Up to 50 users.
Housing material: ABS plastic.
Power supply: 110-240 V from mains or 12 V when using 12V PSU for Hub 2
Battery:  Built-in back-up battery: Li-Ion 2 Аh (up to 16 hours)
Temp. Operation: -10 ° C ~ +40 ° C.
Dimensions: 163 x 163 x 36 mm.
Weight 362 g.

MotionCam
Wireless motion detector with a photo camera to verify alarms.
Sensing element: PIR sensor
Compatibility: only with Hub 2 and Hub 2 Plus
Photo verification: time to deliver a photograph with default settings: up to 9 sec
Photo quality: up to 640 × 480
Pictures in a series: 1-5 pcs
IR backlight for night mode pictures: available
Detection field: 12 m / H: 88.5º / V: 80º / Installation 2.4 m.
Pet immunity: ≤ 20 kg, ≤ 50 cm.
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Transmission distance: ≤ 1700 m (in open space).
Sensitivity: Adjustable. 3 levels (low, medium and high).
Indication LEDs: Alarm, tamper, signal.
Battery: 2 batteries CR123A 3.0 V ( up to 4 years, up to 2.5 years if “Delay when entering” setting is activated).
Temp. Operation: 0 ° C ~ +40 ° C.
Housing material: ABS plastic.
Dimensions (without stand): 135 x 70 x 60 mm.
Weights: 167 g.

DoorProtect
Wireless Magnetic Door Detector.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 1 battery CR123A 3.0 V (approximately 7 years).
Housing material: ABS plastic.
Dimensions: 90 mm (Fo) x 20 (Ø) mm.
Weight: 29 g.

SpaceControl
Two-Way Wireless Key Fob.
Transmission distance: ≤ 1300 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 1 battery CR2032A 3.0 V (approximately 5 years).
Temp. Operation: -20º C ~ +50º C.
Housing material: ABS plastic.
Dimensions: 65 x 37 x 10 mm.
Weight: 13 g.

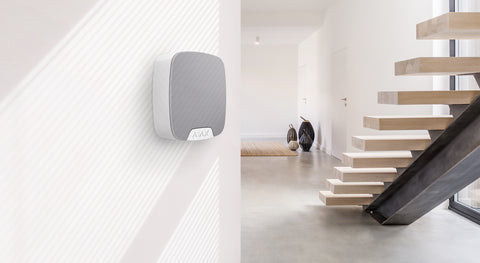

Indoor Siren
Wireless siren with the sound volume up to 105 dB.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 2 batteries CR123A 3.0 V (approximately 5 years).
Temp. Operation: 0º C ~ +50º C.
Housing material: ABS plastic.
Dimensions: 75 x 75 x 27 mm.
Weight: 96 g.

Package includes  📦

-  AJAX Hub 2 - 1 pc.
AJAX Wireless MotionCam - 2 pc. Manual
AJAX Wireless sensor for opening the door / window - 1 pc. Manual
AJAX SpaceControl remote control - 2 pc. Manual
AJAX Home Siren  - 1 pc. Manual
- Power Plug cable - 1 pc.
- Ethernet cable - 1 pc.
