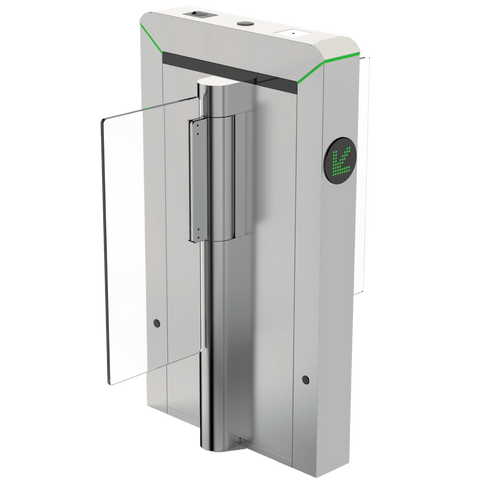

ZKTeco TS-MARS-S120-SS-900

Tax included. Shipping calculated at checkout.

Quantity

Features 🚀

ZKTeco
Bi-directional two-gantry double motorized gate lathe
Automatic movement of the acrylic barrier in the walking direction
Brushless brushed motor
Passage width of 900 mm with compact units
Suitable for access by persons with reduced mobility
Led indicator
Emergency mode
Main board for Turnstile configuration (opening times, counter, relay inputs) with display
Secondary board for connection to main board
Made of stainless steel SUS304 and acrylic barriers
Configuration Modes: one-way or two-way, free passage in one or two directions
Compatible with third-party Plug & Play Access Control systems
Ergonomic design
Universal covers for card readers
Each unit adds an additional aisle to ZKTeco TS-MARS-S120-SS-900

Brand	ZKTeco
Model	TS-MARS-S120-SS
Controller	Winch control board with display compatible with any Access Control system
Led indicator	LED status indicator
Barrier movement	Opening angle of the acrylic barrier in the direction of travel (entry or exit)
Emergency mode	Emergency barrier opening with fire signal Automatic barrier opening in case of power failure
Security	Anti-tailgating configurable with sound and shutdown
Compatibility	Integrates with any third party Plug & Play Access Control / Universal caps for RFID readers
Configuration Modes	One or two directions / Free passage in one direction and Access Control in the opposite direction
Manufacturing material	Stainless steel SUS304 and PC caps Acrylic doors
Passage speed	25 persons/minute
Infrared sensor	4 infrared sensor pairs
Reliability	Brushless brushed motor 5.000.000 of cycles
Power	AC 110/220 V / 50 W max.
Temp. operation	-28 ºC ~ +60 ºC

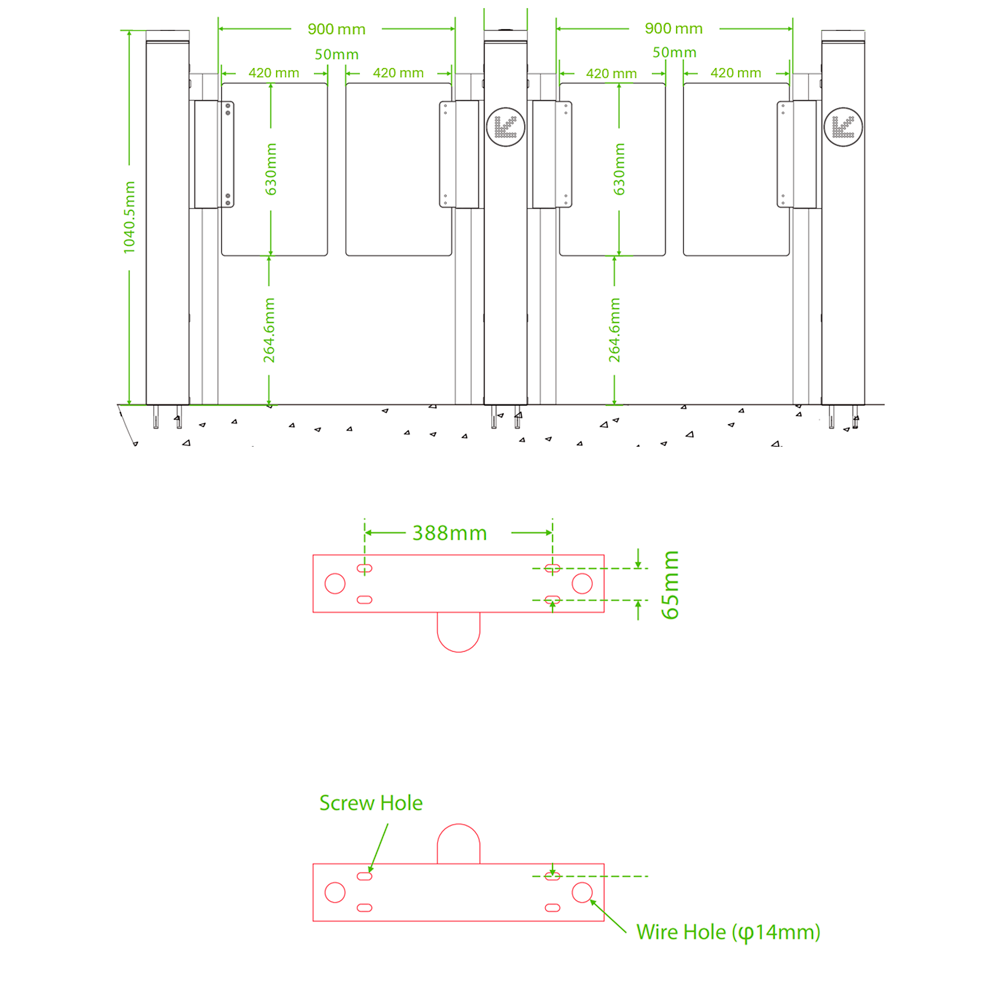

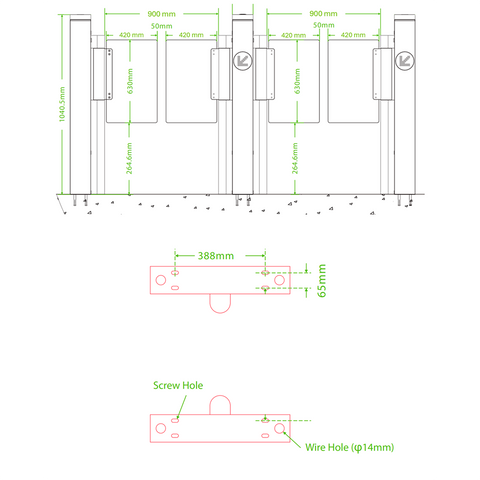

Lane Width	900 mm (intermediate lathe, size 450 mm)
Dimensions of pass	900 (W) x 600 (D) mm (suitable for persons with reduced mobility)
Dimensions	1020 (H) x 120 (W) x 600 (D) mm
Weight	30 kg
Protection	Interior
