Features 🚀
The UTi712S is a professional thermal imaging camera designed for advanced thermal inspections in industrial, electrical, and predictive maintenance environments. Thanks to its high thermal resolution and wide measurement range, it can accurately identify hot spots, overloads, energy losses, and thermal anomalies that could lead to equipment failures or operational malfunctions.
It is specifically designed for industrial maintenance, electrical installations, photovoltaic energy, HVAC, building inspections, and machinery diagnostics. It is a very useful tool for identifying faulty connections, imbalances in electrical panels, malfunctions in solar panels, and problems with motors and HVAC systems, enabling preventive maintenance before issues arise. The UTi712S series stands out within the UNI-T lineup for its professional approach and high-quality thermal imaging.
- Portable Thermographic Camera
- Real-time temperature measurement
- Thermal resolution 120x90
- NETD ≤60mK
- Accuracy ±2ºC or ±2%
- Temperature measurement range -20º ~ 400ºC -Display resolution 320x240
- Possibility of installation on tripod - PC software monitoring with alarm events
Specifications 🤓
| Thermal sensor | 120x90 Vox |
| Field of view (thermal) | 50º x 38º |
| Accuracy | ± 2ºC or ±2% |
| Thermal sensitivity (NETD) | ≤ 60mK |
| Spectral range | 8~14um |
| Intelligent functions | Temperature measurement |
| Measurement Range | -20ºC ~ 400ºC |
| Usage Modes | Center point, Maximum and minimum temperature measurement, ROI function |
| Image Modes | Thermal |
| Image captures | Manual (trigger) / Automatic (in case of alarm) |
| Internal memory | Micro SD card up to 16 GB (included) |
| Light / Flashlight | Manual activation / Activation due to increase or decrease in temperature |
| Notification | Sound: Buzzer on the device itself or PC software / Visual: On the camera display or in PC software |

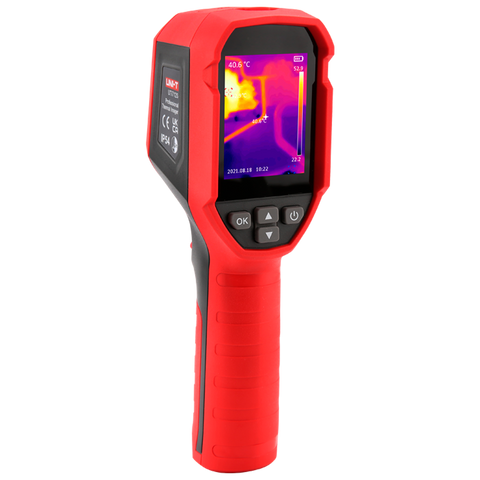

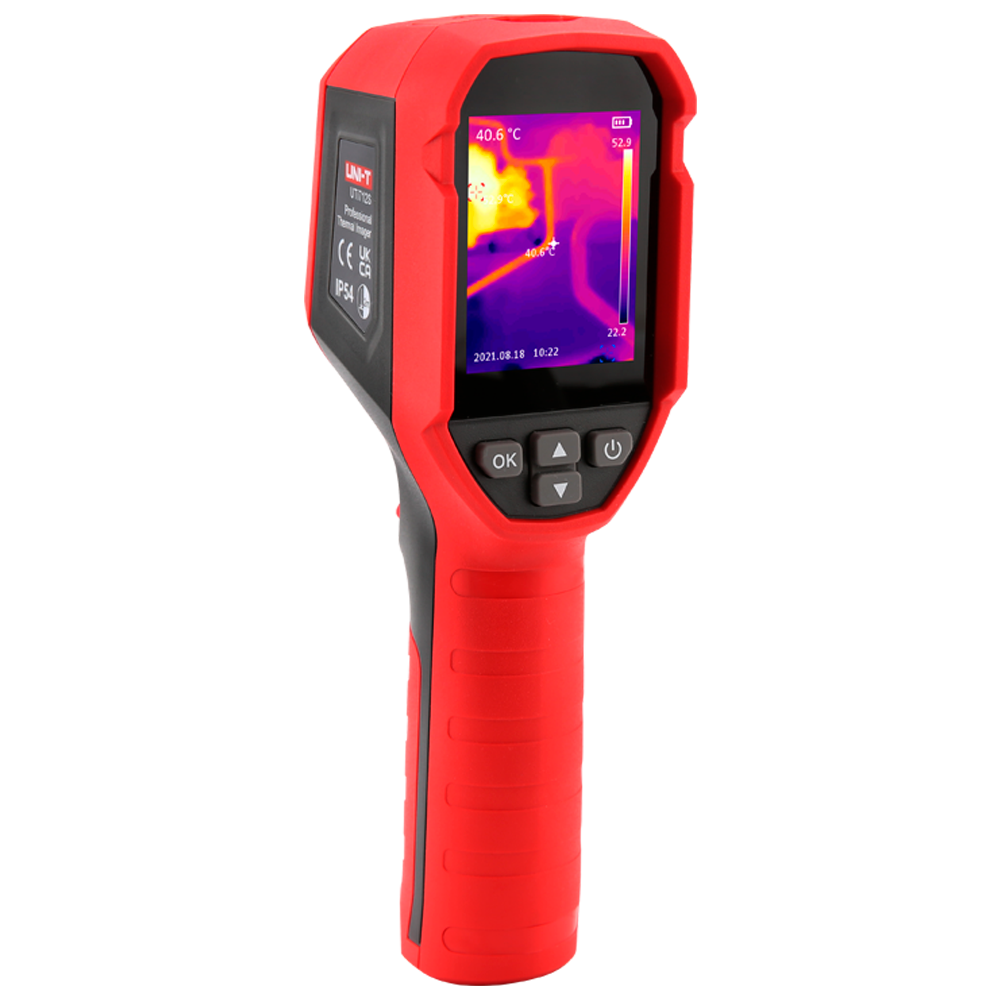

| Display | 2.4" TFT LCD Display (320x240) |
| PC Software | Live Image, Event History, Audible Alarm Notification |
| Installation | Tripod (Not included) or handheld |

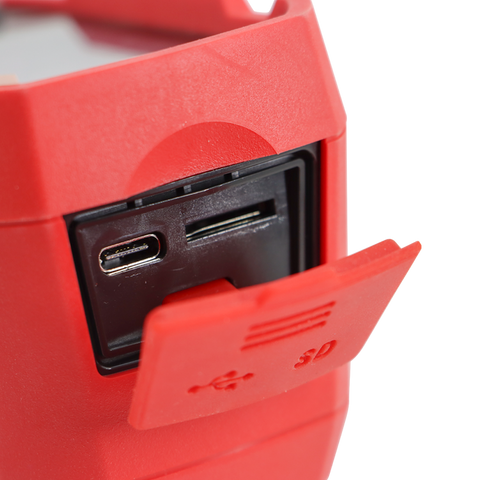

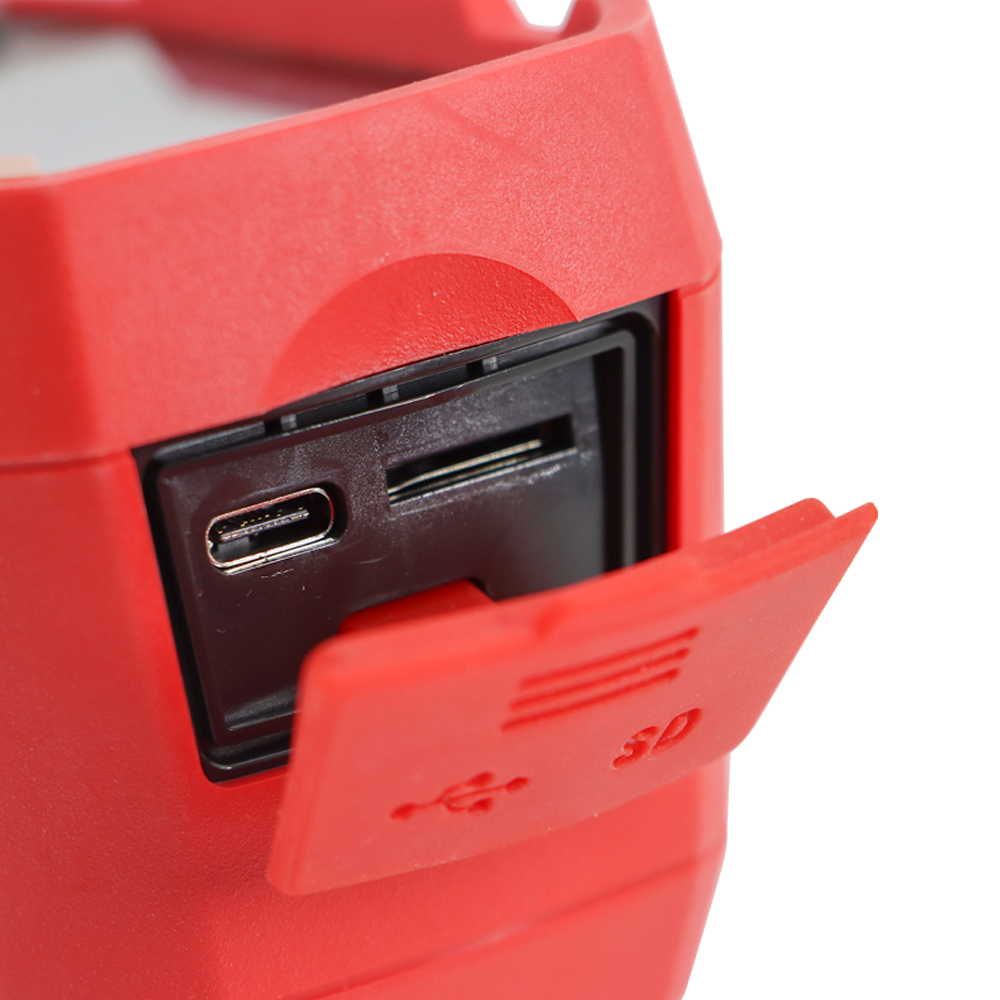

| Communication | USB Type C (for battery charging) |
| Languages | Spanish, English, Portuguese, Italian, German, French, Chinese |
| Power supply | Lithium Battery 3.6V / 5000mAh Rechargeable |
| Battery duration | 8 hours |
| Temp. operation | -20º C ~ + 60º C |
| Degree of protection | IP54 |
| Dimensions | 60 (D) x 197 (H) x 72 (W) mm |
| Weight | 310 g |
Package includes 📦
- Portable Thermographic Camera
- User instructions
- USB cable type C
- 16GB MicroSD card
