Features 🚀

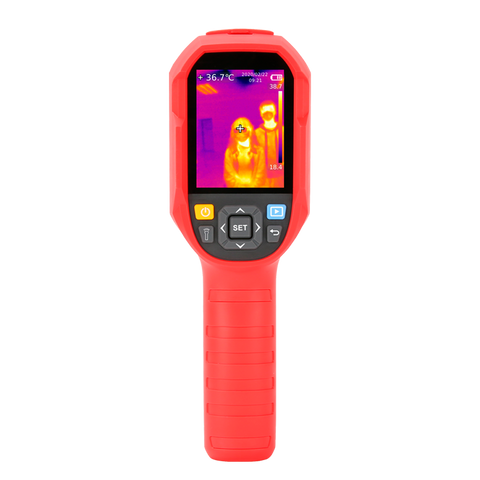

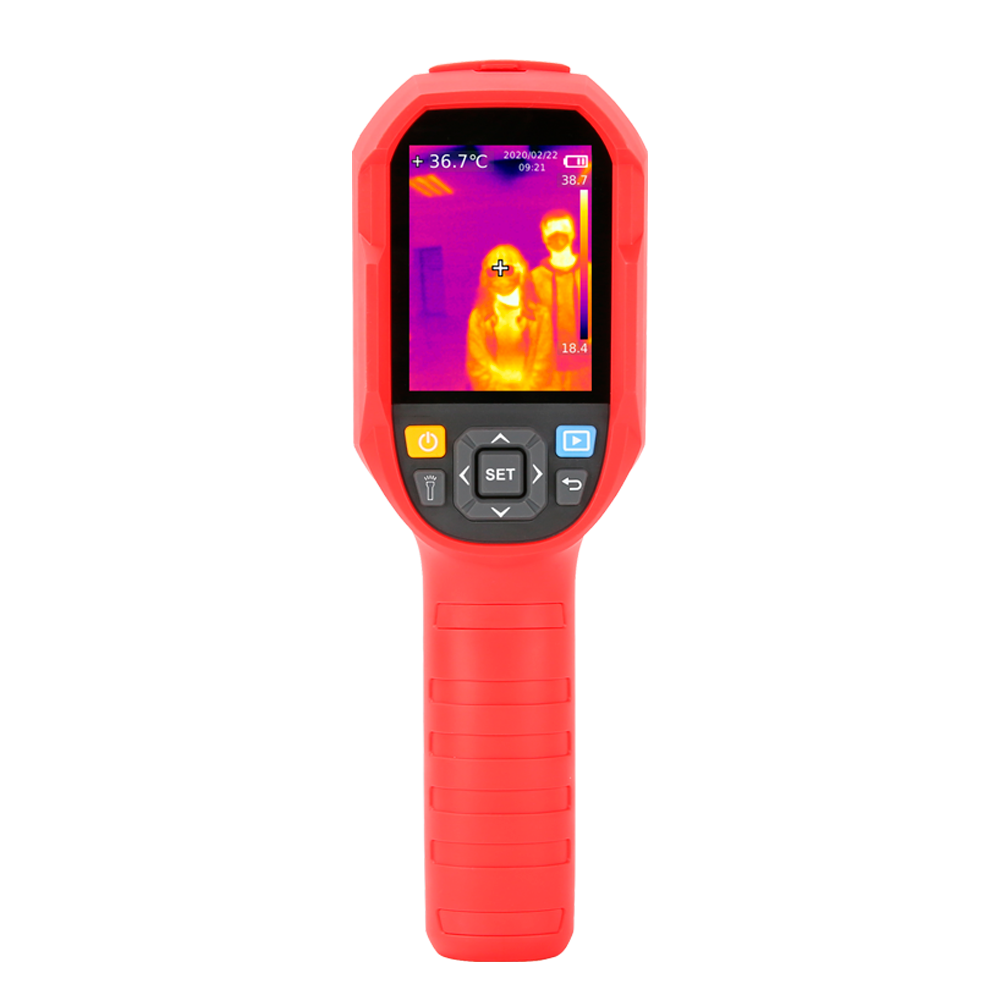

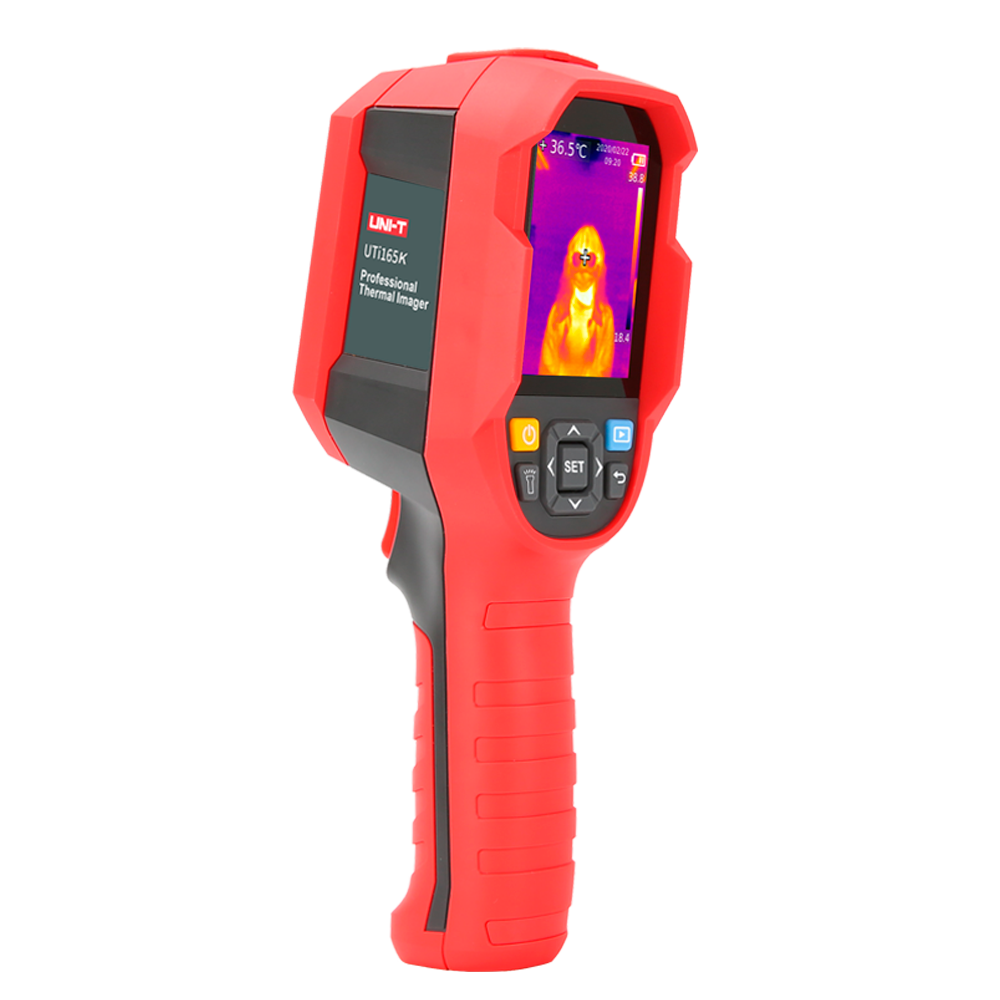

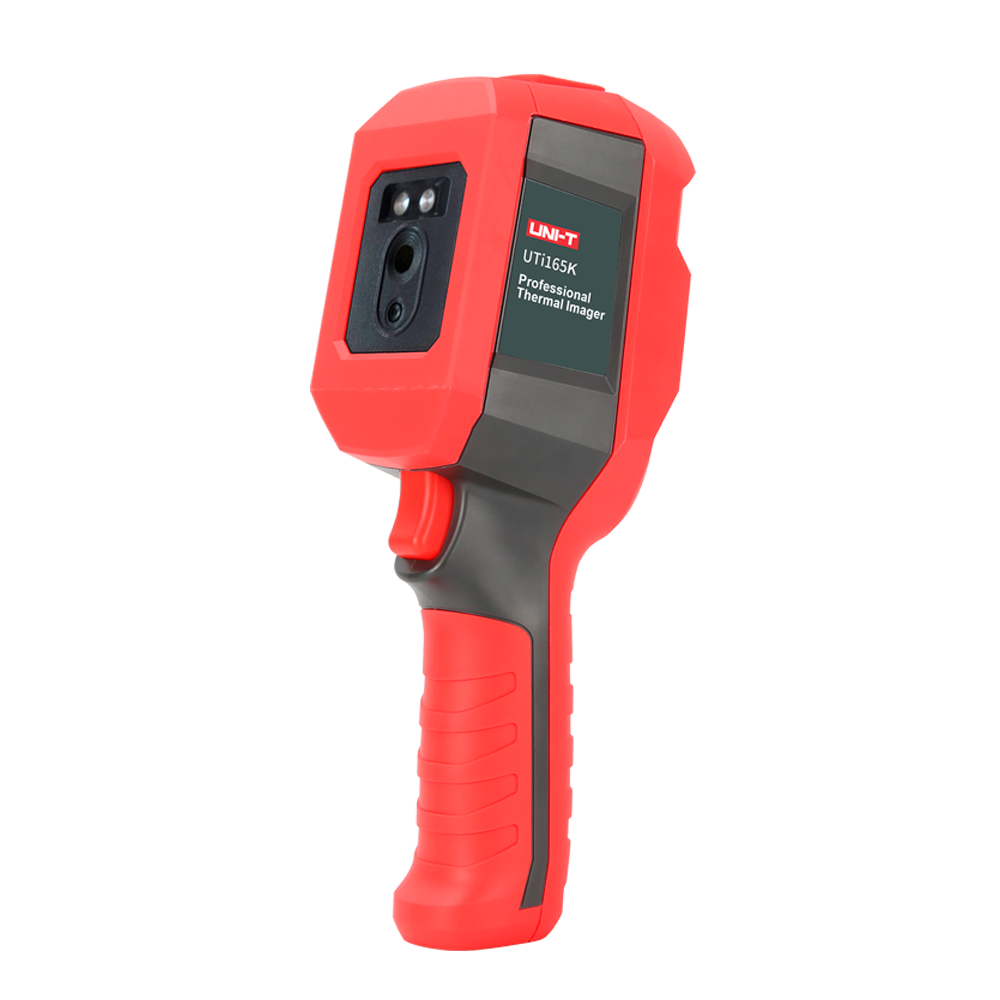

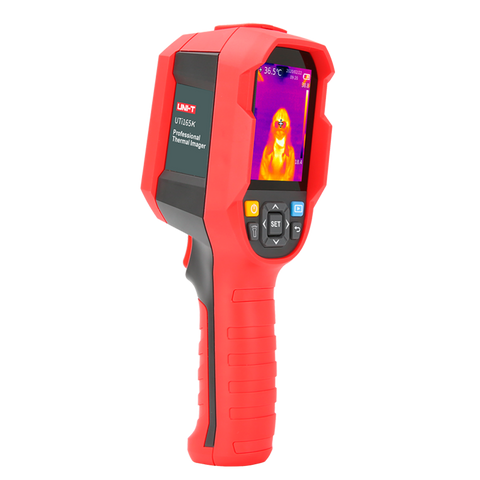

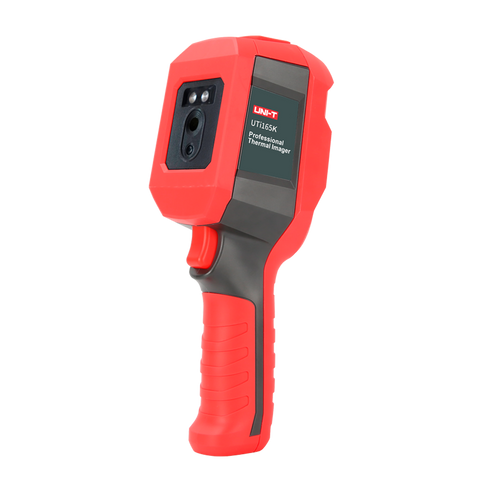

The UTi165K is a high-performance professional thermal imaging camera designed for advanced thermal inspection of electrical installations, mechanical systems, buildings, and industrial infrastructure. Its high thermal resolution allows for the precise detection of temperature differences, facilitating the early identification of anomalies, hot spots, and energy losses.
It is specifically designed for industrial maintenance, photovoltaic energy, electrical installations, HVAC, building inspections, and preventive diagnostics. It is very useful for identifying faulty connections, overloads in electrical panels, malfunctions in solar panels, and problems with motors and HVAC systems, allowing you to take action before breakdowns or service outages occur. The K version stands out for its inclusion of accessories and features designed for intensive professional inspection.
- Handheld Thermographic Dual Camera
- Real-time temperature measurement
- Thermal resolution 160x120
- NETD ≤50mK
- Accuracy ±0.5ºC
- Temperature measuring range 30º~45ºC
- Over-temperature light
- Display 2.8”LCD

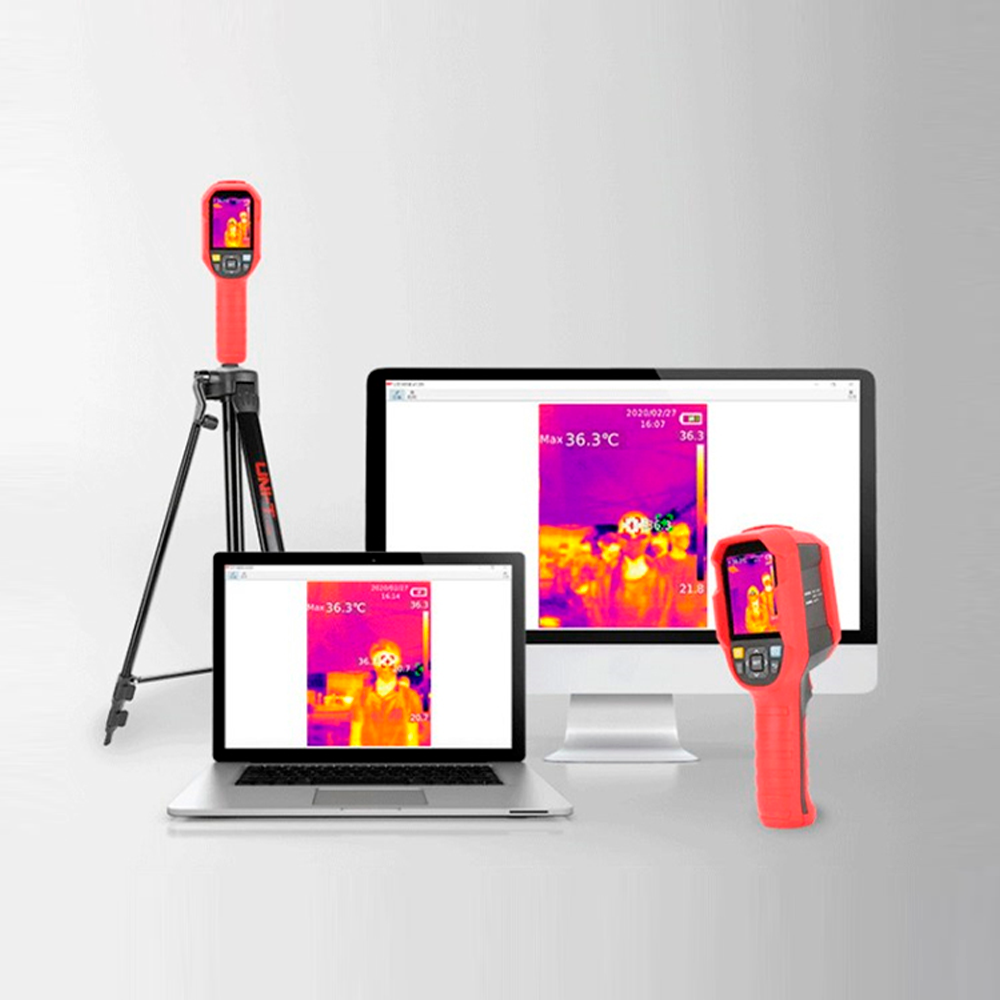

- Tripod installation - Monitoring in PC Software with alarm events
Specifications 🤓
| Thermal sensor | 160x120 |
| Field of view (thermal) | 35º x 26º |
| Accuracy | ± 0.5ºC |
| Thermal sensitivity (NETD) | ≤50mK |
| Intelligent functions | Temperature measurement |
| Measurement Range | 30º~45ºC |
| Usage Modes | Center point, Maximum and minimum temperature measurement, ROI function |
| Image Modes | Thermal, Visible, Display fusion of thermal view and optical view (Adjustable with 0%, 25%, 50%, 75% and 100%) |
| Image captures | Manual (trigger) / Automatic |
| Internal memory | Micro SD card up to 32 GB (included from 16GB)) |
| Light / Flashlight | Manual activation / Activation due to increase or decrease in temperature |
| Display | TFT display 2.8" LCD / From external monitor via PC |
| Communication | USB Type C (for battery charging and PC connection for monitoring) |
| PC Software | Live Image, Event History, Audible Alarm Notification |
| Installation | Tripod (Not included) or handheld |
| Power supply | Lithium Battery 3.7V / 5000mAh Rechargeable |
| Battery duration | 6 hours |
| Degree of protection | IP65 |
| Dimensions | 86(D) x 236(W) x 75.5(H)mm |
| Weight | 910 g |

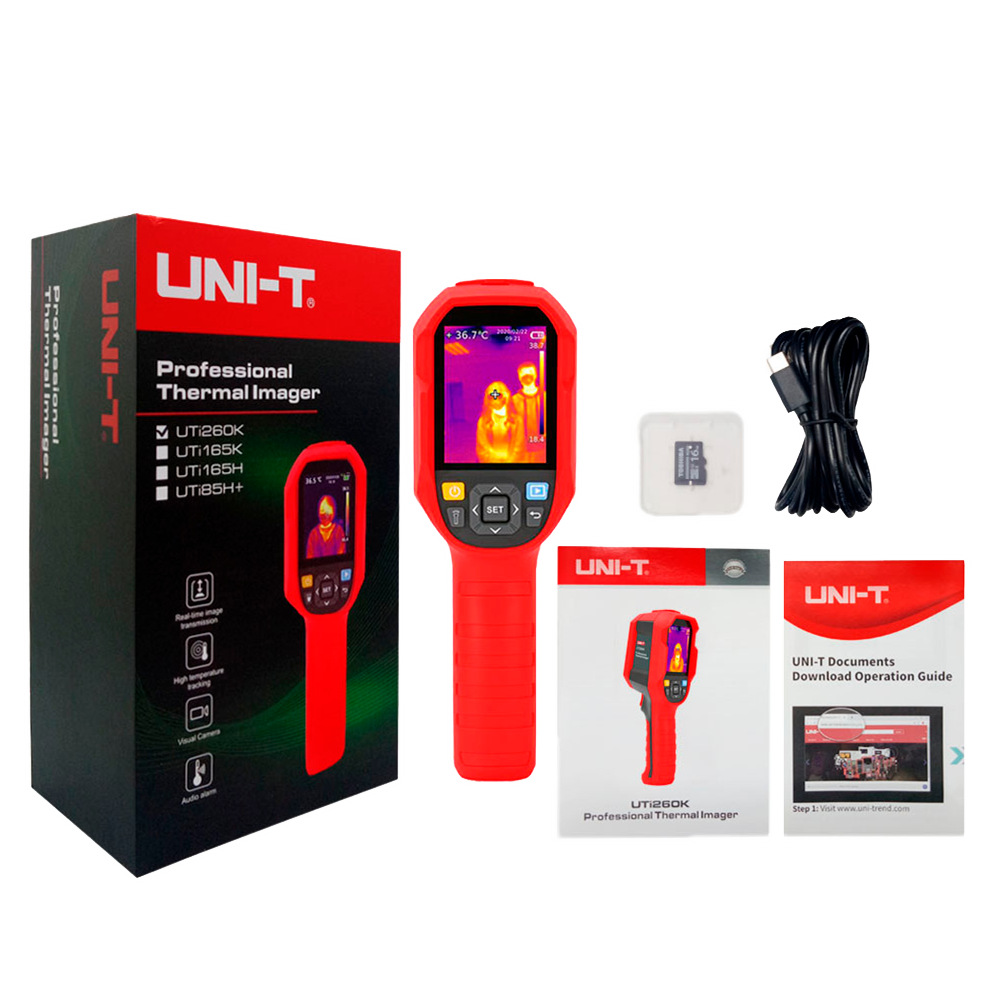

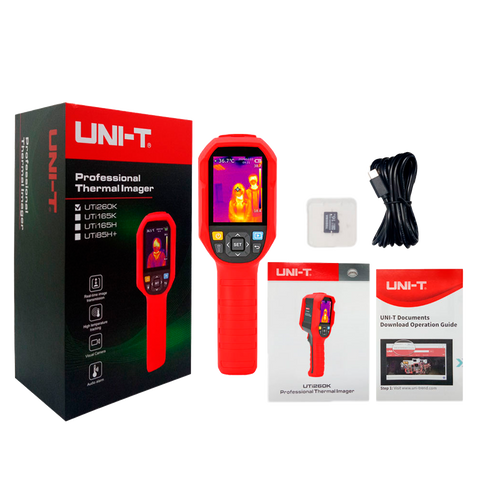

Package includes 📦
- Portable Thermographic Camera
- User instructions
- USB cable type C
- 16GB MicroSD card
