Features 🚀

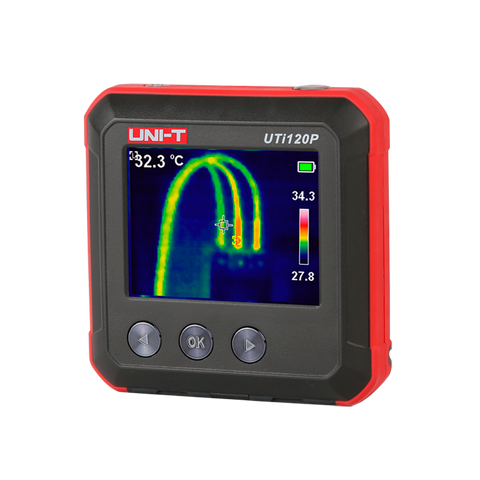

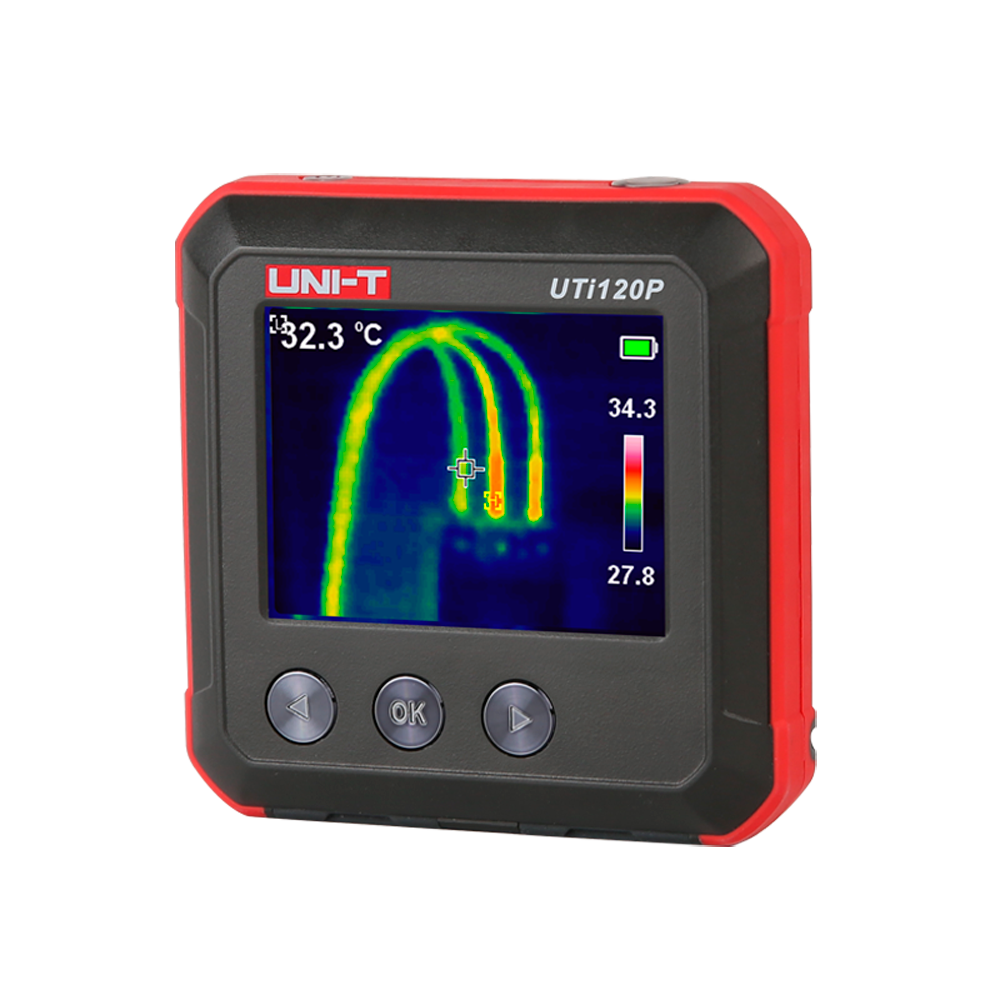

The UTi120P is a compact thermal imaging camera designed for thermal inspection of electrical installations, mechanical equipment, and buildings. Thanks to its compact size and ease of use, it allows users to view temperature differences in real time and quickly identify thermal anomalies that might go unnoticed with conventional inspection methods.
It is specifically designed for electrical installers, industrial maintenance, photovoltaic energy, HVAC, telecommunications, and electronic security. It is a very useful tool for detecting faulty connections, overloads, hot spots in electrical panels, solar panel malfunctions, energy losses, and equipment issues before they cause breakdowns or service interruptions.
- Uni-T
- Pocket Thermal Camera
- Real-time temperature measurement
- Thermal resolution 120x90
- NETD ≤60mK
- Accuracy ±2ºC
- Temperature measuring range -20º ~ 400ºC
- PC Software Monitoring
Specifications 🤓
| Thermal sensor | 120x90 |
| Field of view (thermal) | 50º x 38º |
| Accuracy | ± 2ºC or ±2% |
| Thermal sensitivity (NETD) | ≤ 60mK |
| Field of view (FOV) | 50°×38° |
| Measurement Range | -20º ~ 400ºC |
| Image Modes | Thermal, Fusion (with smartphone camera), PIP |
| Image captures | Photographs or videos |
| Storage | MicroSD up to 32GB |
| Display | Through the display |
| Communication | Micro USB |
| PC Software | Yes |
| Power supply | Lithium battery 3.7V 1300mAh |
| Autonomy | ≥3.5 |
| Dimensions | 76 (H) x 76 (W) x 24 (D) mm |
| Weight | 125 g |
Package includes 📦
- Portable Thermographic Camera
- User instructions
