Features 🚀

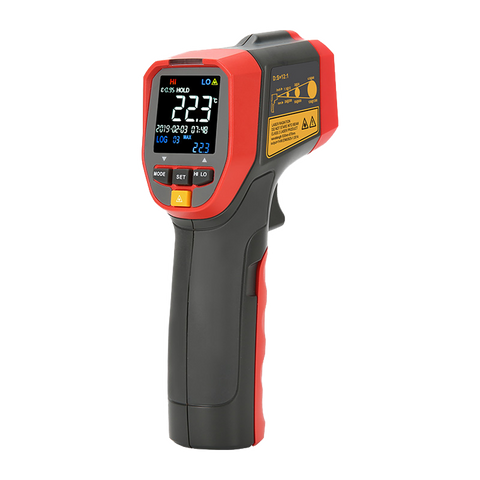

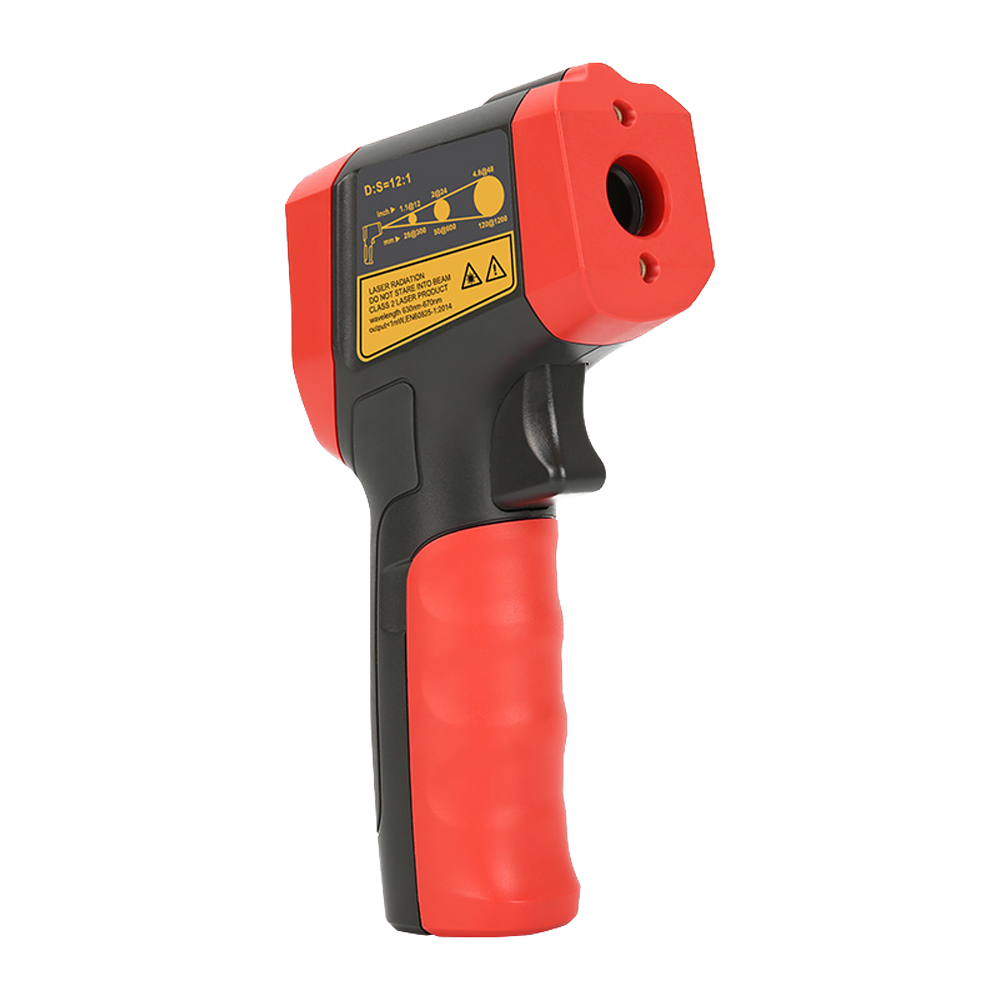

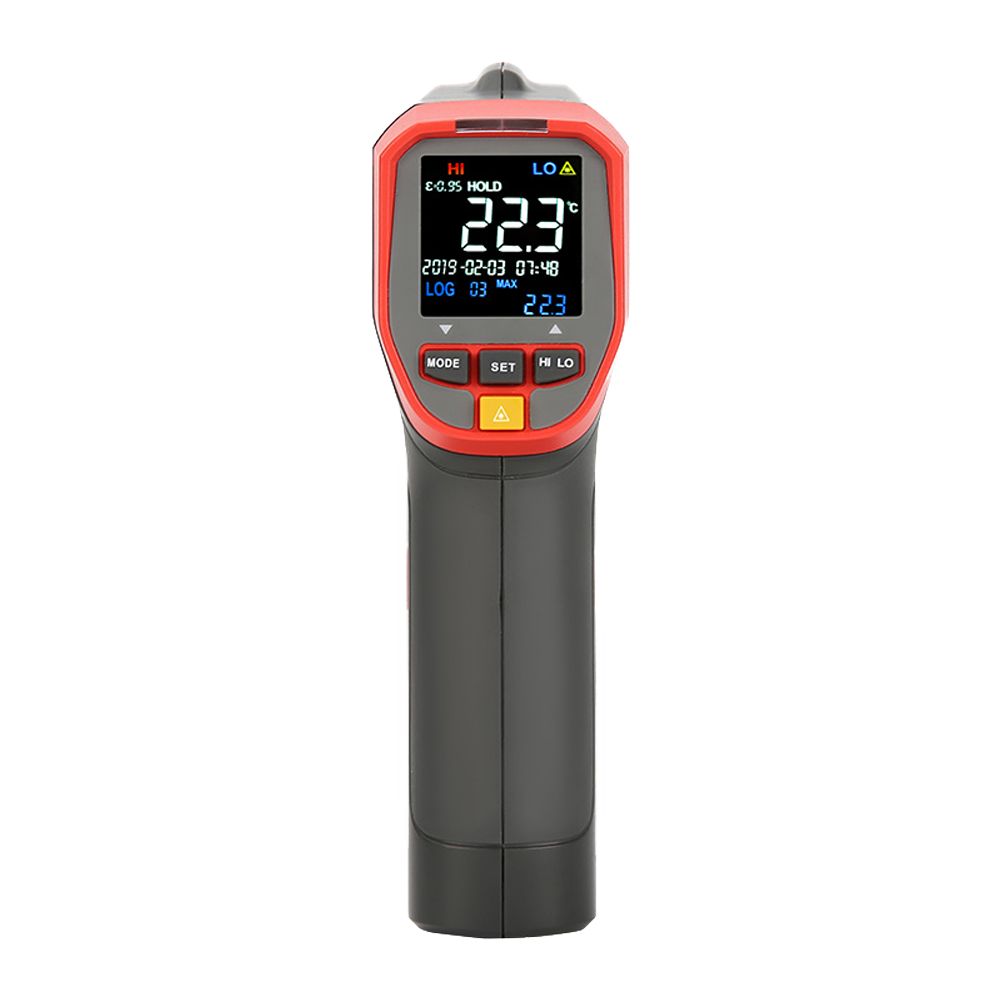

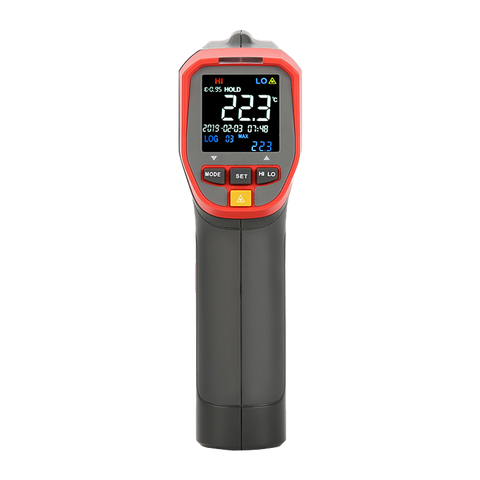

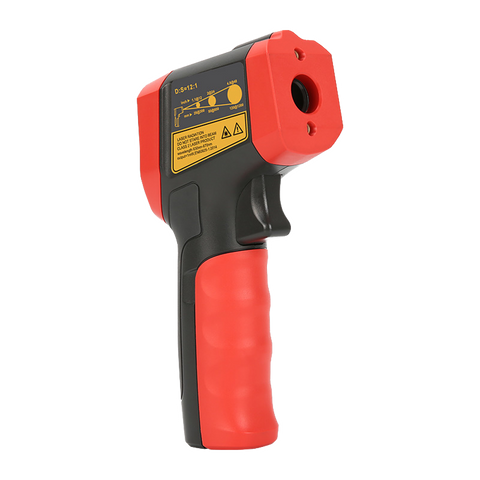

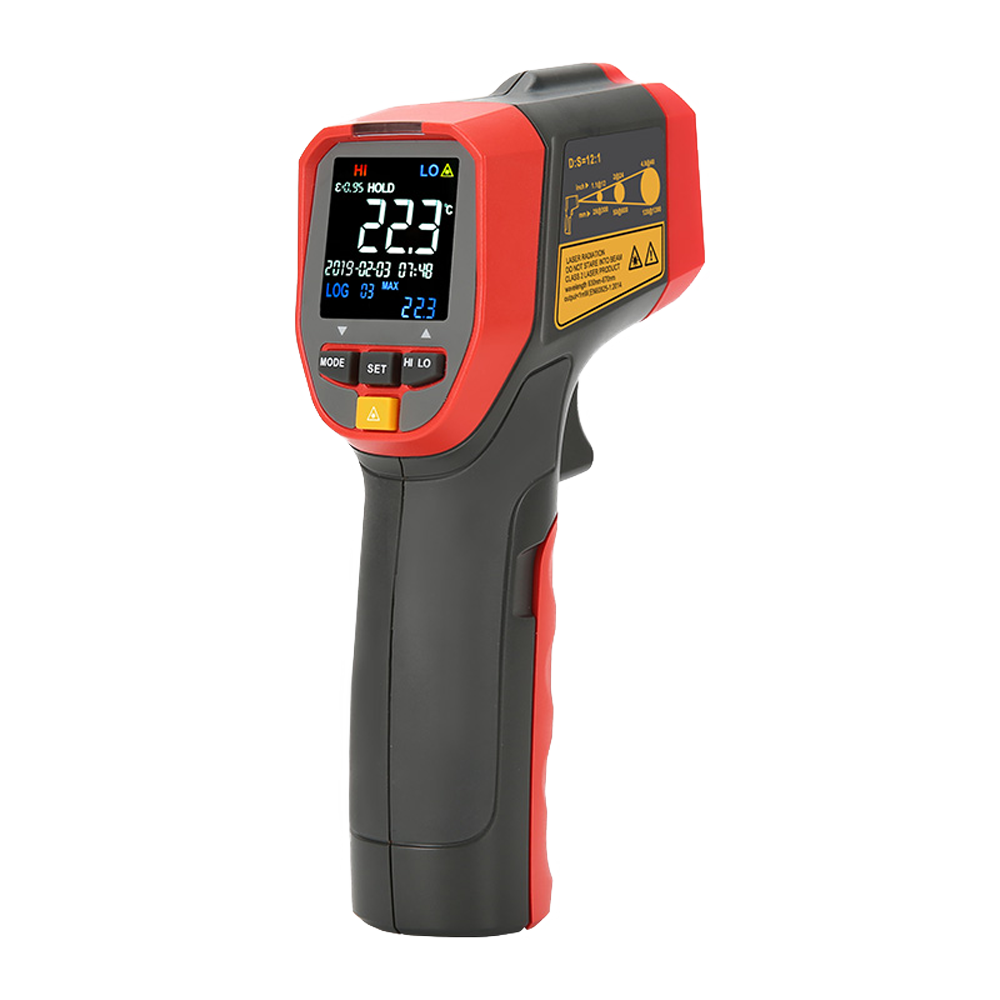

The UT301C+ is a high-precision professional infrared thermometer designed for non-contact temperature measurement in industrial, electrical, and maintenance applications. It features a laser pointer, a backlit display, and a high distance-to-spot ratio, allowing for safe temperature measurement even on distant surfaces, live equipment, or hard-to-reach areas.
It is specifically designed for electrical installers, industrial maintenance technicians, HVAC professionals, and technical support staff, and is particularly useful for detecting hot spots in electrical panels, motors, variable frequency drives, HVAC systems, batteries, and industrial machinery. Thanks to its speed and accuracy, it enables preventive thermal inspections and helps identify anomalies before they cause malfunctions or service outages.
- Infrared Thermometer
- Instant measurement (response time of 500 ms)
- High measurement range -32ºC ~ 600ºC
- Measurement accuracy ±1.5ºC or ±1.5%
- Reliability ±0.7°C or ±0.7%
- EBTN color display
- Storage of up to 99 data
- Scheduled measurements
- Contactless measurement by laser ring (1mW)- ºC/ºF Selection
- Automatic shutdown
- Data blocking
- Visual and audible high and low temperature alarm
- Displays characteristic values (MAX/MIN/AVG/DIF/HOLD)
- Low battery indicator
Specifications 🤓
| Brand | UNI-T |
| Screen | Color EBTN |
| Temperature Range | -32ºC ~ 600ºC |
| Accuracy | ±1.5ºC or ±1.5% |
| Reliability | ±0.7°C or ±0.7% |
| Response Time | 500ms |
| Ratio D:S | 12:1 |
| Emissivity | Adjustable 0.1~1.00 |
| Spectral response | 8μm～14μm |
| Laser power | ＜1mW |
| Storage | Up to 99 data |
| Characteristic values | MAX/MIN/AVG/DIFF/Hold mode |
| Time and date display | Yes, it is available |
| Automatic shutdown | Yes, it is available |
| Low battery indicator | Yes, it is available |
| Data blocking | Yes, it is available |
| High/Low temperature alarm | Yes (Visual and audible) |
| Tripod hole | Yes, it is available |
| Measurement Units | Switchable between ºC / ºF |
| Power supply | Battery 9V |
| Dimensions | 108 (D) x 153 (H) x 40 (W) mm |
| Weight | 185 g |
Package includes 📦
- Infrared Precision Thermometer
- Battery 9V
