Features 🚀
- Safire Smart
- A3
- NVR for IP cameras
- 128 CH
- 768 Mbps bandwidth supported
- Maximum resolution 16 Megapixel
- Compression H.265S/H.265+/H.265/H.264+
- 4 HDMI outputs 4K and 1 VGA output
- POS Function
- Intelligent searches of humans, vehicles and two-wheelers
- Facial recognition
- Face tracking on map
- Dewarping for Fisheye cameras
- Arming / Disarming from the mobile APP
- IP Dual Stream Access
- RCA Audio
- Alarms
- Space for 8 HDD
- WEB, CMS and Smartphone interface
- ONVIF Compatible
- NDAA Certificate
Specifications 🤓
| Brand | Safire Smart |
| Range | A3 |
| Inputs for IP cameras | 128 CH IP |
| IP compatible cameras | Safire Smart (native protocol), ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Main Stream recording | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF |
| Decoding capacity | 1CH 16Mpx @ 30FPS 4CH 12Mpx @ 30FPS |
| Video compression format | H.265S / H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711(U/A) |
| Total bandwidth | 768 Mbps downstream / 768 Mbps upstream |
| Video outputs | 1 HDMI 8K, 2 HDMI 4K, 1 HDMI FullHD / 1 VGA |
| Display resolution | HDMI1 : 7680x4320@60/30, 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 HDMI2 : 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 HDMI3 : 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 HDMI4 : 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 *HDMI 1 and VGA output the same video source ** When 8K resolution is enabled in HDMI 1, HDMI2 is disabled |
| Yesmultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Multi-Screen | Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 / 64 (Live View) Auxiliary output 1: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 (Live View) Auxiliary output 2: 1 / 4 / 6 / 8 / 9 / 13 / 16 (Live view) Auxiliary output 3: 1 / 4 / 6 / 8 / 9 / 13 / 16 (Live view) Maximum 132 (64 + 36 + 16 + 16) |
| Recording method | Manual, programmed, motion detection, smart events, alarm input, POS |
| POS Function | Yes |
| Perimeter Protection | Artificial Intelligence based on the classification of humans, vehicles and two-wheeled vehicles on: - Area intrusion - Line crossover - Region entry - Exit region Detailed searches for intelligent events |
| Facial recognition | Face detection with Safire Smart cameras 4I1 or 8I2 up to 64CH (All channels) Face detection by the NVR itself with any camera up to 4CH Facial recognition up to 16CH max Computation of up to 18 images / second 32 Libraries and up to 10000 face images Image searches via recorder, APP and PC software Face tracking on map or plan Statistical information on face results by day, week, month or customized period |
| Video metadata | With Safire Smart cameras 4I1 or 8I2 up to 64CH (All channels) By the NVR itself with any camera up to 8CH Human and vehicle feature extraction For humans: Can extract up to 13 features (glasses, color of clothes, etc.) For vehicles: can extract up to 5 characteristics (color, type, etc.) |
| License plate recognition | Yes (Safire Smart license plate camera required) |
| Dewarping | Supports Fisheye camera dewarping |
| Alarms | 16 Inputs / 4 Outputs |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Internal memory | 8x 3.5" HDD SATA3.0 up to 10 TB (not included) |
| RAID | RAID0, RAID1, RAID5, RAID6 and RAID10 |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/100/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, Safire Smartphone App and PC Software Safire Smart VMS |
| Power | ATX200 ≤ 50W (Without hard disk) |
| Operating temperature | -10oC ~50oC, Humidity 10~90% |
| Dimensions / Weight | 90 (H) x 445 (W) x 436 (D) mm / 1.18 Kg |
Package includes 📦

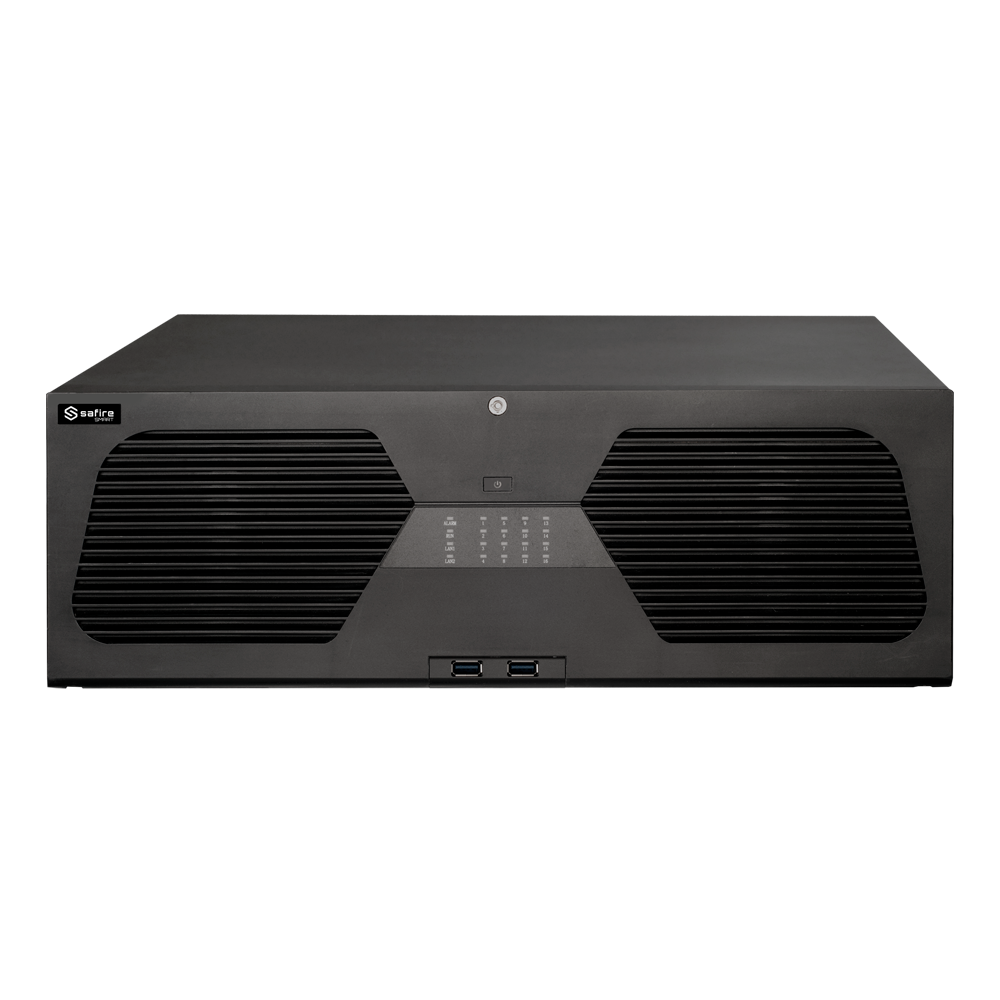

- Safire Smart NVR Recorder A3
- Mouse
- Ethernet Cable
- Quick Guide
