Features 🚀

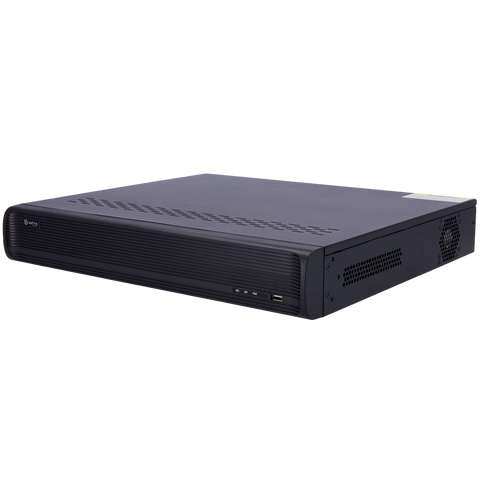

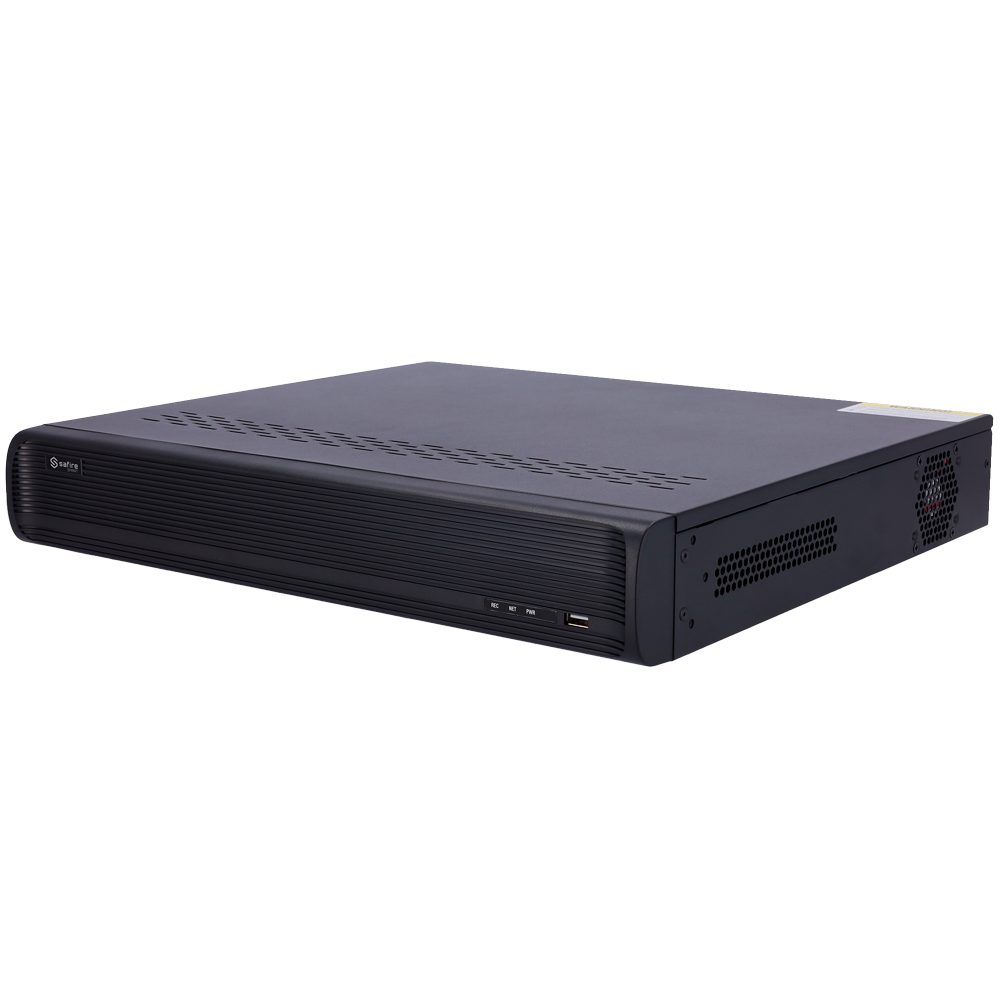

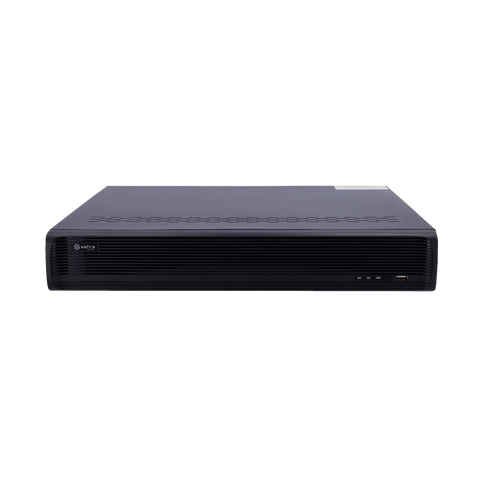

The Safire Smart B2 NVR supports up to a maximum resolution of 8Mpx and has advanced features such as video metadata search from cameras with such functionality. In addition, like all the recorders in the series, it has a POS function on all channels and allows the management of a parking lot by acting on the relay outputs of the LPR camera itself.
- Safire Smart
- B2
- NVR for IP cameras
- 32 CH
- 192 Mbps bandwidth supported
- Maximum resolution 8 Megapixel (3840x2160)
- Compression H.265+/H.265/H.264+/H.264
- Outputs 4K HDMI & VGA
- POS Function
- RCA Audio
- Alarms
- Space for 4 HDDs
- WEB, CMS and Smartphone interface
- ONVIF Compatible
Specifications 🤓
| Brand | Safire Smart |
| Range | B2 |
| Inputs for IP cameras | 32CH IP *16CH IP if artificial intelligence is enabled |
| IP compatible cameras | Safire Smart (native protocol), ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Main Stream recording | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF |
| Decoding capacity | No AI: 4CH×4MP@30fps/9CH×1080P@30fps/16CH×720P@30fps AI: 4CH×3MP@30fps/9CH×720P@30fps/16CH×D1@30fps |
| Video compression format | H.265S / H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711(U/A) |
| Total bandwidth | 192 Mbps downstream / 192 Mbps upstream |
| Display resolution | HDMI: 3840×2160 / 1920×1080 / 1280×1024/ 1024×768 VGA: 1920×1080 / 1280×1024/ 1024×768 |
| Alarms | 4 In / 1 Out |
| POS Function | Yes |
| Intelligent functions | Image searches via recorder, APP and software Face tracking on map or plan Statistical information on face results. Intelligent event searches by human and vehicle (AI camera required) |
| Recording method | Manual, programmed, motion detection, smart events, alarm input, POS |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| External Backup | USB Flash Drive |
| Internal memory | 4x HDD SATA3.0 up to 10 TB each (not included) |

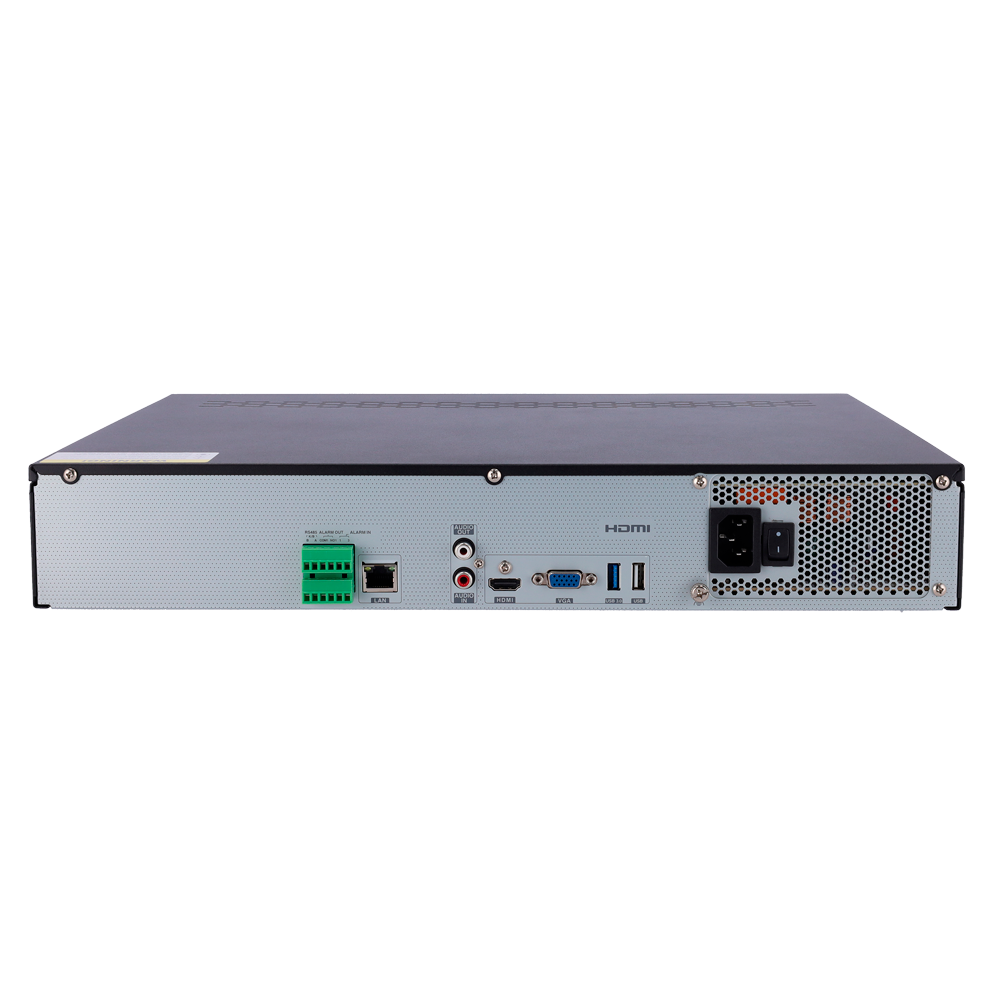

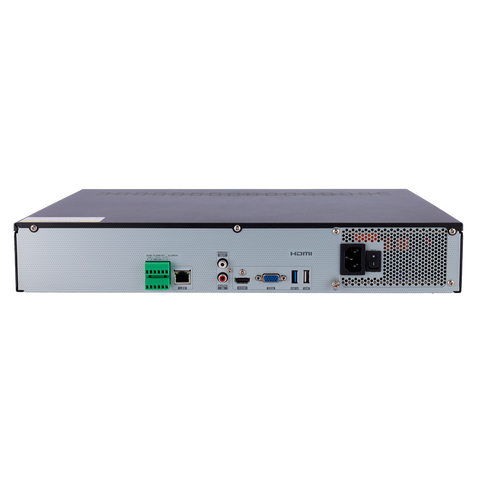

| Communication | 1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/100/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, Safire Smartphone App and PC Software Safire Smart VMS |
| Power | ATX 200W, < 15W (Without hard disk) |
| Operating temperature | -10oC ~50oC, Humidity 10~90% |
| Dimensions | 70 (H) x 440 (W) x 390 (D) mm |
Package includes 📦
- Safire Smart NVR Recorder
- Mouse
- Ethernet Cable
- Power supply
- Quick Guide
