Features 🚀

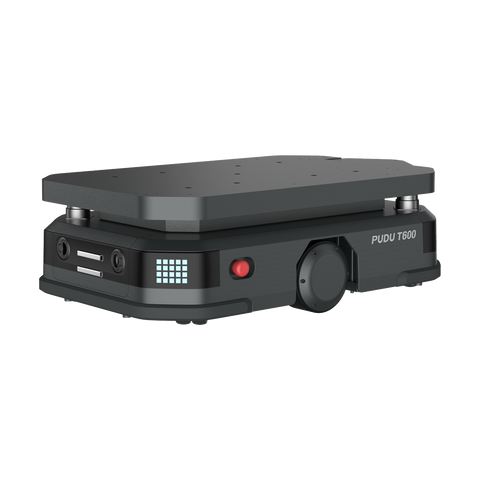

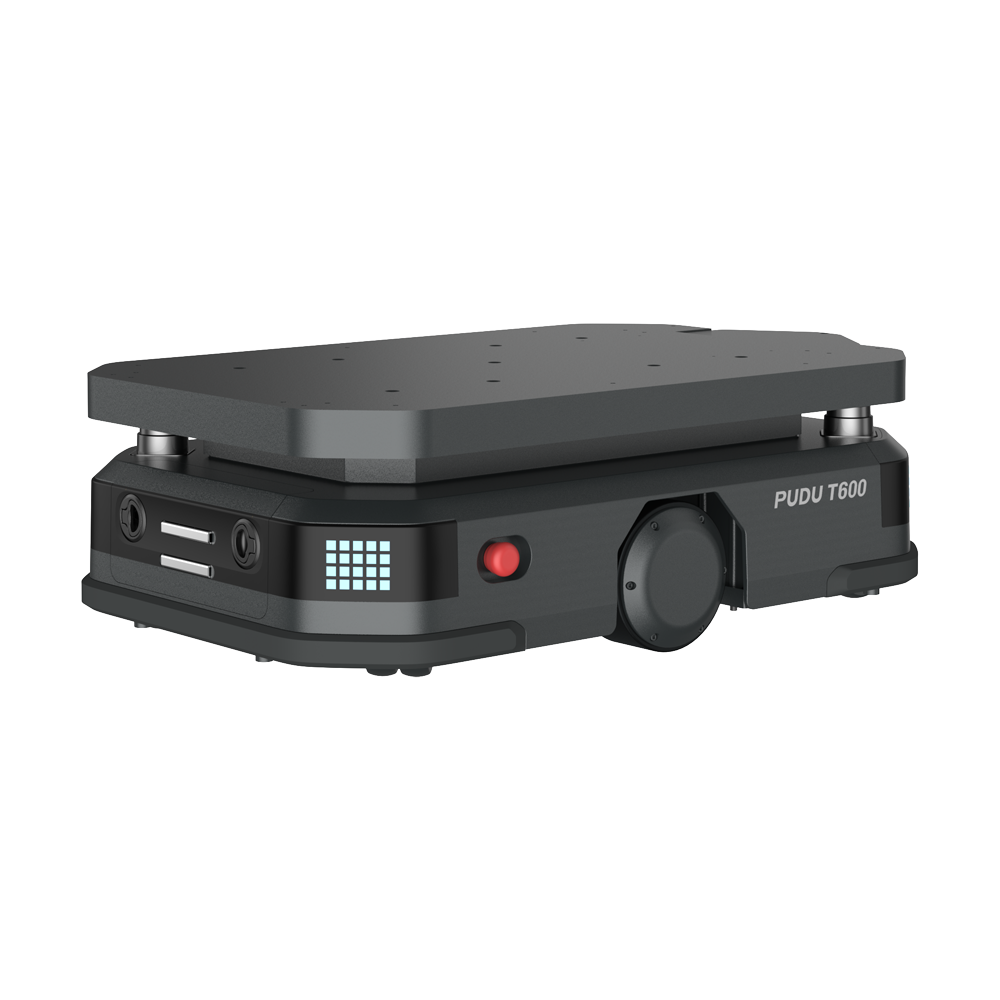

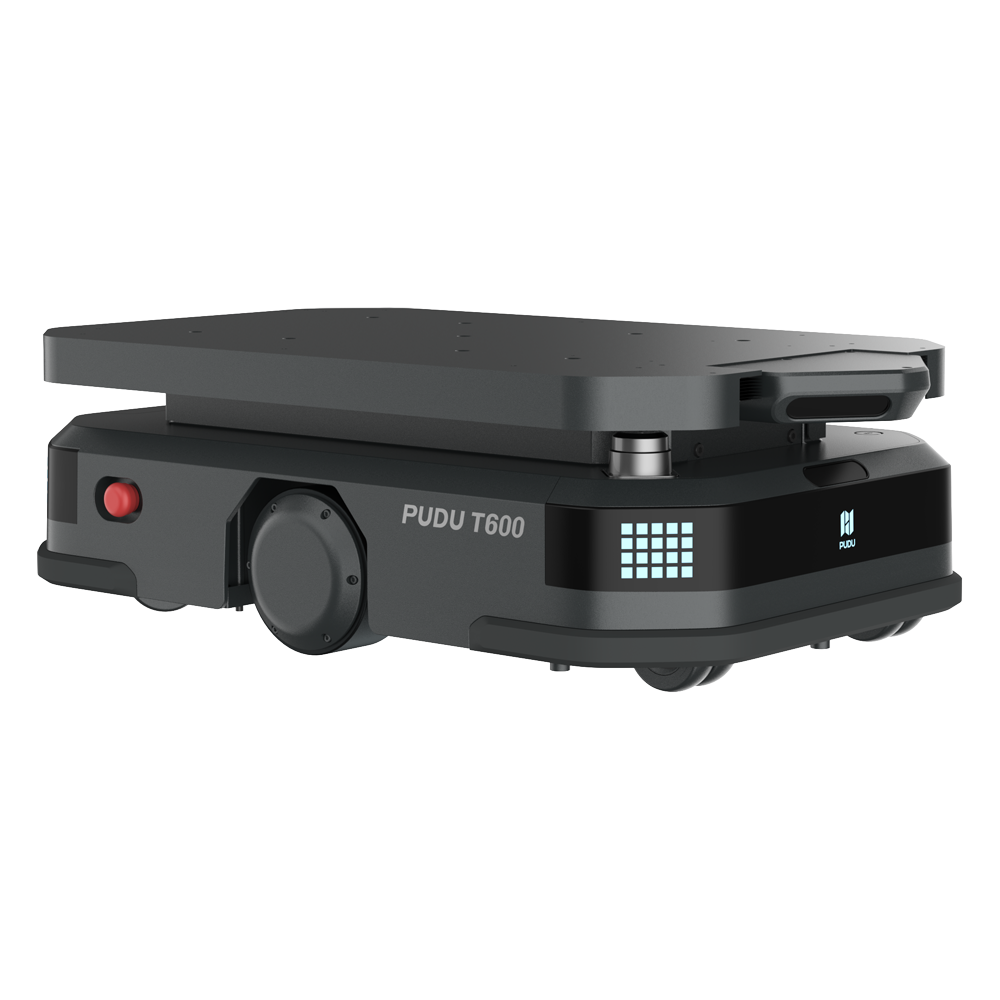

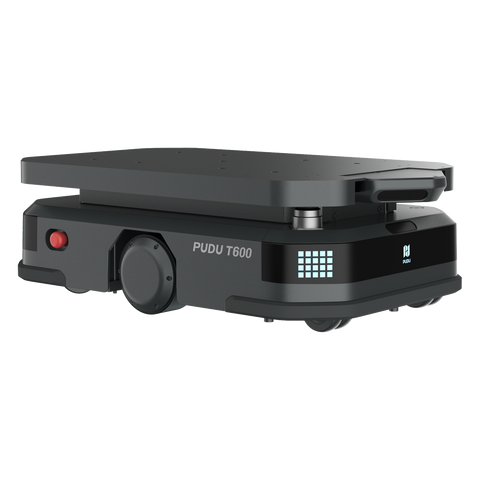

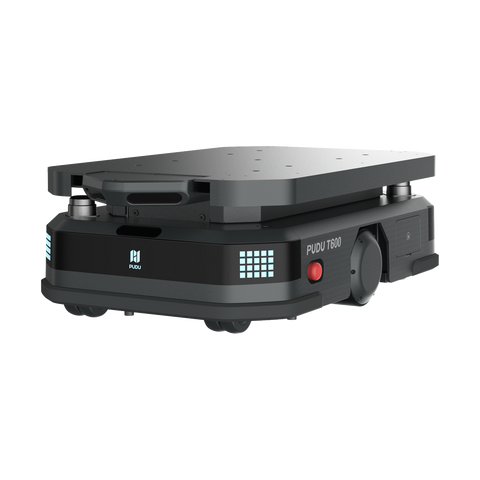

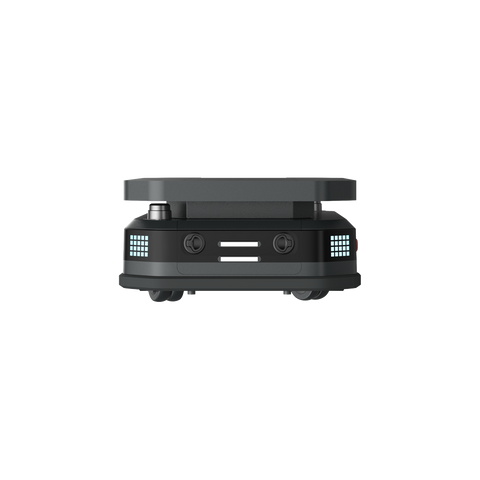

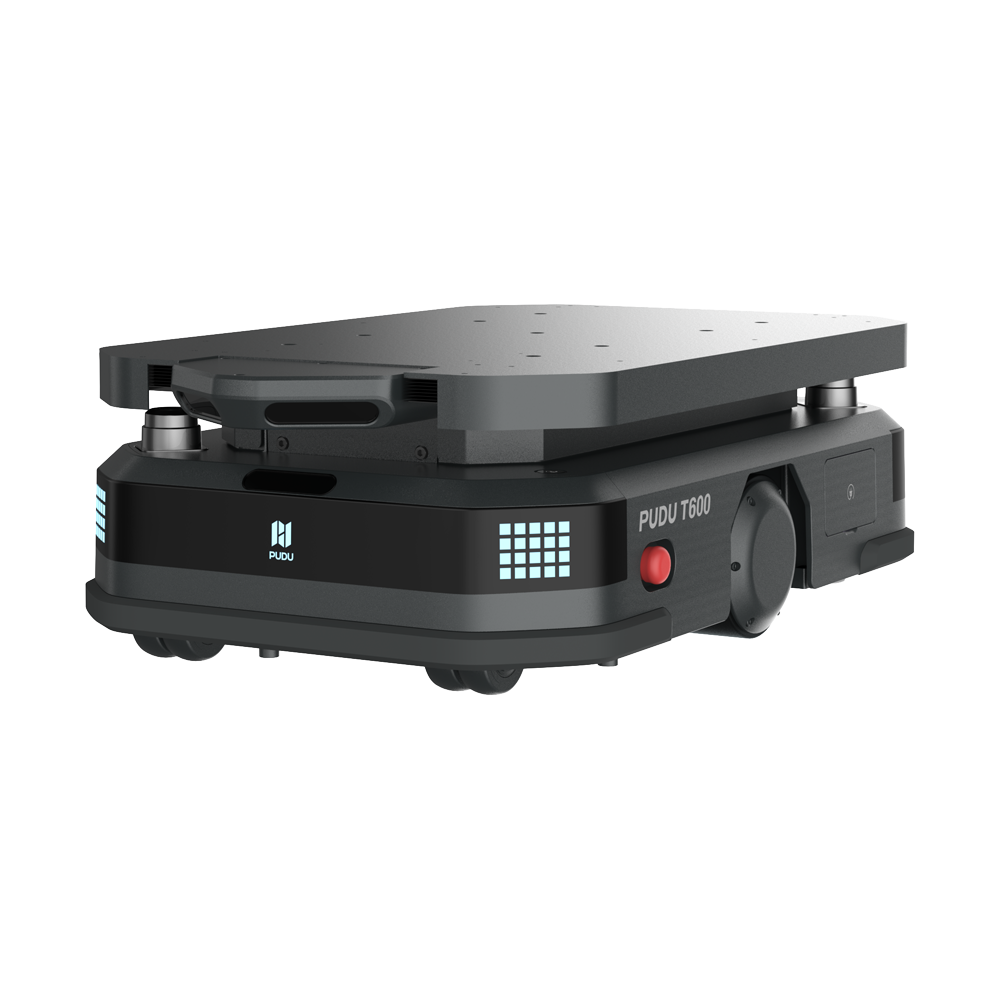

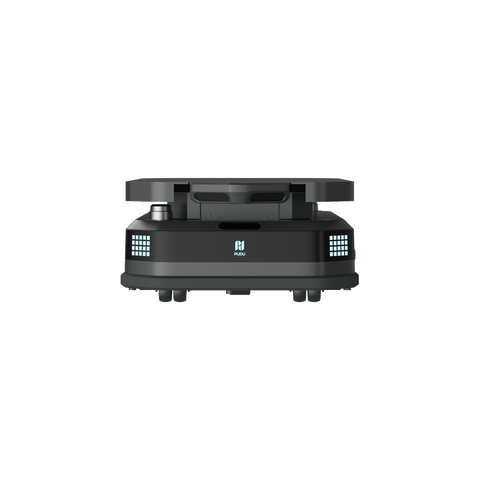

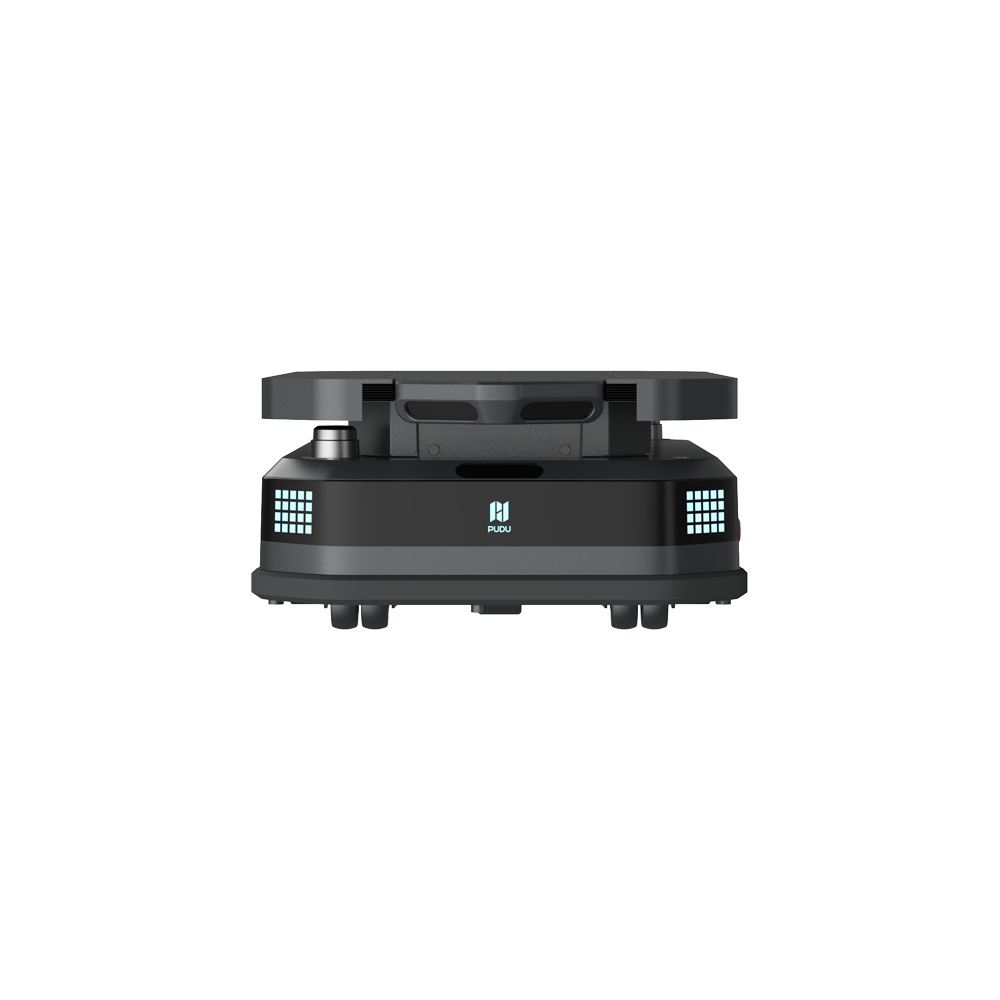

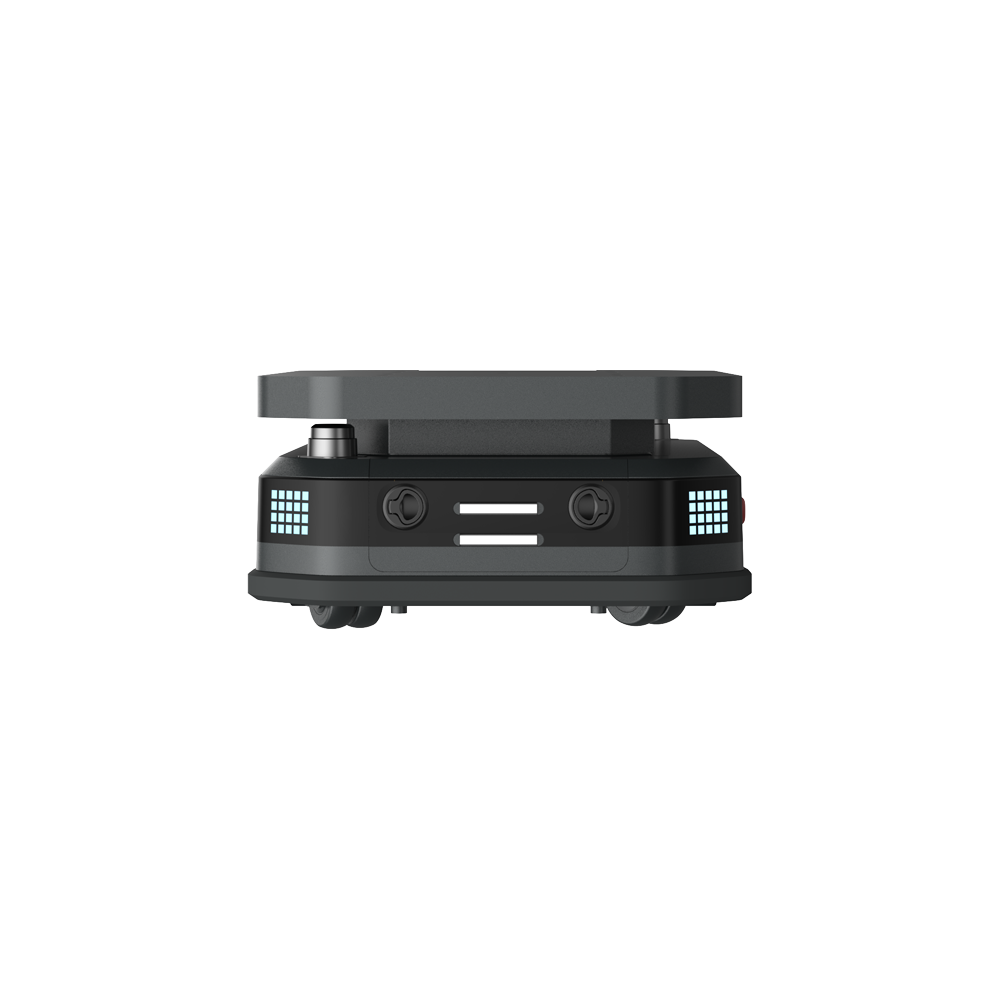

The PUDU T600 Underride is an autonomous mobile platform designed to move heavy loads of up to 600 kg in industrial environments. Its low-profile design allows it to slide under shelves or platforms, optimizing internal transport even in narrow aisles.
Equipped with navigation technologies such as LiDAR SLAM, it moves with precision, avoids obstacles, and operates safely. Its autonomy and ability to integrate with logistics systems make it an effective tool for reducing manual labor and improving efficiency in warehouses and on production lines.
- Industrial delivery platform
- Maximum load capacity 600 kg
- Identification of storage areas
- Integration with elevators
- Smart Traffic Strategy
- Dynamic obstacle avoidance
- Multiple job functions
Specifications 🤓
| Colour | Black |
| Type of robot | Flexible and efficient industrial delivery platform |
| Delivery function | The robot transports objects from one point to another autonomously, following predefined routes or routes assigned in real time. This function is used to transport materials, tools, or products within a building or warehouse. |
| Patrol duty | It performs scheduled patrols to monitor an area, detecting changes, obstacles, or unusual situations. This feature is used for surveillance, monitoring, or control of areas |
| Lifting function | It allows the robot to lift or adjust the height of loads or trays, facilitating operations such as loading, unloading, or placing objects at different levels. |
| Transport function | This involves moving loads within a space without a specific destination, whether they are materials, products, boxes, or components. The robot can perform this task continuously and efficiently, replacing manual handling tasks. |
| Towing capability | The robot pulls loaded carts, platforms, or trailers, increasing their carrying capacity. This feature is useful in environments where large volumes or heavy loads need to be moved without human effort. |
| Maximum load capacity | 600 Kg |
| Navigation systems | LiDAR SLAM |
| Sensors and cameras for navigation | Front RGBD sensor Front LiDAR sensor Side impact sensor |
| Positioning accuracy | Standard: ± 5 cm Precise: ± 1 cm |
| Protocol VDA5050 | It enables collaborative programming with other compatible robots and systems, thereby facilitating the rapid deployment of a flexible, unified, efficient, and scalable logistics network. |
| On-Premise Installation | It supports on-premises deployment, allowing the system to run on the customer's own local servers or in a private cloud. This allows data to circulate within a closed internal network, eliminating the need for external cloud services and significantly reducing the risks associated with data transmission, making it ideal for industrial or commercial environments with high security requirements. |
| Minimum clear space required for navigation | 65 cm |
| Maximum step height | 10 mm |
| Maximum clearance (opening) | 35 mm |
| Battery capacity | 30 Ah |
| Battery duration | 12 h (without cargo) |
| Charging time | 2 h (from 0% to 90%) |
| Charging method | Charging station (not included) Wired charging Manual battery replacement |
| Travel speed | 0,2 m/s ~ 1,2 m/s (adjustable) |
| Installation (required accessories not included) | Elevators (with smart call functionality for idle elevators) Automatic doors Call button Control panel |
| Mobile application | PUDU Link to: Fleet management and remote control Route Configuration Viewing operational and maintenance data |
| Other | Emergency stop button Motion assistance button Turn signal light |
| Dimensions | 845 (W) x 255 (H) x 500 (D) mm |
| Weight | 94 Kg |
Package includes 📦
- Delivery platform
