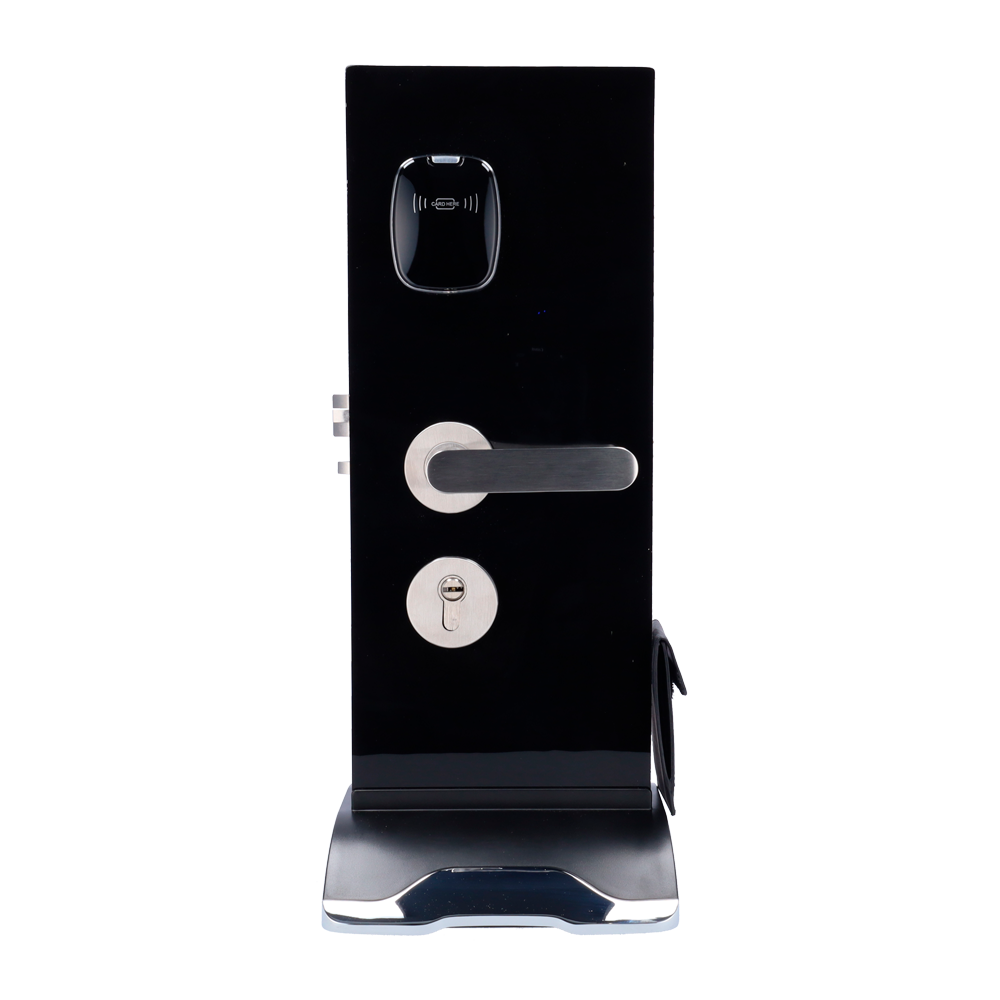

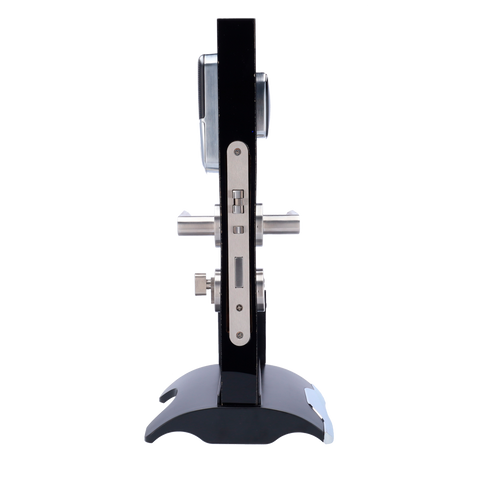

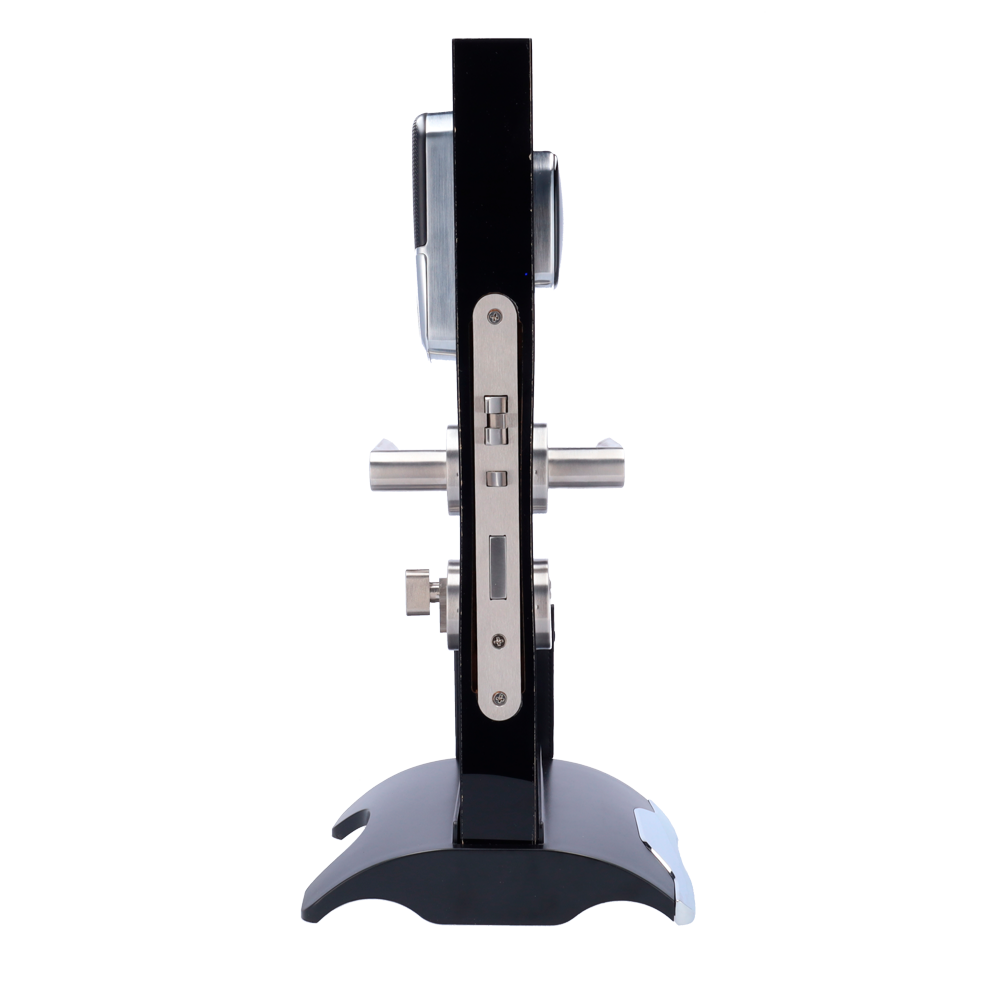

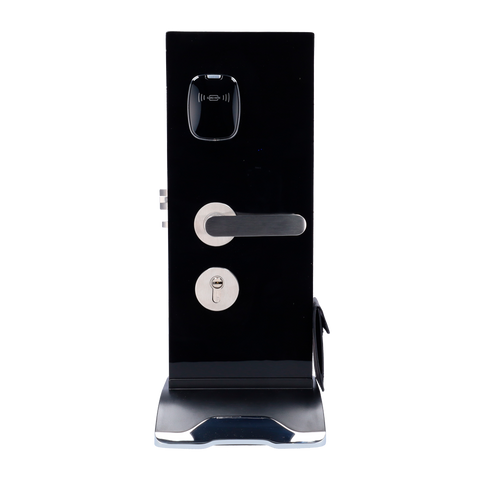

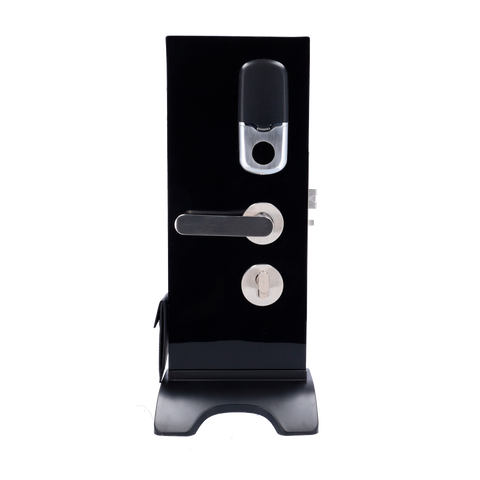

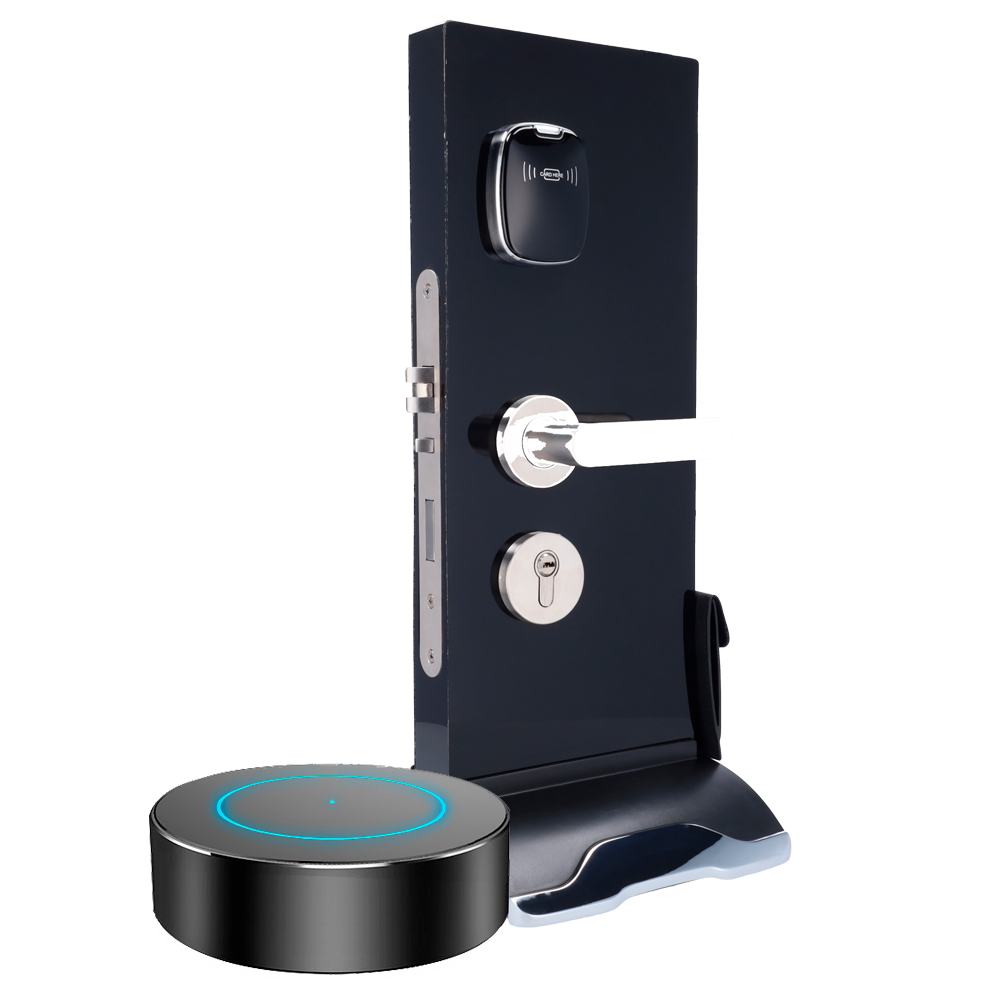

Hotel L700 DEMO KIT is stand with RFID electronic lock (split design) and card encoder. Stand is designed for real demonstration for hotels
Features 🚀
- Hotel lock with split design
- MF Card Reader
- Accessories: HOTEL-ENCODER-MF and two physical keys
- Installation: Plug and Play
- Wireless operation
- Powered by batteries
- Suitable for European standard lock
- Anti-panic exit function
- Concealed emergency locking device
- Made of stainless steel and zinc alloy
- Management with Hotel Lock System software
- EN Certification 14846
Specifications 🤓
HOTEL-L700
| Certification |
EN 14846 |
| Identification modes |
MF card 13.56 MHz / Mechanical key (emergency) |
| Indicators |
Light and sound / Low battery indicator |
| Thickness |
38 ~ 48 mm |
| Backset |
60 mm |
| Dimensions |
EXTERIOR: 77.2 (H) x 61.2 (W) x 20 (D) mm
Interior: 145.5 (H) x 64.5 (W) x 20 (D) mm |
| Material |
Stainless steel and zinc alloy |
| Power |
4 AAA batteries |
| Management |
Hotel Lock System Software |
| Operating temperature |
-10 ºC ~ 60 ºC |
| Humidity |
20% ~ 80% |
HOTEL-ENCODER-MF
| Reading distance |
3 ~ 6 cm |
| Technology |
MF Cards |
| Frequency |
13.56 MHz |
| Communication |
USB | Plug & Play |
| Power |
DC 5 V via USB |
| Temp. operation |
-30º C ~ +60º C |
| Material |
PVC |
| Dimensions |
118 (H) x 91 (W) x 150 (D) mm |
| Weight |
200 g |
Package includes 📦
- Exhibition stand
- Indoor/Outdoor Hotel Lock
- European deadbolt
- Card encoder

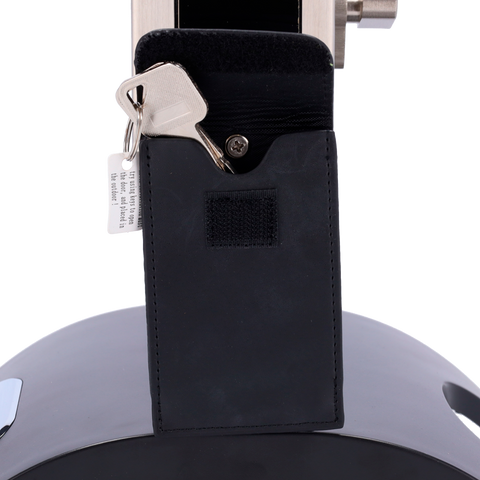

- Physical keys x 2
- Mounting hardware
