Features 🚀
Indoor surface loudspeakers are a versatile and efficient solution for public address and ambient sound systems in all types of spaces such as classrooms, offices, corridors, waiting rooms or commercial facilities. Its compact and unobtrusive design allows easy installation on walls, providing good sound coverage without the need for complex construction work.
They operate through constant voltage line systems (70V/100V), which facilitates the connection of multiple loudspeakers to the same amplifier, covering large areas with a uniform sound. They are designed for clear voice reproduction and ambient music, with a robust construction and materials resistant to daily use. In short, they are a practical, economical and durable option for indoor fixed sound installations.

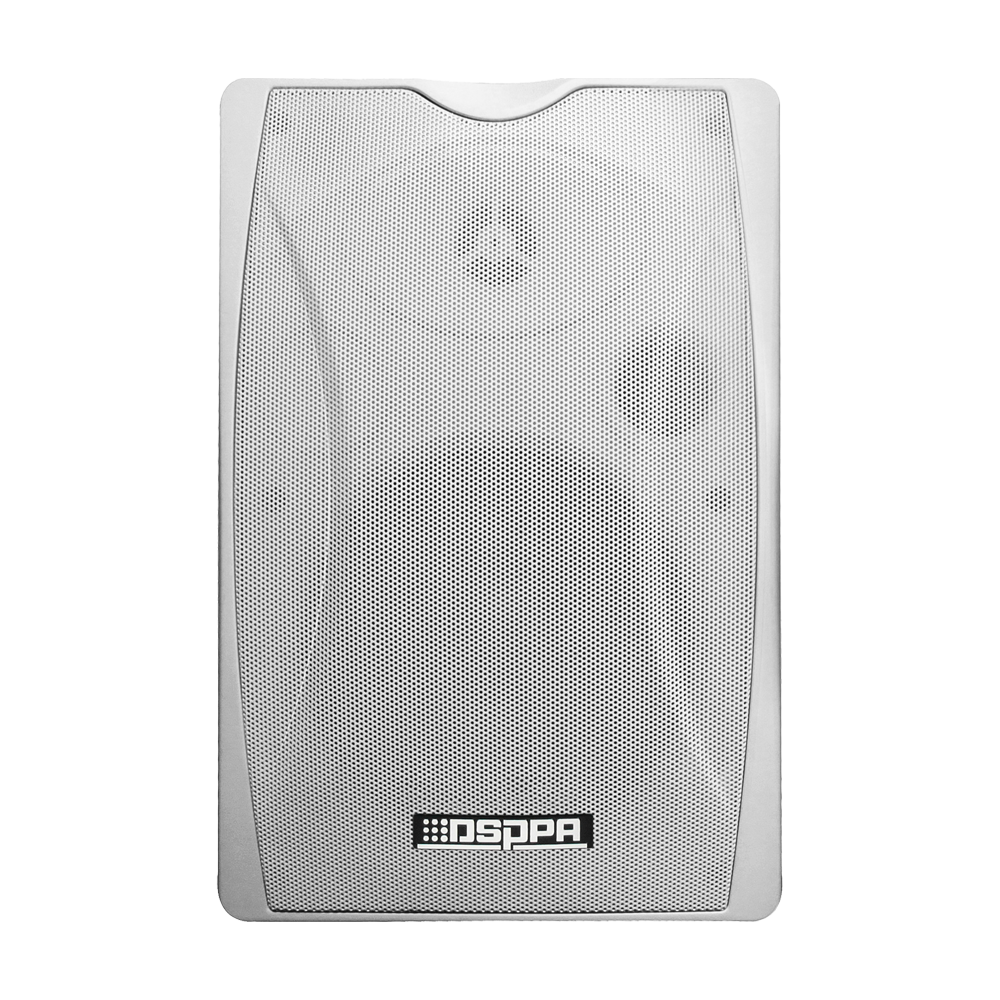

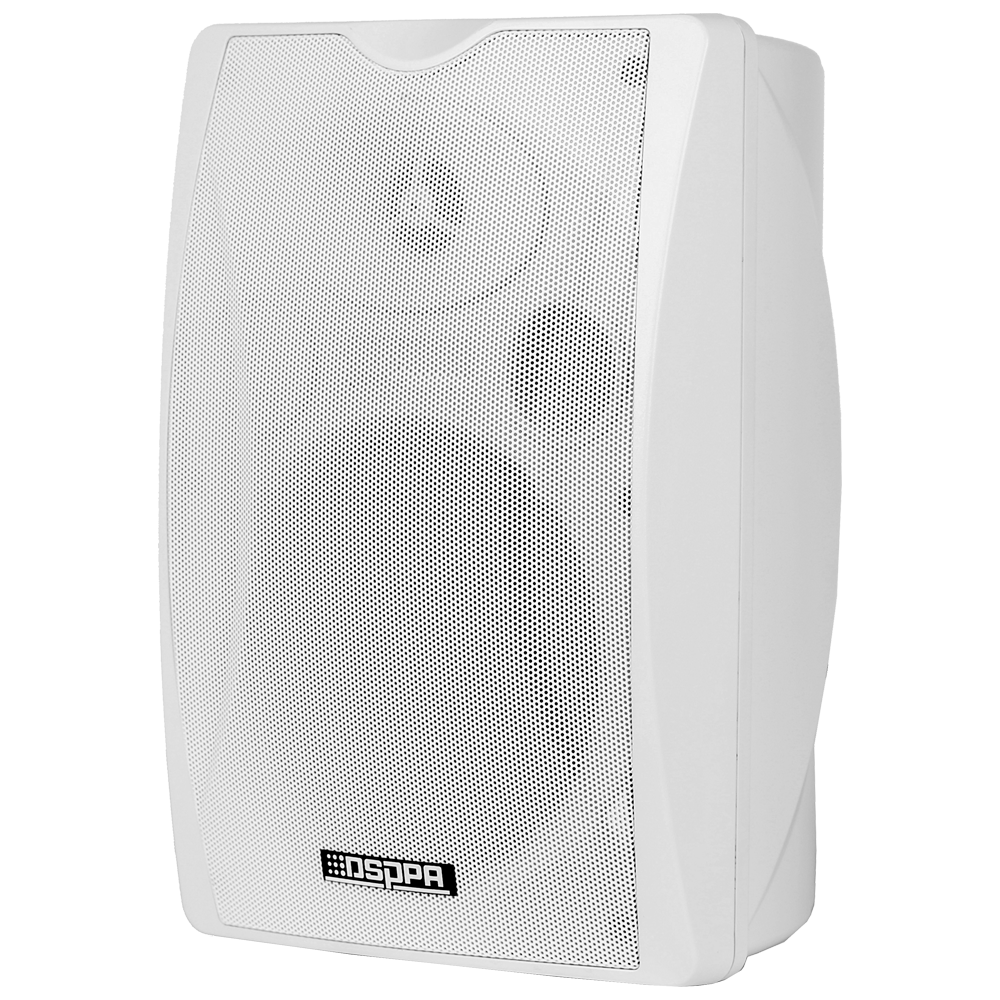

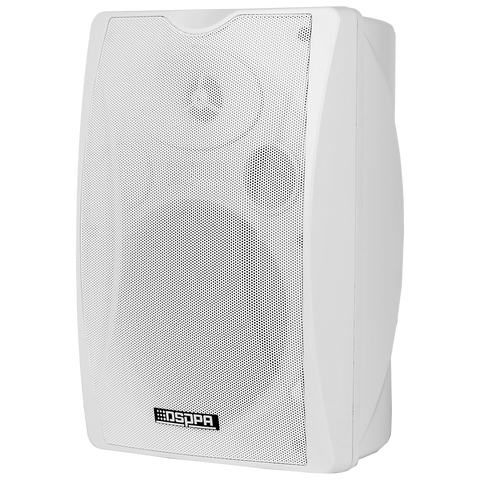

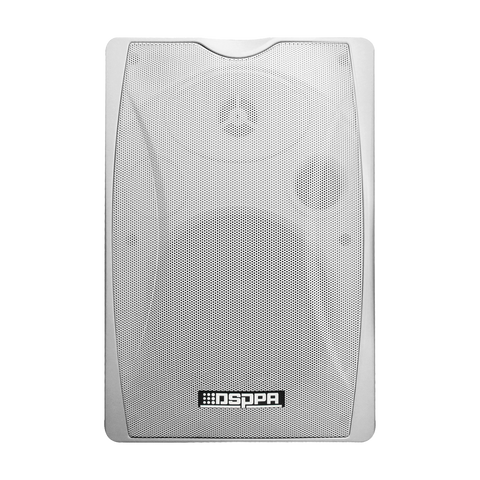

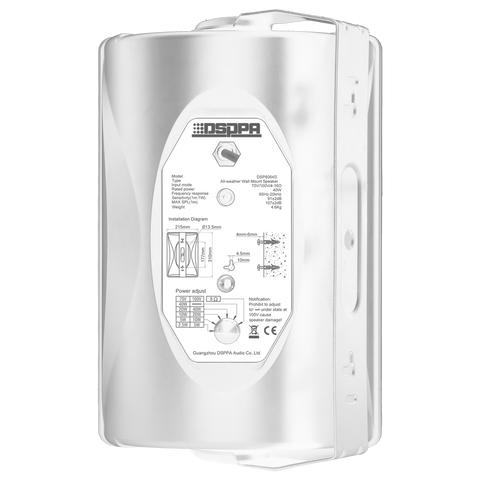

- Wall loudspeaker
- General public address system
- Full range speaker 1x6.5" + 1x1"
- Power 70V / 100 V
- Sensitivity 91dB
- Frequency response 65Hz / 20kHz
Specifications 🤓
| Model | DSP8064 |
| Speaker type | Wall loudspeaker |
| Connection | Push-wire connection (Bridging terminal - type 2 derivations) |

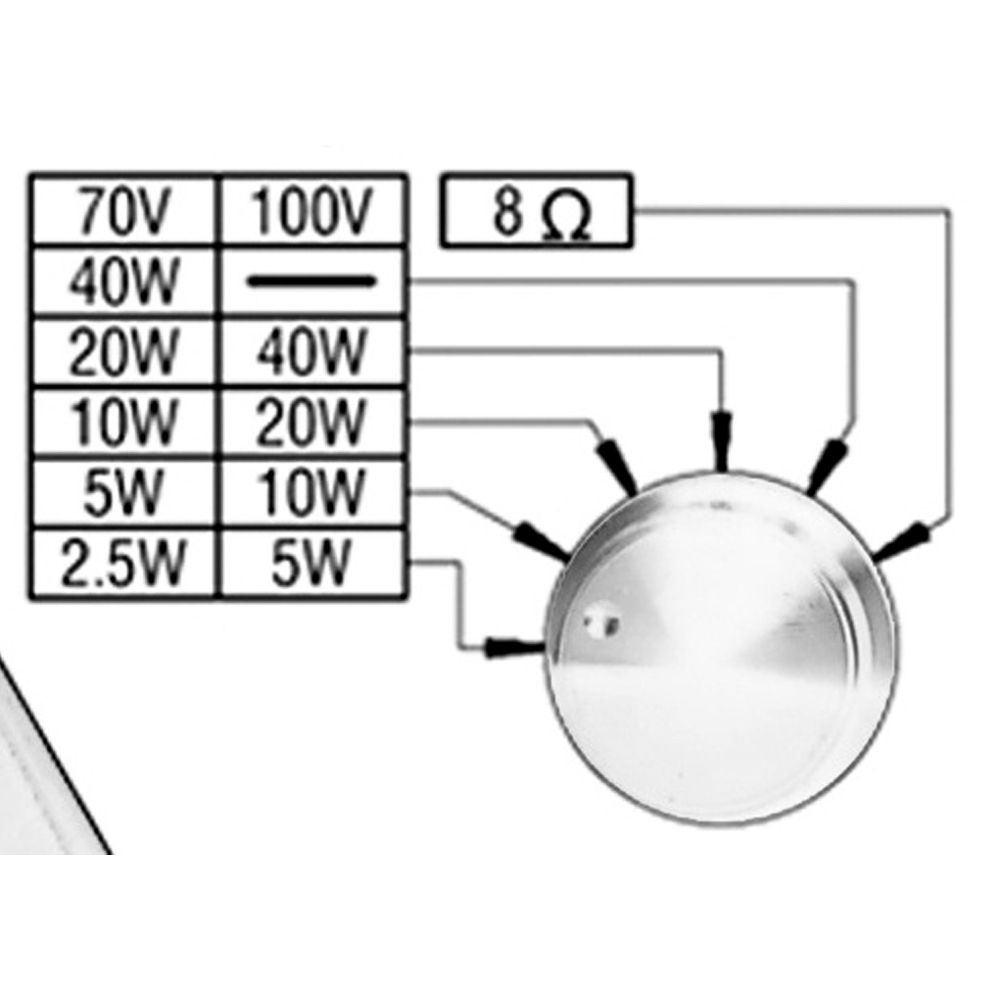

| Nominal input (high impedance) | - Line 70V: 2.5W / 5W / 10W / 20W / 40W - Line 100V: 5W / 10W / 20W / 40W |
| Impedance | 8Ω |
| Speaker component | 1 x 6.5" 1 x 1" |
| Sensitivity: (1W, 1m) | 91dB ± 2dB |
| Frequency response | 65Hz - 20kHz |
| SPL (max) | 107dB ± 2dB (1m) |
| Mesh | Pure aluminum 1060 with hardening and antirust treatment |
| Material | - Housing: ABS flame retardant grade UL94V-0 - Treble diaphragm: natural silk - Bass diaphragm: polypropylene |
| Mounting bracket | Treated to prevent corrosion |
| Dimensions | 215mm (W) x 310mm (H) x 203mm (D) |
| Weight | 4.6Kg |
Package includes 📦
- Wall loudspeaker
- Bracket
