Features 🚀
Indoor surface loudspeakers are a versatile and efficient solution for public address and ambient sound systems in all types of spaces such as classrooms, offices, corridors, waiting rooms or commercial facilities. Its compact and unobtrusive design allows easy installation on walls, providing good sound coverage without the need for complex construction work.
They operate through constant voltage line systems (70V/100V), which facilitates the connection of multiple loudspeakers to the same amplifier, covering large areas with a uniform sound. They are designed for clear voice reproduction and ambient music, with a robust construction and materials resistant to daily use. In short, they are a practical, economical and durable option for indoor fixed sound installations.
- Recessed ceiling speaker
- General public address system
- Full range speaker 4.5"
- Power 70V / 100 V
- Sensitivity 90dB
- Frequency response 180Hz / 15kHz
- Anti-dust and anti-drip cloth cover
Specifications 🤓
| Model | DSP116II |
| Speaker type | Surface loudspeaker |

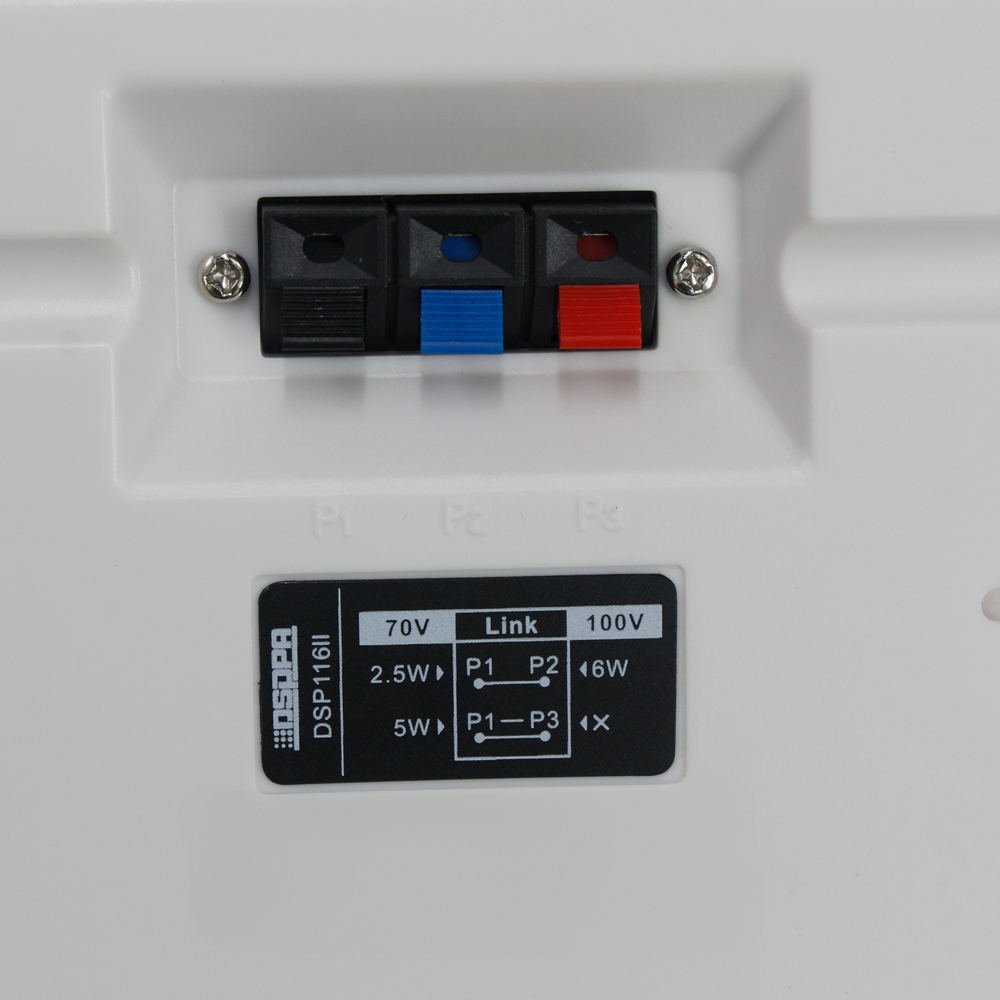

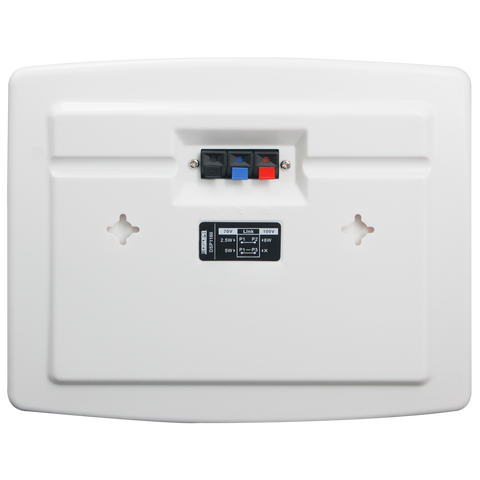

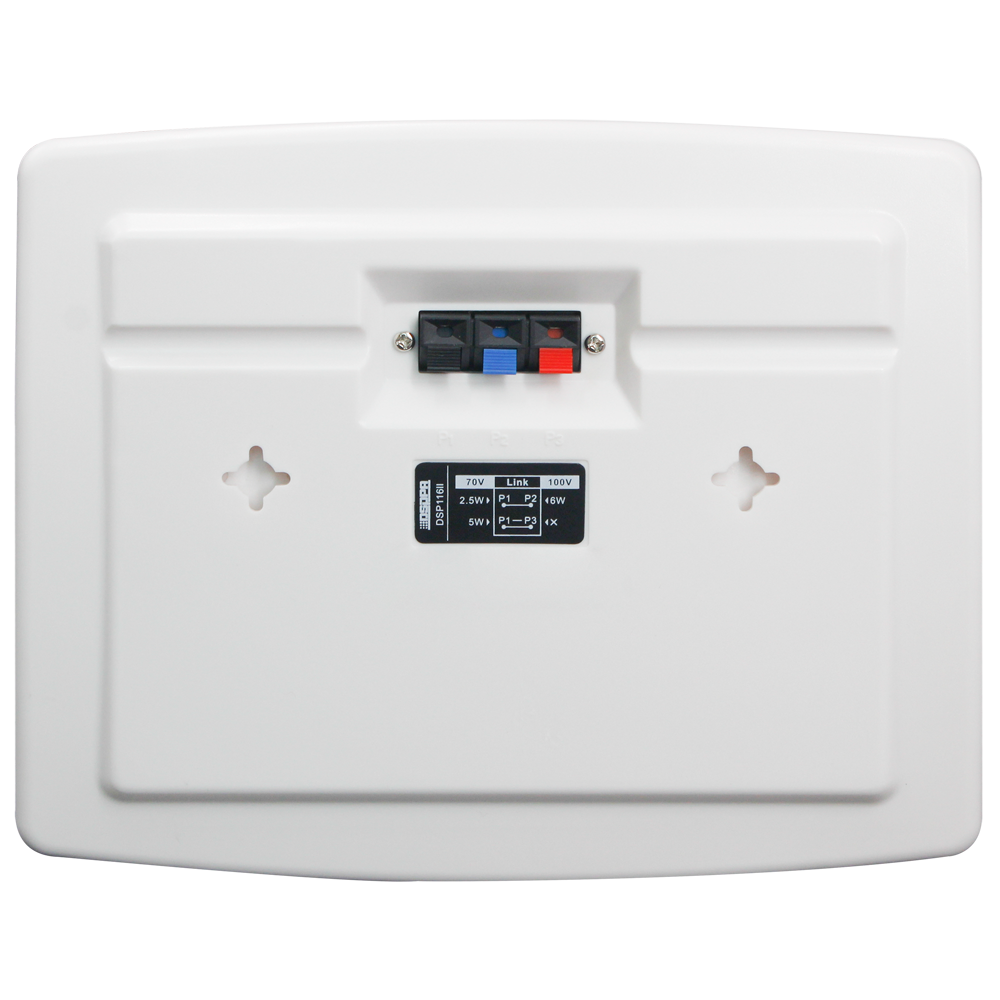

| Connection | Push-wire connection (Bridging terminal - type 2 derivations) |
| Nominal input (high impedance) | - Line 70V: 3W / 6W - Line 100V: 6W |
| Speaker component | 4.5" |
| Sensitivity: (1W, 1m) | 90dB ± 2dB |
| Frequency response | 180Hz - 15kHz |
| SPL (max) | 100dB±2dB (1m) |
| Finished | Dust cover |
| Dimensions | 228mm (W) x 188mm (H) x 101mm (D) |
| Weight | 0.8Kg |
Package includes 📦
- Ceiling speaker
