Features 🚀
- Akuvox

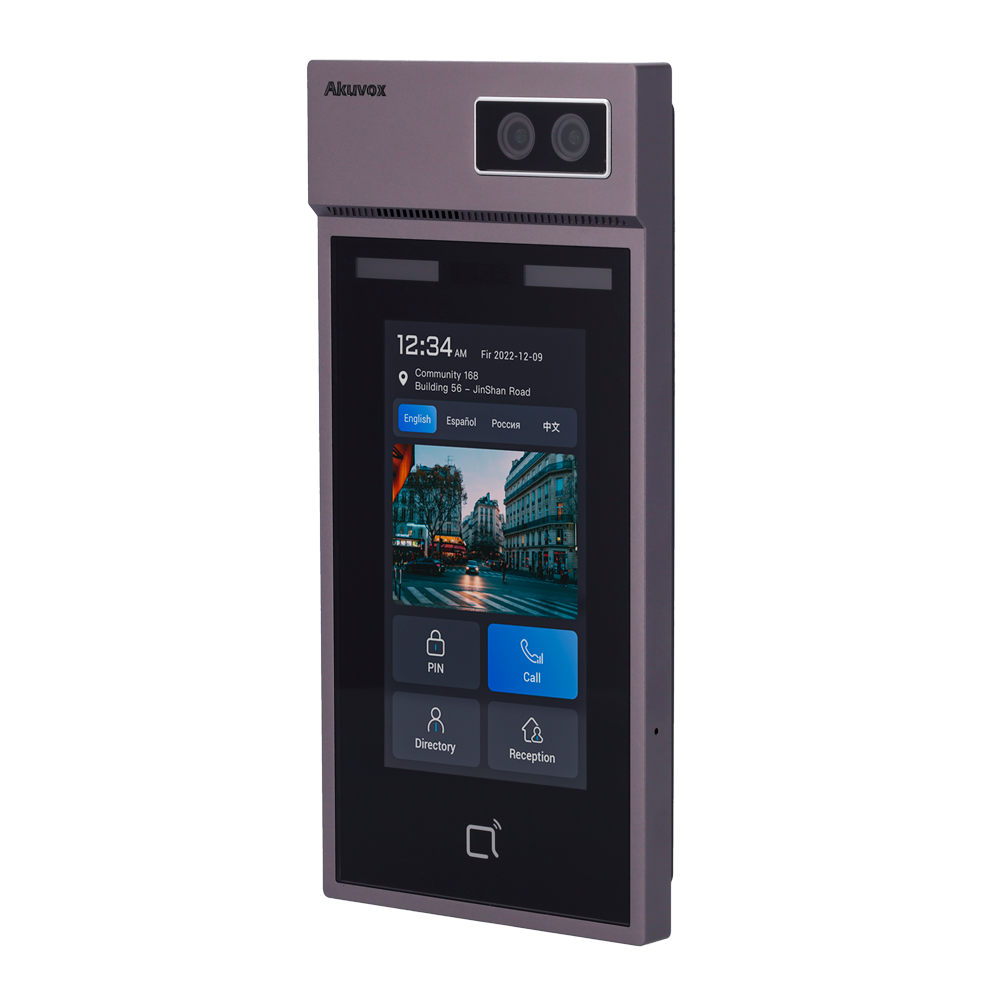

- IP video intercom with 2 Mpx camera for apartments
- Main camera with HDR
- Secondary camera of 1 Mpx for anti-spoofing technology
- Built-in speaker and microphone
- Two-way audio with Crystal Clear technology
- Night vision with IR illumination
- TCP/IP Connection
- PoE+ IEEE802.3at
- Integrated EM/MF and NFC card reader
- Opening by facial recognition, BLE and temporary PIN or QR keys
- Remote door opening
- 1 door relay output
- Output of 12 V/1 A (when powered by PoE+)
- Wiegand ports and RS485
- Port for installing additional peripheral modules
- 5" configurable full-color IPS touch screen
- Customizable wallpaper and screensaver
- Configurable LED illumination on card reader
- Suitable for exterior IP66
- Vandal-resistant aluminum alloy surface IK08
- Surface mounting or flush mounting with additional bracket
- Easy-to-integrate SIP standard
- Complete configuration via web browser
- Push notifications and calls between devices via SmartPlus APP (included with monitor or with Akuvox FOREVER subscription)
- 4 free users included for each dwelling (included with monitor or with subscription with Akuvox FOREVER)
- Call and user directory displayed on screen
- Firmware upgrades via cloud with installer control

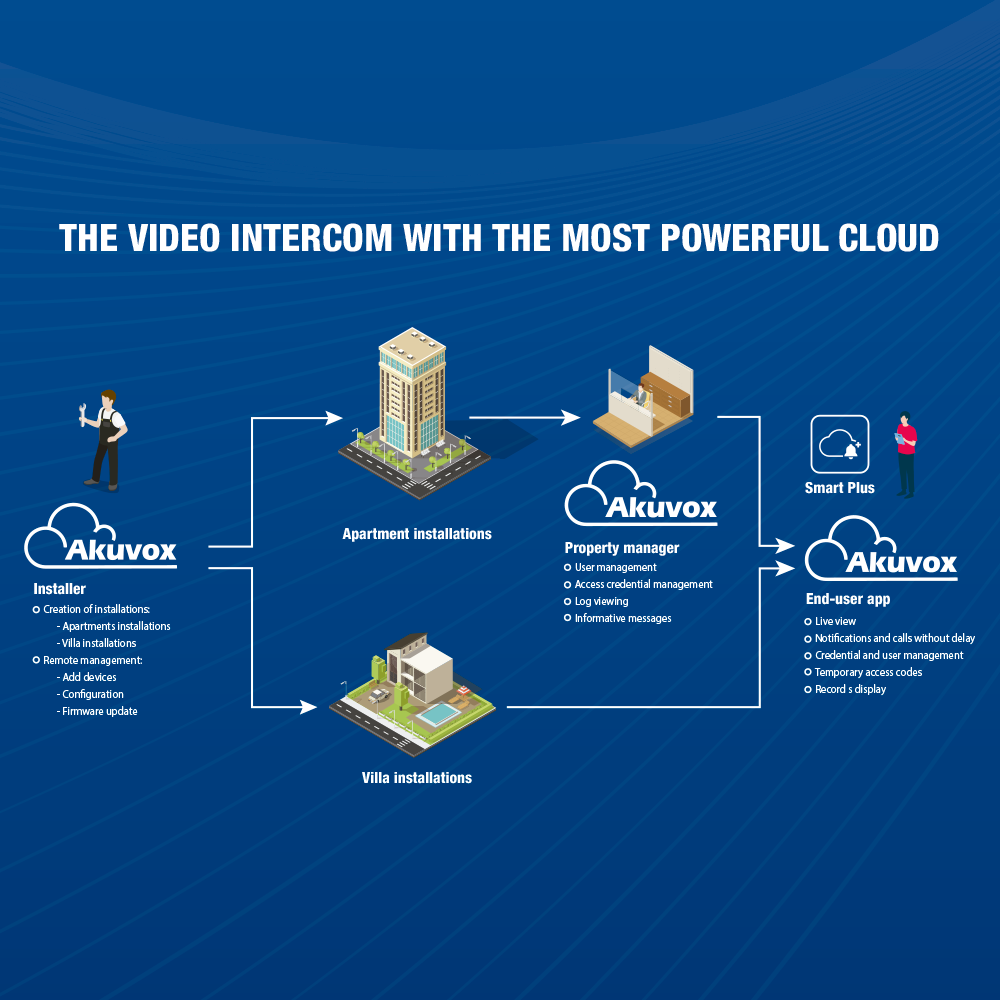

- Connection between boards and monitors via cloud in different networks
- Remote configuration access for installation
Specifications 🤓
| Brand | Akuvox |
| Model | S535 |
| Access control | Door opening with facial recognition, RFID card EM 125 kHz and MF 13.56 MHz, NFC, BLE, QR and PIN, with records |
| Capacity | Contacts: 20.000 RFID users: 20.000 faces, 100.000 cards and 50.000 passwords |
| Screen | 5" IPS LCD full color touch screen |
| Outputs | 1 x relay for lock (12V/1A), 1 x Wiegand OUT y 1 x RS485 |
| Inputs | 2 x output pushbutton, 1 x Wiegand IN and 1 x peripheral module |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.9" 2 Megapixel CMOS with infrared sensor and light sensor Starlight and HDR technology |
| Viewing angle | 110° (H) / 62° (V) |
| Camera resolution | 1920x1080 - 30fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Secondary camera | 1 Mpx for anti-spoofing technology |
| Video encoding | H.264 |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology Automatic voice detection |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Aluminium alloy |
| Degree of protection | IP66 y IK08 |
| Temp. operation | -40 oC ~ +55 oC |
| Dimensions | 210 (H) x 100 (W) x 27 (D) mm |
| Power | DC 12 V / 4 A max. / PoE+ IEEE802.3at |
| Weight | 850 g |
Package includes 📦
- Akuvox outdoor video intercom panel
- User instructions
- Mounting material
