Features 🚀
- Akuvox

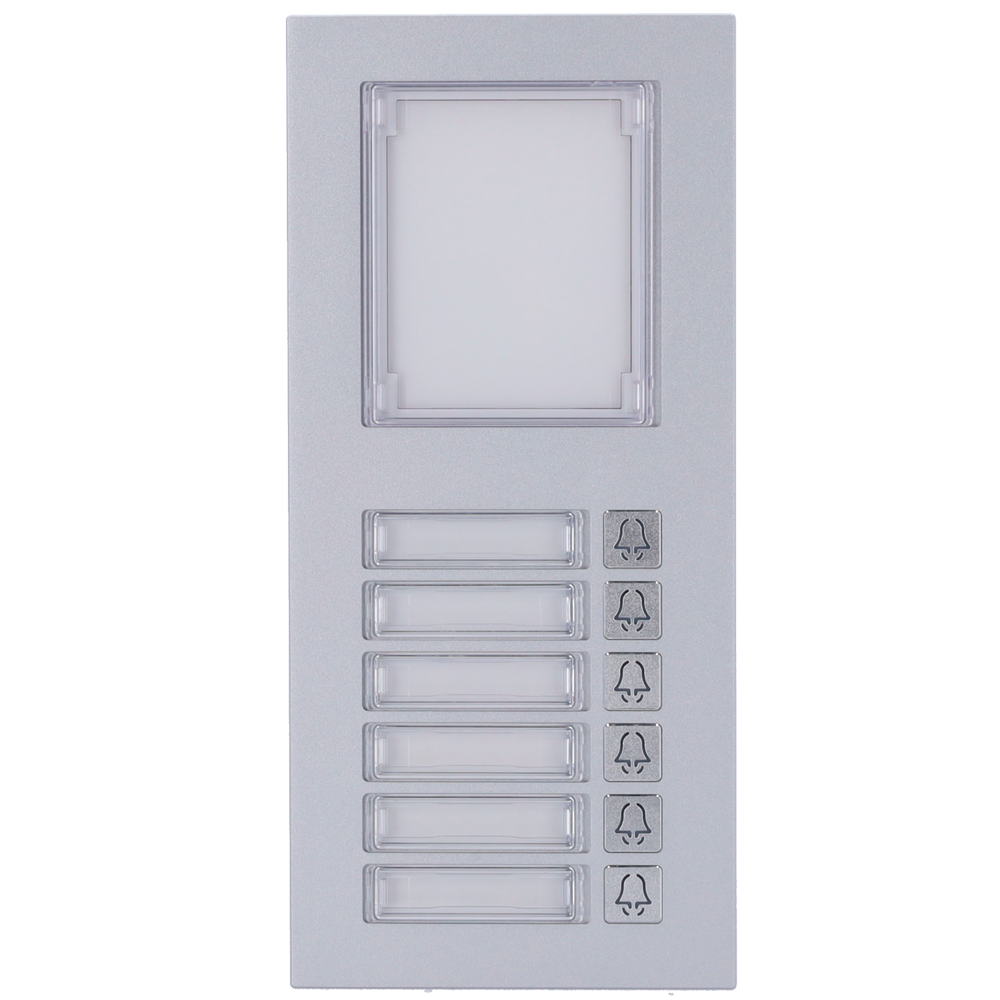

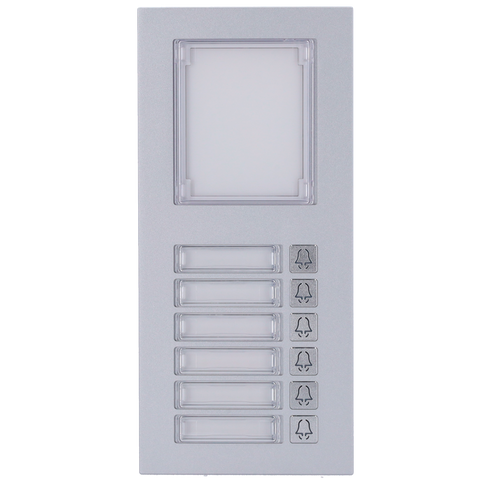

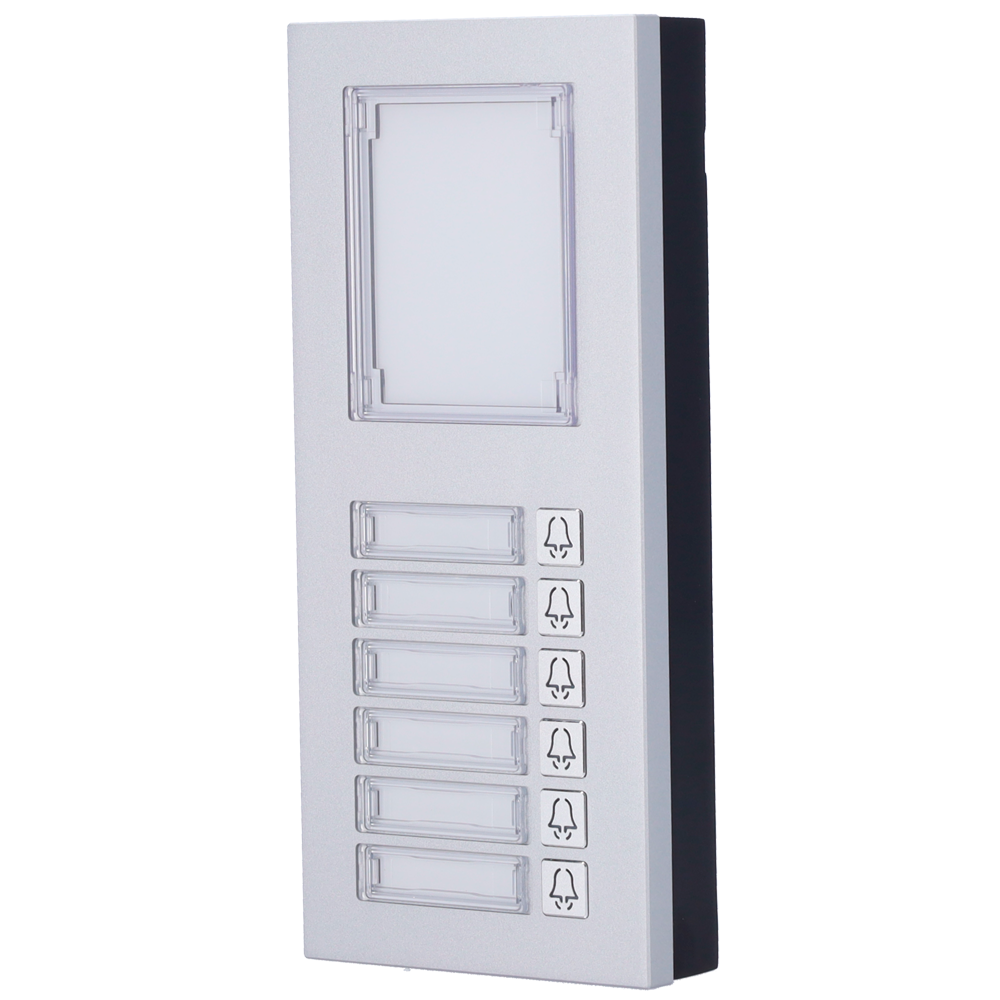

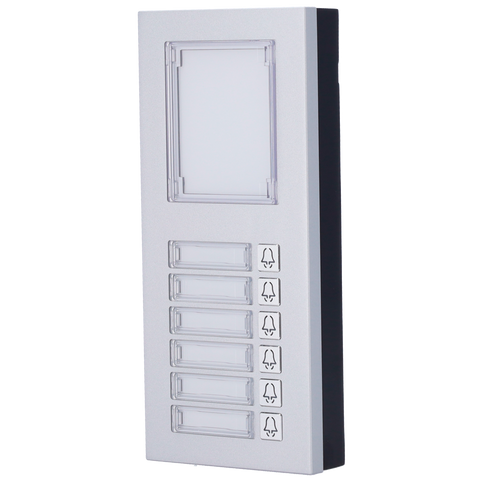

- Extension module for video door entry system
- Adds 6 additional call buttons and info panel
- Compatible with Akuvox R20B-xB and Akuvox R20K(-2) plates
- Connection RS485
- Power supply DC 12 V
- LED illumination in pushbutton panel and configurable panel
- Aluminium alloy surface
- Flush mounting only with additional support
- Complete configuration via web browser (from main board)
- Push notifications and device-to-device calls through SmartPlus app
- 4 free users included per house
- Call and user directory
- Firmware upgrades via cloud with installer control

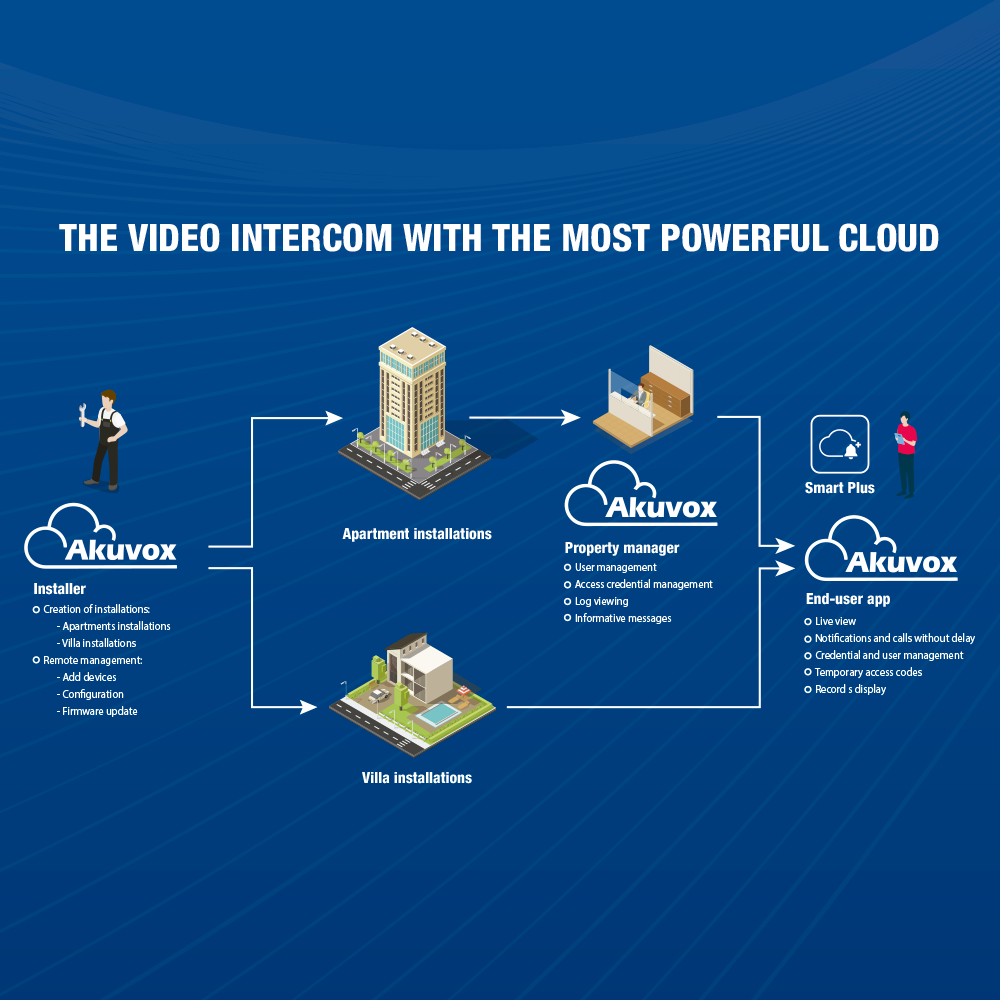

- Connection between boards and monitors via cloud in different networks
- Remote configuration access for installation
Specifications 🤓
| Brand | Akuvox |
| Model | MD6 |
| Module type | Extension module with additional pushbutton panel and information panel Compatible with Akuvox R20B-xB and Akuvox R20K (up to 5 modules per board) |
| Keypad | 6 mechanical call buttons with configurable LED illumination |

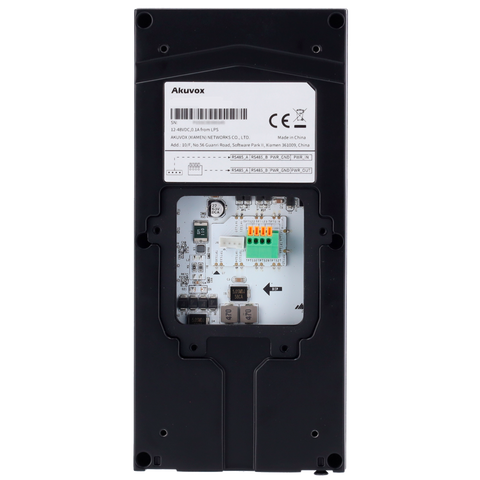

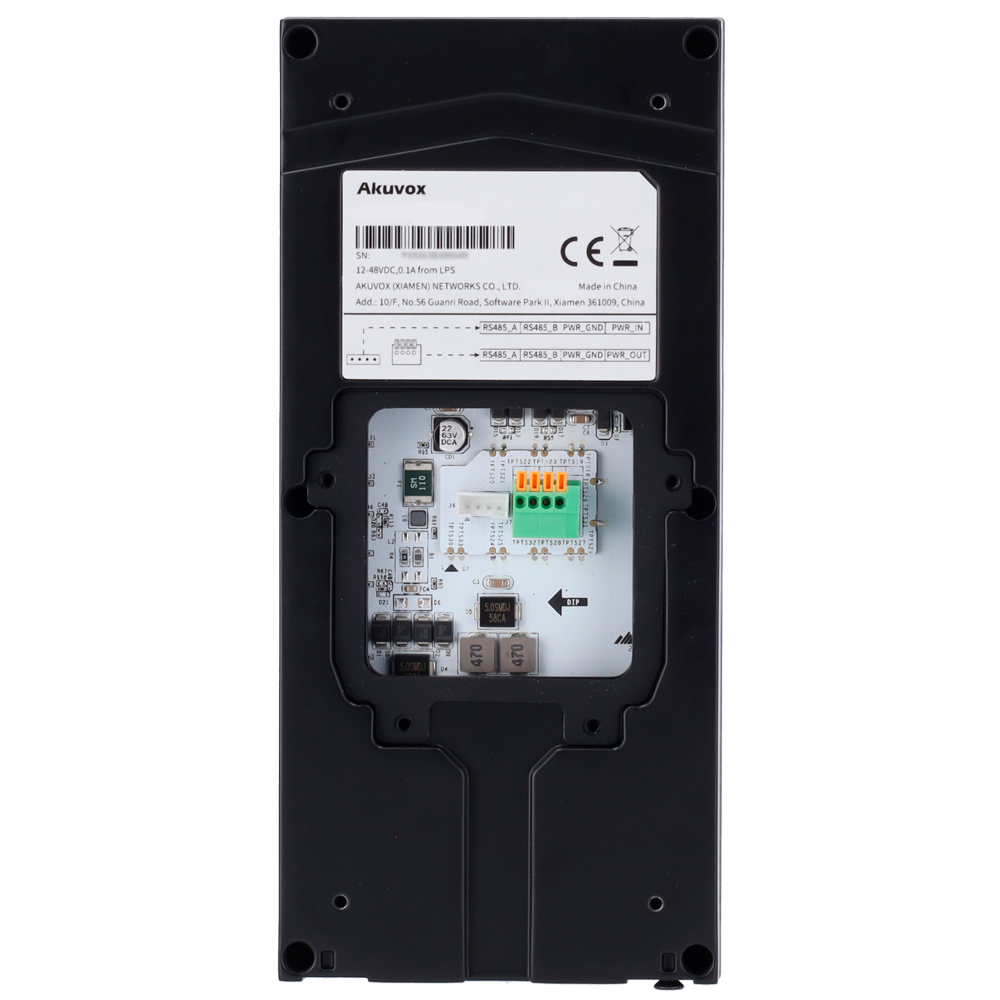

| Outputs | 1 x DC 12 V / 500 mA (for powering other modules), 1 x RS485 |
| Inputs | 1 x RS485 |
| Remote access | Configuration through WEB browser Remote access by Cloud: available (via main board) |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | In remote with cloud via installer account or via web browser locally (via main board) |
| Material | Aluminium alloy |
| Degree of protection | IP65 |
| Temp. operation | -30º C ~ +60º C |

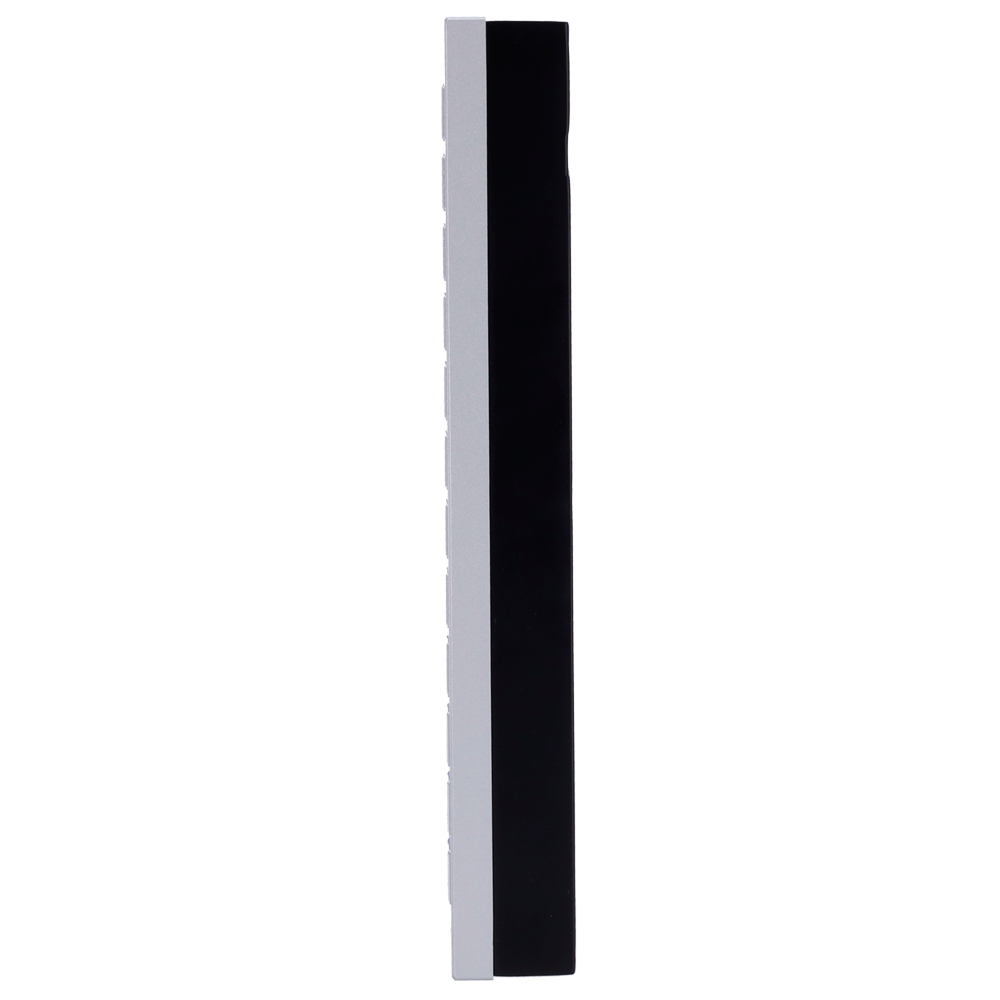

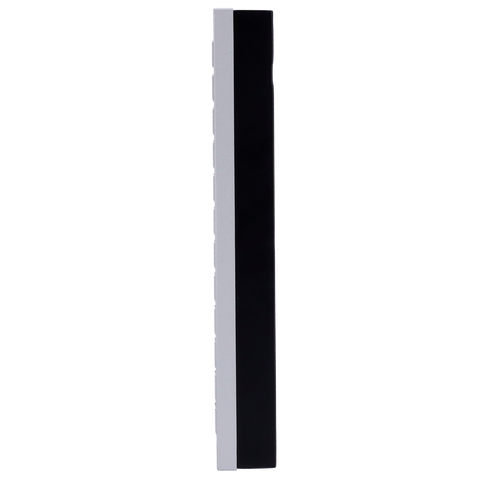

| Dimensions | 185 (H) x 85 (W) x 24 (D) mm |
| Power | DC 12 V / 600 mA max. |
| Weight | 600 g |
Package includes 📦
- Akuvox Video Door Station Extension Module
- User instructions
- Mounting material
