AJAX Starter Kit 2 Plus

  • SALE

In order to see prices please

or

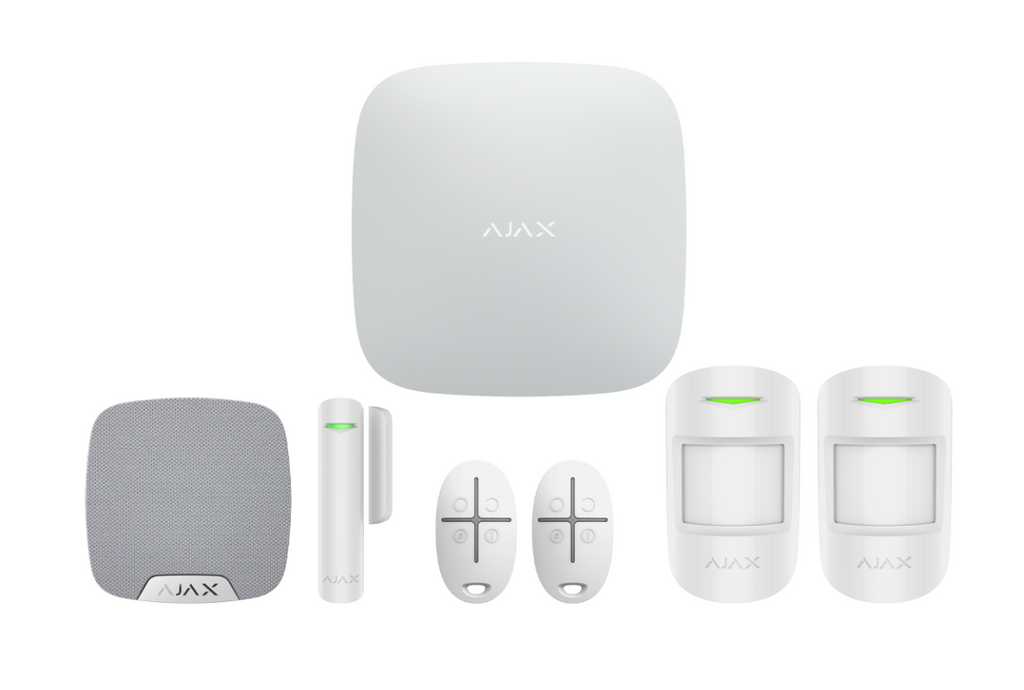

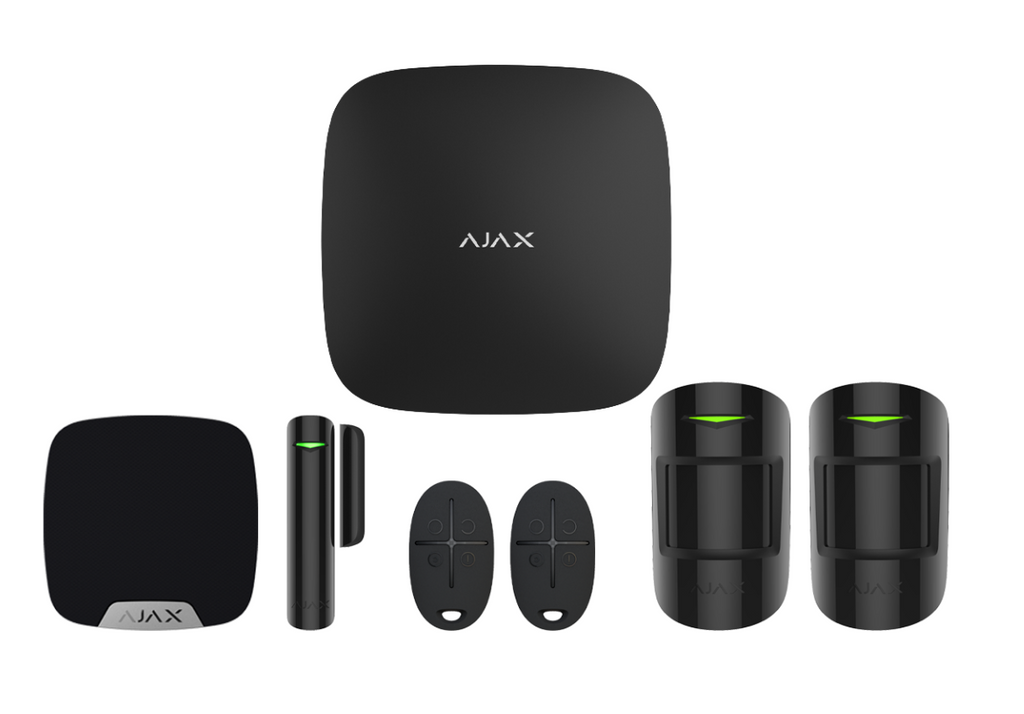

AJAX Starter Kit 2 Plus consists of:
 - 1x Hub Plus
 - 2x motion detectors
 - 1x opening detector
 - 1x home siren
 - 2x key fobs
with panic button



Assists in protecting the entrance from break-ins through windows and doors
Uses Wi-Fi, Ethernet, WCDMA and GSM to send alarms to the Central Monitoring Station and the system’s owner

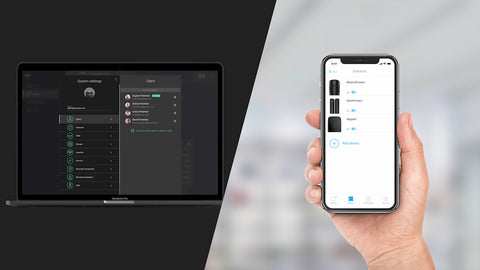

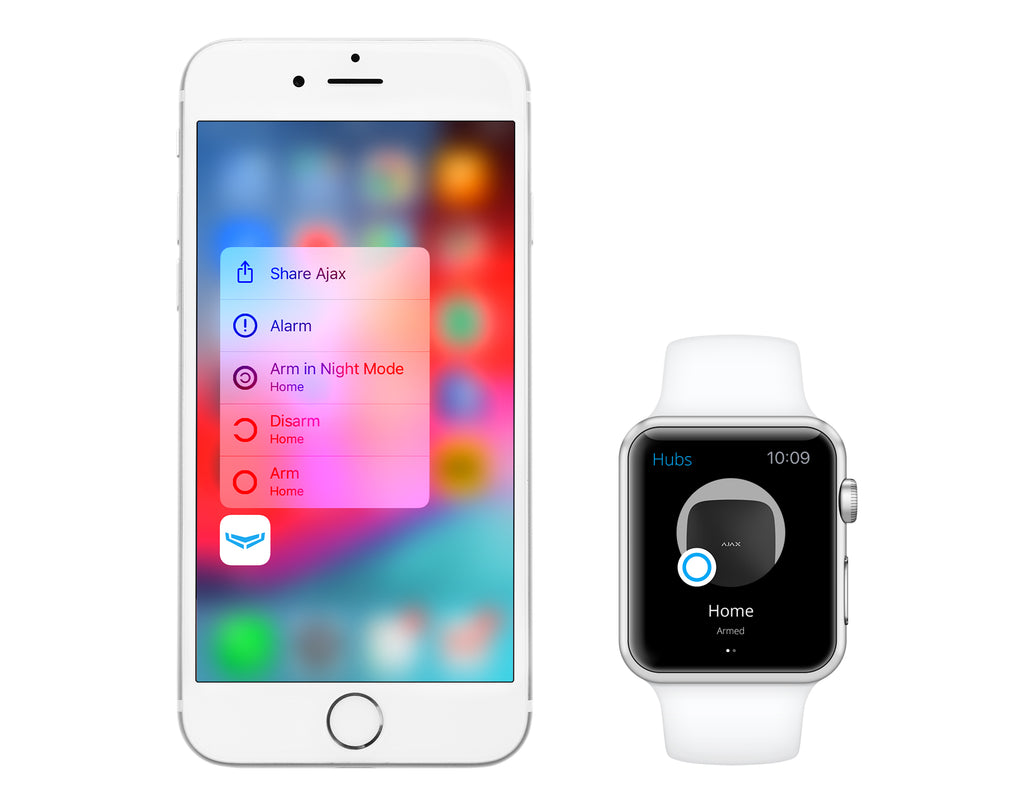

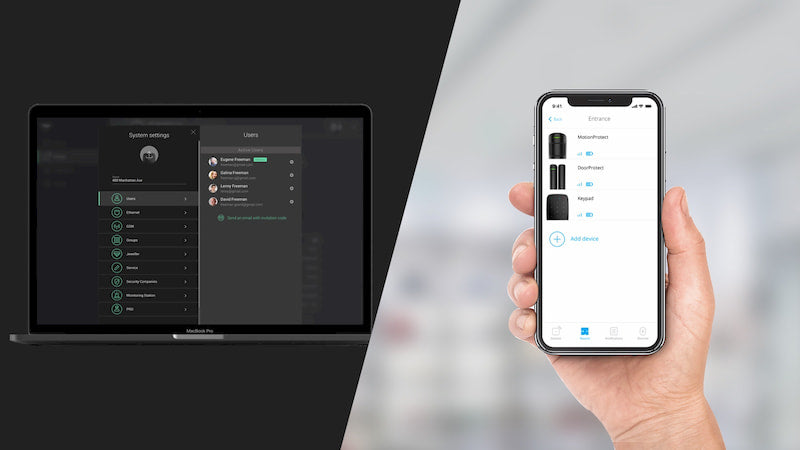

Is controlled using the mobile app and key fob


Protects large areas 🏬

The Hub Plus is designed to protect large facilities with a great number of rooms and people. New powerful processor and increased memory capacity have expanded the capabilities of the control panel: up to 150 detectors and 50 cameras can be connected to the Hub and you can add 99 users and create 25 groups for room security management.


Uses all possible alarm transmission methods 📶

The Hub Plus is the absolute leader in field in the number of communication channels: the control panel can be connected to the Internet via Wi-Fi, Ethernet, WCDMA, and GSM. Taken together, these functions ensure ultra-stable connection and instant alarm sending to the owner’s smartphone and the Central Monitoring Station.



Increases stability by 4 times 🍀

The Hub Plus is equipped with a GSM module with two SIM-card slots that support 2G and 3G networks. Now you can use SIM-cards of two different communications providers without any risk of communications failures. The Hub instantly switches between 2G and 3G networks. If one SIM card does not respond, the second one is activated automatically.


Improved reliability ⚡️

The Hub Plus makes it possible to use redundant Internet connection by connecting the central unit to networks of two independent communications providers: the main — via Ethernet, and the backup — via Wi-Fi. If connection of one provider fails, the hub will stay connected and continue monitoring the situation at the site.

Principle of operation ⚙️

The sensing detectors detect human presence and opening of the window or door. The hub sends notification of an alarm to the Central Monitoring Station (if connected) and the system owner's smartphone.


Features 🚀

The capabilities of the starter kit are extended due to connecting fire detectorsflood detectorsautomation devices and video cameras.

Ajax FireProtect


Ajax LeaksProtect


Ajax Relay


Safire CCTV Cameras


Installation and set up 👨‍🔧

The devices are installed within 30 minutes. The detectors are connected and set up using the mobile app and then mounted on the SmartBracket that comes with the kit.







Specifications 🤓

HUB Plus Control Panel
Wireless Security Control Panel with WiFi, 3G and dual SIM.
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Communication:2G (GSM900/DCS1800), 3G (WCDMA 900/ 2100 (B8/B1)), WiFi (802.11 b/g/n), Ethernet.
Maximum devices: 150.
Maximum groups: 25.
Number of users: Up to 50 users.
Housing material: ABS plastic.
Power supply: AC 110 ~ 250 V, 50/60 Hz.
Temp. Operation: 0 ° C ~ +50 ° C.
Dimensions: 162.7 x 162.7 x 35.9 mm.
Weight 330 g.

MotionProtect
Wireless Pet Immune Motion Detector.
Technology: Volumetric PIR.
PIR lens: 24 zones and 6 planes.
Detection field: 12 m / H: 88.5º / V: 80º / Installation 2.4 m.
Pet immunity: ≤ 20 kg, ≤ 50 cm.
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Transmission distance: ≤ 1700 m (in open space).
Sensitivity: Adjustable. 3 levels (low, medium and high).
Indication LEDs: Alarm, tamper, signal.
Battery: 1 battery CR123A 3.0 V (approximately 7 years).
Temp. Operation: 0 ° C ~ +50 ° C.
Housing material: ABS plastic.
Dimensions (without stand): 110 x 65 x 50 mm.
Weights: 86 g.

DoorProtect
Wireless Magnetic Door Detector.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 1 battery CR123A 3.0 V (approximately 7 years).
Housing material: ABS plastic.
Dimensions: 90 mm (Fo) x 20 (Ø) mm.
Weight: 29 g.

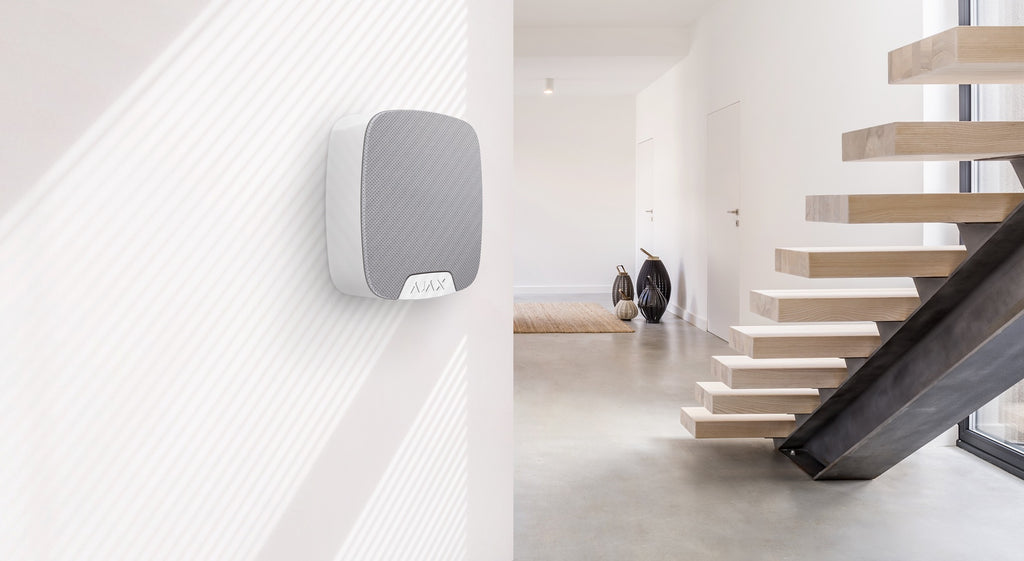

Indoor Siren
Wireless siren with the sound volume up to 105 dB.
Transmission distance: ≤ 1700 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 2 batteries CR123A 3.0 V (approximately 5 years).
Temp. Operation: 0º C ~ +50º C.
Housing material: ABS plastic.
Dimensions: 75 x 75 x 27 mm.
Weight: 96 g.

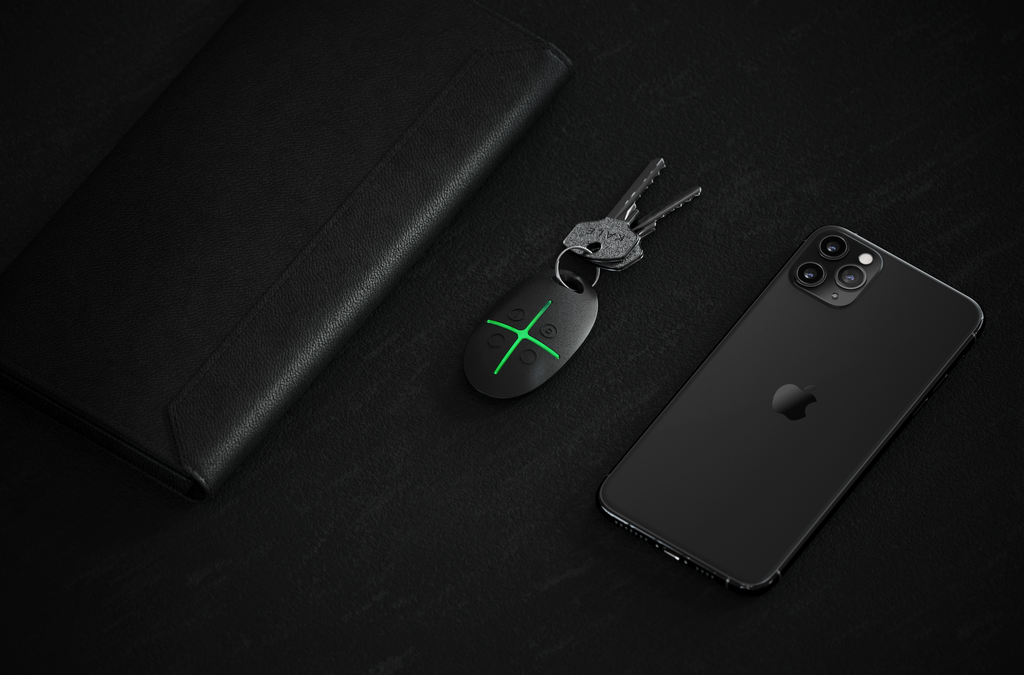

SpaceControl
Two-Way Wireless Key Fob.
Transmission distance: ≤ 1300 m (in open space).
RF Frequency: 868.0-868.6 MHz. Jeweller Protocol.
Battery: 1 battery CR2032A 3.0 V (approximately 5 years).
Temp. Operation: -20º C ~ +50º C.
Housing material: ABS plastic.
Dimensions: 65 x 37 x 10 mm.
Weight: 13 g.

Package includes 📦

- Ajax Hub Plus - 1 pc. Manual
- Ajax Wireless sensor for opening the door / window - 1 pc. Manual
- Ajax Wireless motion sensor - 2 pc. Manual
- Ajax Home Siren  - 1 pc. Manual
- Ajax SpaceControl remote control - 2 pc. Manual
- Power Plug cable - 1 pc.
- Ethernet cable - 1 pc.
