Wireless outdoor motion detector with a photo camera to verify alarms

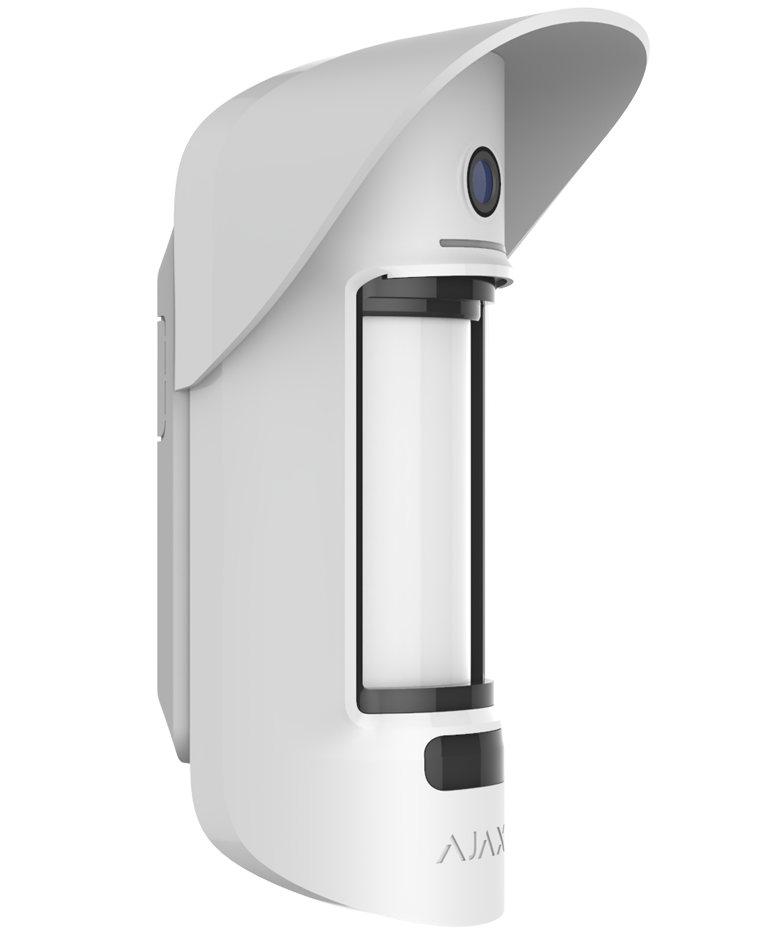

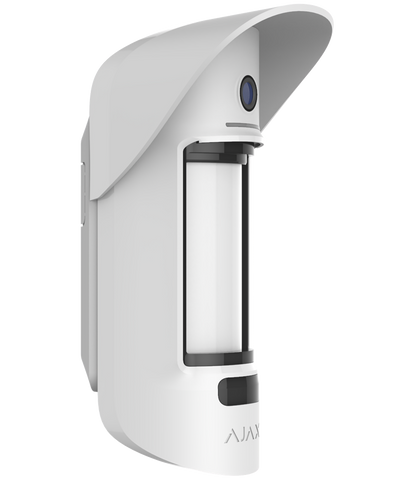

Ajax MotionCam Outdoor

Detects motion with a range of up to 15 meters for each optical system Works up to 3 years without battery replacement
Transmits alarms at a distance of up to 1,700 meters away from the hub

Lightning-fast alarms. Verified. ⚡️

MotionCam Outdoor recognizes intrusion from the very first steps on the territory and confirms it with an animated series of photos. Visual verification helps to instantly ascertain the situation, saving users from concerns, and security companies from unnecessary patrol dispatches.


Don't miss a thing ✅

Combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative pictures in any weather, day or night.

  • HDR camera
  • IR backlight
  • Series of 2–5 photos



Ajax MotionCam Outdoor

Intelligent false alarm filter 🔕

MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which helps to instantly distinguish real threats from interferences.

Spectrum analysis 🧐

When both sensors detect motion, but the correlational analysis doesn’t identify enough similarities, LISA compares frequency components in the signals of both sensors.


Multilevel anti-sabotage protection 🛡

MotionCam Outdoor can not be unnoticeably disabled even if the system is disarmed. The detector is equipped with masking sensors reacting to hindering, covering and painting the lens.

It will take the hub less than a minute to detect the loss of communication with the detector and inform a central monitoring station and users about the problem. The fact that MotionCam Outdoor was dismantled will become known instantly.

  • Anti-masking system
  • Notifications about detachment
  • Configurable detector ping interval



Effective security in any weather ⛈

MotionCam Outdoor resists the heat up to +60°С and withstand the cold down to −25°С. And to protect the sensors of the anti-masking system from rain and snow, we included a special hood.
  • Efficiency in heat and cold
  • IP55 enclosure protection
  • Bundled hood to protect from rain and snow

Ajax MotionCam Outdoor

Uncompromising communication reliability 📶

MotionCam Outdoor uses two secure radio protocols simultaneously: Jeweller and Wings. Radio protocols work independently of each other and each is focused on its own function. Jeweller transmits alarms in 0.15 seconds, and thanks to Wings, the first shot from the site will be in the app in less than 9 seconds.
The radio signal range is sufficient to install the detector where it will be most effective. And up to 3 years of battery life minimizes maintenance efforts.
  • Two-way communication at a distance of up to 1,700 meters
  • Photo delivery in less than 9 seconds
  • Up to 3 years of battery life.



Less manual labor. More settings in the app. 📱

The process of connecting and configuring MotionCam Outdoor saves installation engineers time in the best possible way. To add a detector to the system, all you have to do is scan the QR code with the Ajax app, assign a name and a room to it. Configure the device in the app in real time,test detection zones and communication. If necessary, the detector can be disabled or its system parameters can be reconfigured remotely, without visiting the site.

Ready to operate straight out the box ✅

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Ajax MotionCam Outdoor

Technical Specifications 🤓

Classification Radio-interlinked photoelectric security detector
Installation method Outdoors and indoors
Type of detector Wireless
Compatibility

Hub 2, Hub 2 Plus, ReX 2

Doesn’t work with ReX range extenders

Sensing element Two IR sensors
Sensitivity Adjustable, 3 levels
Motion detection distance

3 to 15 meters when installed at 0.8–1.3 meters (set by user)

1 to 13 meters when installed at 0.5 meters (set by user)

Horizontal viewing angle of the detector 90°
Motion detection speed From 0.3 to 2.0 m/s
Pet immunity option

Yes. When installed at 0.8–1.3 meters and set up correctly, the detector ignores animals up to 80 centimetres tall

Camera angle
  • Horizontal — 105°
  • Vertical — 50°
TV distortion (EBU standard) Barrel — 77%
Sending photo in case of alarm Photo resolution:



  • 320 × 176 pixels (default)
  • 640 × 352 pixels

Shooting series of up to 5 photos

Infrared backlight for shooting in the dark Yes
Protection against false triggering +
Tamper protection +
Protection against masking +
Temperature sensor +
CMS compatibility

Motion alarms are transmitted to CMSs that support SIA (DC-09) and Contact ID protocols

Radio communication protocols with Ajax detectors and devices

Jeweller — for transmitting events and alarms.

Wings — for transmitting photos.

Radio frequency band 866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale.
Maximum radio signal strength ≤ 20 mW
Radio signal modulation GFSK
TDMA +
Radio signal range

Up to 1,700 m (without obstacles)

Ping interval From 12 to 300 seconds
Power supply 4 CR123 batteries
Power supply voltage 6 V
Battery life

Up to 3 years (up to 2.5 years with Entry Delay setting enabled)

Protection class IP55
Operating temperature range From –25°C to +60°C
Operating humidity Up to 95%
Dimensions 206 × 108 × 93 mm
Weight 470 g
Service life 10 years
