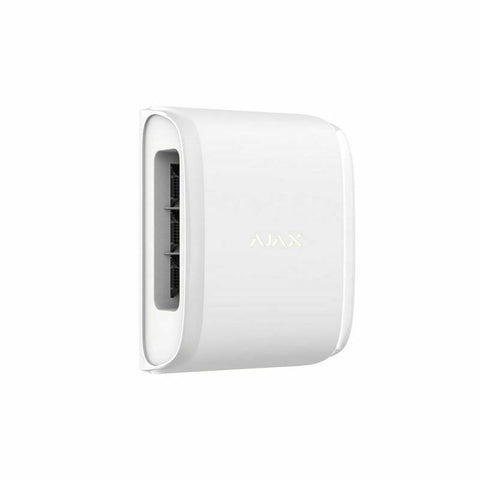

Wireless outdoor bidirectional curtain motion detector

AJAX DualCurtain Outdoor

Detects motion with a range of up to 15 meters for each optical system Works up to 4 years without battery replacement
Transmits alarms at a distance of up to 1,700 meters away from the hub

Protecting property boundaries

DualCurtain Outdoor controls your property perimeter without creating obstacles for people who are already inside. Two independent optical systems with narrow viewing sectors and flexible settings allow you to accurately adjust 30 meters of the detection zone, excluding possible sources of false alarms. The ELSA (Extended Live Signal Analysis) unique software reacts to intruders, screening out triggers like natural interferences and pets.

AJAX DualCurtain Outdoor

Engineering accuracy

On the sides of the detector there are two optical systems with narrow viewing sectors, each equipped with two PIR sensors. Thanks to temperature compensation, detection is always accurate. Sensor signals are analyzed by our new ELSA digital algorithm. Only if two sensors of the same optical system simultaneously capture human motion, the detector activates an alarm.

Efficiency in the near area

DualCurtain Outdoor features a technology to expand the protected area, which is unique among outdoor curtain motion detectors. When Near Area Detection is enabled, the detector’s upper PIR sensor receives an additional narrow viewing sector directed at the angle of 40 degrees down against the main sector. The feature allows both sensors to detect movement when a human crosses the protected perimeter closely to the detector’s body, addressing the problem of the blind spot, which is a typical problem of such detectors.

Near Area Detection is designed to protect windows and other passages that animals have no access to. The proximity of the detection zones’ vectors significantly reduces the efficiency of pet immunity.

Near Area Detection technology is supported by both DualCurtain Outdoor optical systems

One enclosure. Two independent detectors.

The detection range of the two optical systems is adjusted independently. It allows you to precisely set the perimeter guarded by DualCurtain Outdoor and avoid false alarms caused by a bush swaying in the wind or people passing on a public sidewalk. So that the detector’s field of view is not blocked by a column or downpipe on a facade, the optical systems can be shifted vertically. In the app, you can adjust the sensitivity or deactivate one of the optical systems.

Resistant to attacks

DualCurtain Outdoor can not be unnoticeably blinded or disabled even if Ajax is disarmed. Detector’s optical systems are reinforced with advanced masking sensors that respond to obstacles, covering and painting the lenses. The tamper will not allow to unnoticeably remove the device from the mount. And even if the detector is instantly destroyed, it will take the hub less than a minute to detect the loss of communication and inform a central monitoring station and users about the problem.

Outstanding autonomy

Due to its low energy consumption, DualCurtain Outdoor operates for years from pre-installed batteries. A monitoring station and users will be warned in advance about the need for the device maintenance.

  • Up to 4 years of battery life
  • Charge level in the app
  • Low battery notification

Installation without brain teasers

The process of connecting and configuring DualCurtain Outdoor saves the installation engineer’s time in the best possible way. To add a detector to the system, all you have to do is scan the QR code with the Ajax app, assign a name and a room to it. Configure the device in the app in real time while testing detection zones and communication. If necessary, the detector can be disabled or its system parameters can be reconfigured remotely, without site visits.

AJAX DualCurtain Outdoor

Specifications 🤓

Classification Electro-optical radio channel security detector
Type of detector Wireless
Installation method Indoors / outdoors
Compatibility Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
Sensing element 4 × PIR sensor
Motion detection distance From 4 to 15 m (depending on settings) for each optical system
Protection against false alarms Available
Alarm signal delivery time 0.15 s
Detection angle Horizontal — 4.5°
Vertical — depending on settings
Time for motion detection From 0.3 to 2 m/s
Sensitivity Adjustable, 3 levels
Power supply 2 × CR123А batteries, 3 V
Battery life Up to 4 years
Temperature sensor Available
Jeweller radio technology Communication range a control panel — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0–868.6 MHz (depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector ping interval — 12−300 s
Frequency hopping
Operating temperature range From −25°С to +60°С
Permissible humidity Up to 95%
Protection class IP54
Anti-sabotage Protection against forgery
Jamming detection
Dimensions 174 × 123 × 88 mm
Weight 615 g
Service life 10 years
Complete set DualCurtain Outdoor motion detector
SmartBracket mounting panel
2 × CR123A batteries (pre-installed)
Installation kit
User guide
