Features 🚀
- Hikvision
- Video Intercom Kit
- 4-Wire Analog Technology

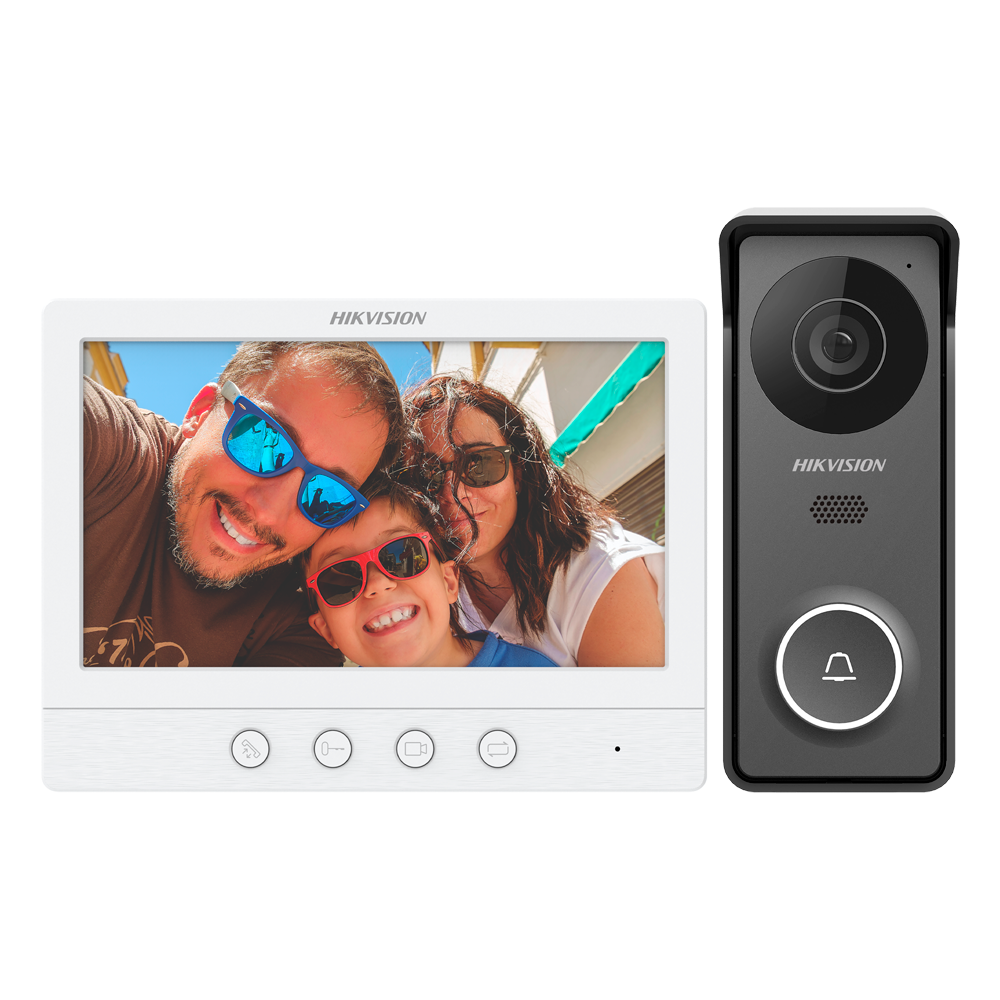

- Kit includes: DS-KB2422T-IM(B) surface-mounted outdoor video intercom panel with HD TVI camera and DS-KH2230T(B) indoor monitor with 7" TFT LCD screen and physical keypad
- Plug & Play Installation
- Allows adding up to 2 additional monitors as extensions
Specifications 🤓
DS-KB2422T-IM(B) |
|
| Brand | Hikvision |
| Model | DS-KB2422T-IM(B) |
| Operating System | Embedded analog operating system |
| Image sensor | HD TVI IR |
| Viewing angle | H: 117º, V: 70º, D: 141º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical call button |
| Ports | 1 x port for a relay |
| Inputs | 1 x 4 wires |
| Communication | 4 wires |
| Power source | DC 12 V / 330 mA max. (via 4-wire monitor) |
| Protection degree | Suitable for outdoors IP65 |
| Material | aluminum alloy Anti-vandal IK08 |
| Temp. funcionamiento | -30 ºC ~ +60 ºC |
| Dimensions | 145 (H) x 55 (W) x 24 (D) mm |
| Weight | 200 g |
DS-KH2230T(B) |
|
| Brand | Hikvision |
| Model | DS-KH2230T(B) |
| Operating System | Embedded analog operating system |
| Type de pantalla | TFT de 7" a color |
| Screen resolution | 1024 x 600 |
| Operation mode | 4 physical buttons |
| Ports | 2 x 4 wires for external panels, 1 x analog camera |
| Outputs | 2 x 4 wires for indoor monitor |
| Audio | Two-way audio with integrated microphone and speaker |
| Connection | 4 wire analog |
| Power supply | DC 12 V / 420 mA max. |
| Temp. funcionamiento | -10 ºC ~ +50 ºC |
| Dimensions | 178 (H) x 132 (W) x 19 (D) mm |
| Weight | 335 g |
| Color | Black |
Package includes 📦
- Hikvision Surface-Mount Outdoor Video Intercom Panel
- Surface Mounting Bracket
- Vizor
- Hikvision Indoor Monitor
- 5-meter, 4-wire Cable
- Power Supply
