Features 🚀
- Akuvox
- Video intercom kit
- Technology 2 wires & WiFi

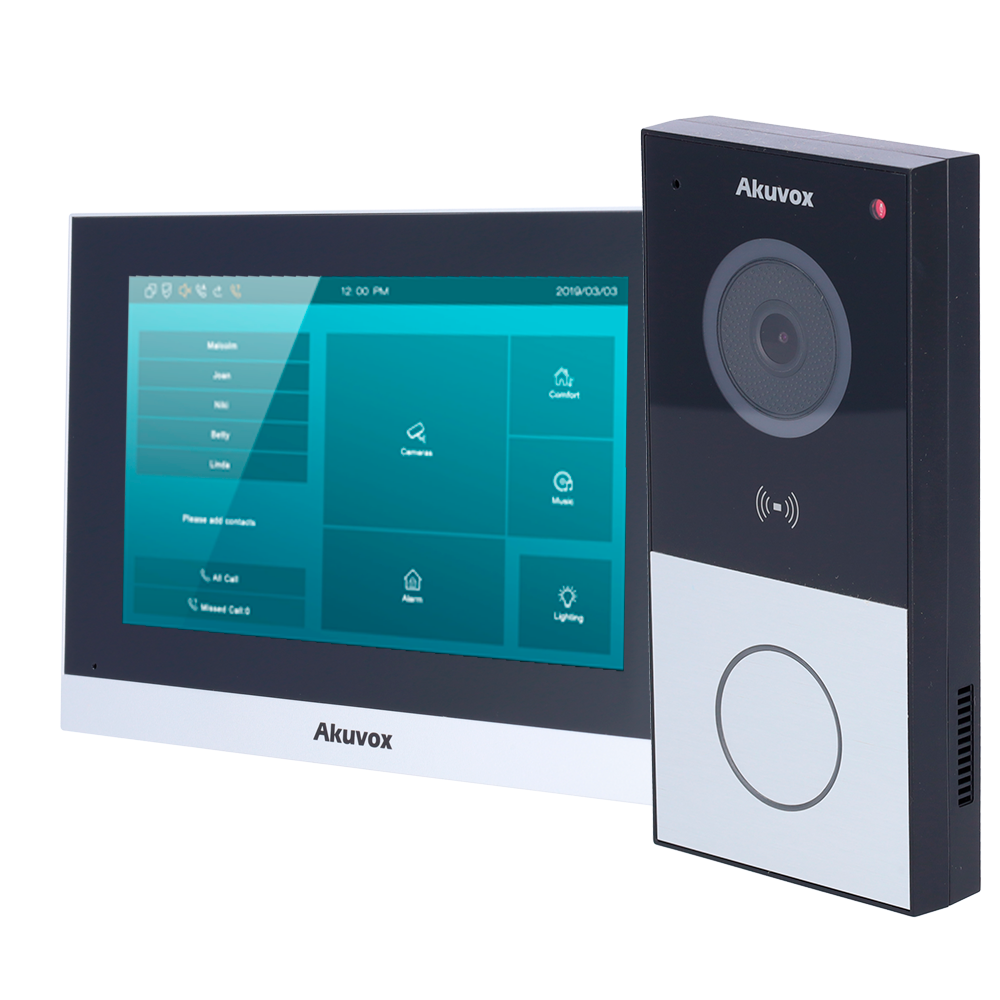

- Kit consisting of: AKUVOX E12S-2 outdoor surface video door entry panel with 2 Mpx HD camera and AKUVOX C313W-2 indoor WiFi monitor with 7" TFT LCD screen
- MF Card reader, NFC and Bluetooth
- Complete configuration via web browser
- Push notifications and device-to-device calls through SmartPlus app
- 4 free users included per house
- Call and user directory
- Firmware upgrades via cloud with installer control
- ONVIF protocol for integration with video surveillance recorders
- Connection between boards and monitors via cloud in different networks
- Remote configuration access for installation
- Connection distance up to 100 meters between board and monitor with good quality cable
Specifications 🤓
AKUVOX C313W-2 |
|
| Brand | Akuvox |
| Model | C313W-2 |
| Operating system | LINUX OS |
| Hardware | RAM: 64 MB | ROM: 128 MB |
| LCD | 7" TFT 800 x 480 |
| Capacity | Contacts: 500 Messages: 100 Call records: 100 |
| Operation mode | Capacitive touch panel |
| Inputs | 8 x configurable alarm and 1 x buzzer |
| Outputs | 1 x relay |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722, DTMF (RFC2833), SIP Info |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n |
| Ports of 2-hilos | 2 port pairs: own power supply and power supply from external board or monitor |
| Power | DC 24 V / 48 V | 600 mA max. |
| Temp. operation | -10 oC ~ +45 oC |
| Dimensions | 200 (W) x 132 (H) x 27 (D) mm |
| Weight | 600 g |
AKUVOX E12S-2 |
|
| Brand | Akuvox |
| Model | E12S-2 |
| Access control | Door opening with MF card 13.56 MHz, NFC and Bluetooth, with records |
| Capacity | Contacts: 1.000 RFID users: 5.000 card(s) |
| Keypad | Mechanical call button with configurable LED illumination |
| Outputs | 1 x relay for lock and 1 x Wiegand OUT |
| Inputs | 2 x output pushbutton and 1 x Wiegand IN |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor |
| Viewing Angle | 123° (H) / 69° (V) |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 y H.265 |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722, DTMF (RFC2833), SIP Info |
| Memory | MicroSD slot up to 32 GB |
| Network interface | RTSP |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Plastic |
| Degree of protection | IP65 |
| Temp. operation | -40 oC ~ +55 oC |
| Dimensions | 146 (H) x 70 (W) x 23 (D) mm |
| Power | DC 24 V / 48 V | 1000 mA max. |
| Weight | 600 g |
Package includes 📦
- Akuvox external plate for surface installation
- Akuvox indoor monitor
- DC power supply 24V (1.67 A / 40 W)
