Features 🚀
- Akuvox

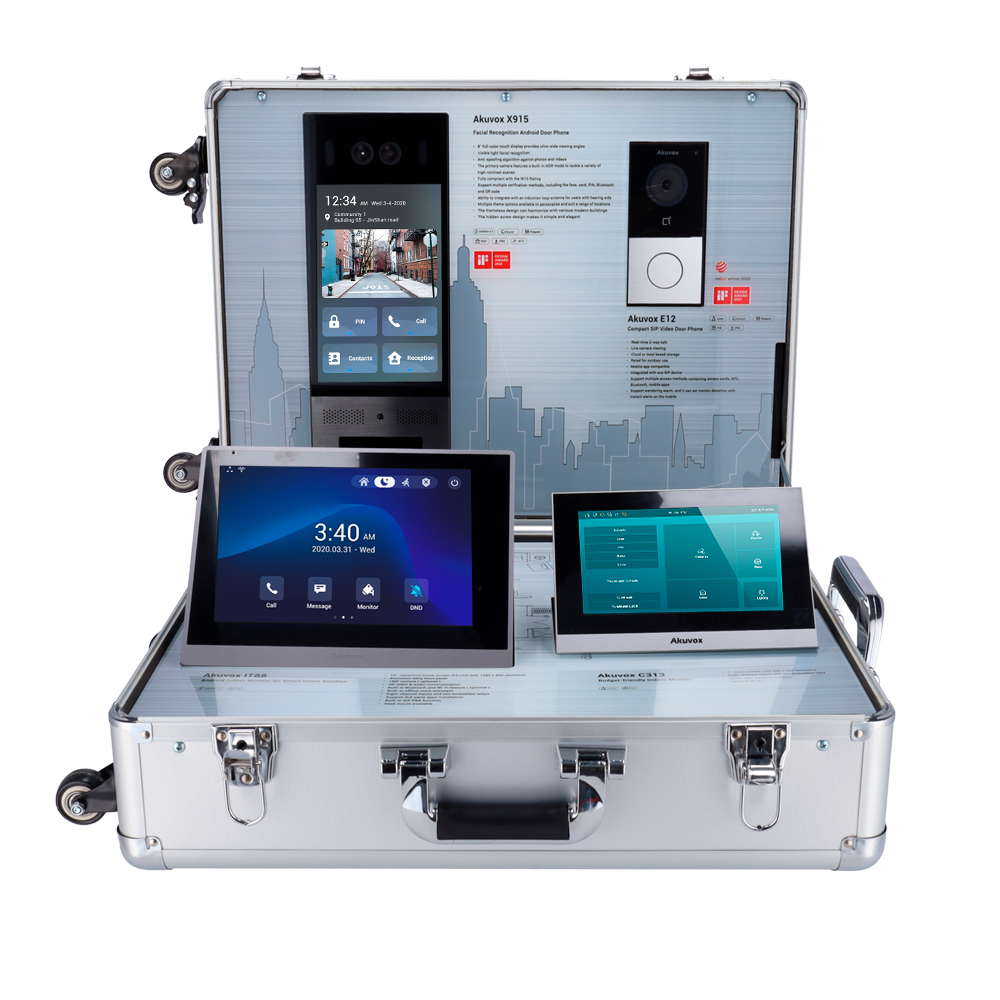

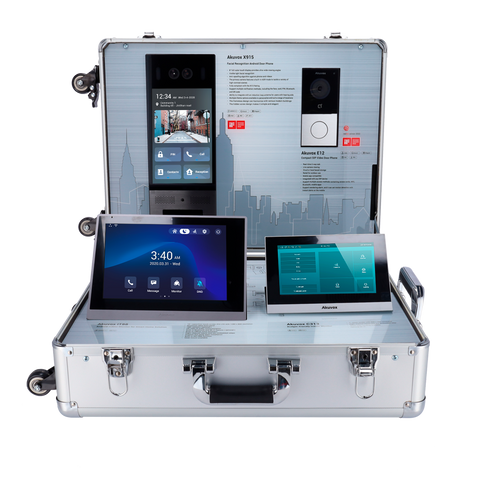

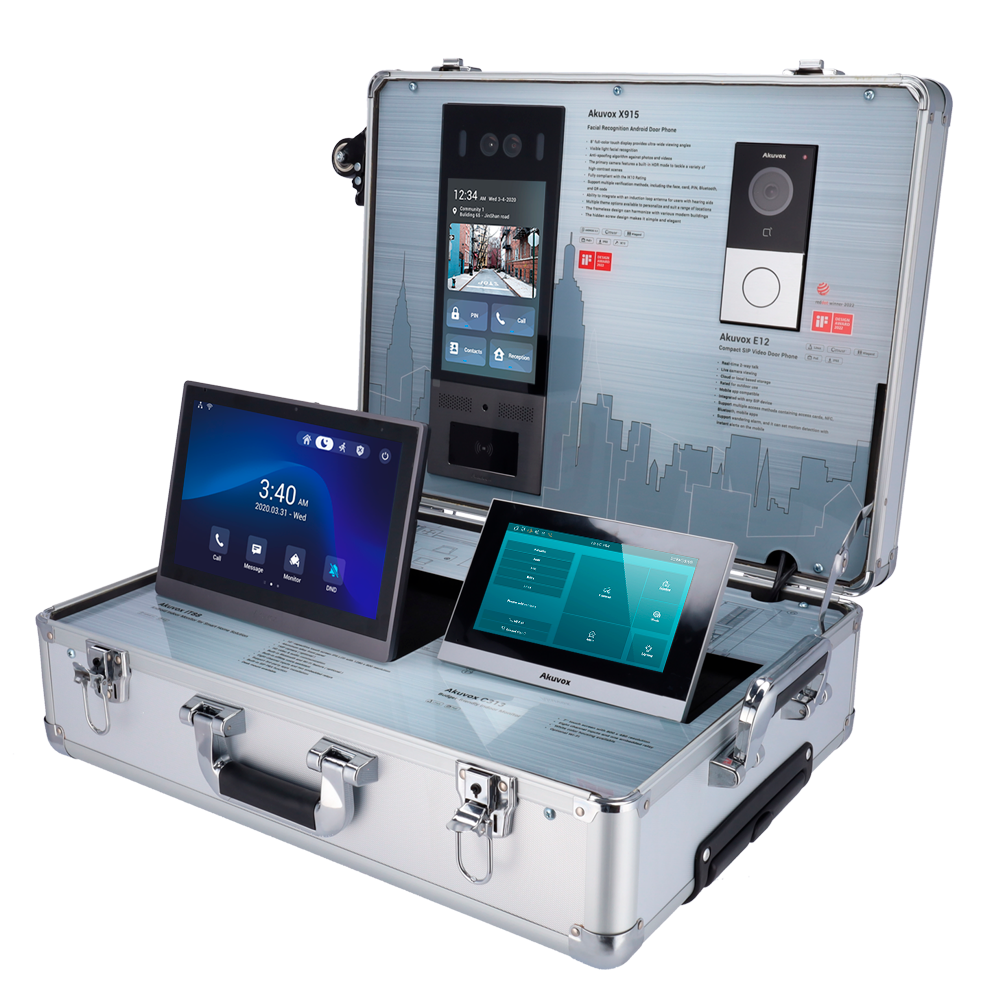

- Comprehensive display case for Akuvox video door entry systems
- Designed for the realization of DEMOs for professional customers
- High quality finishes

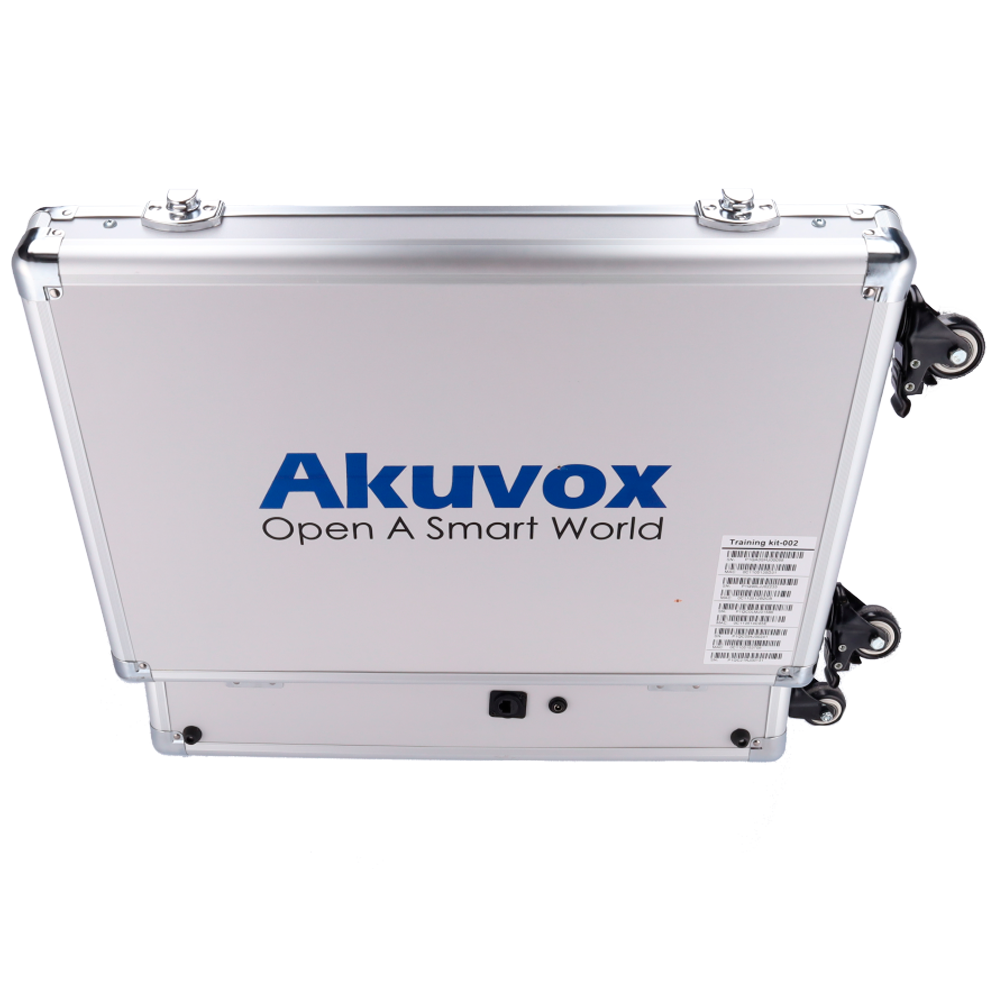

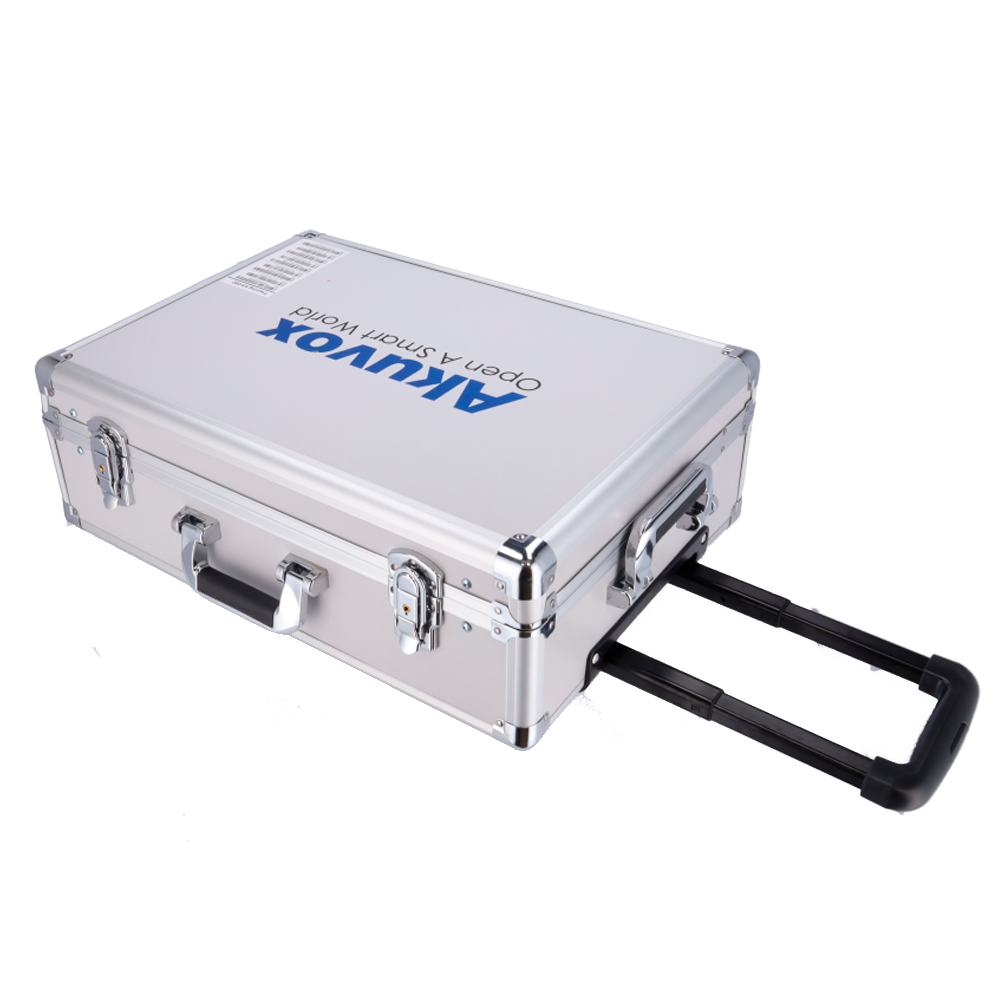

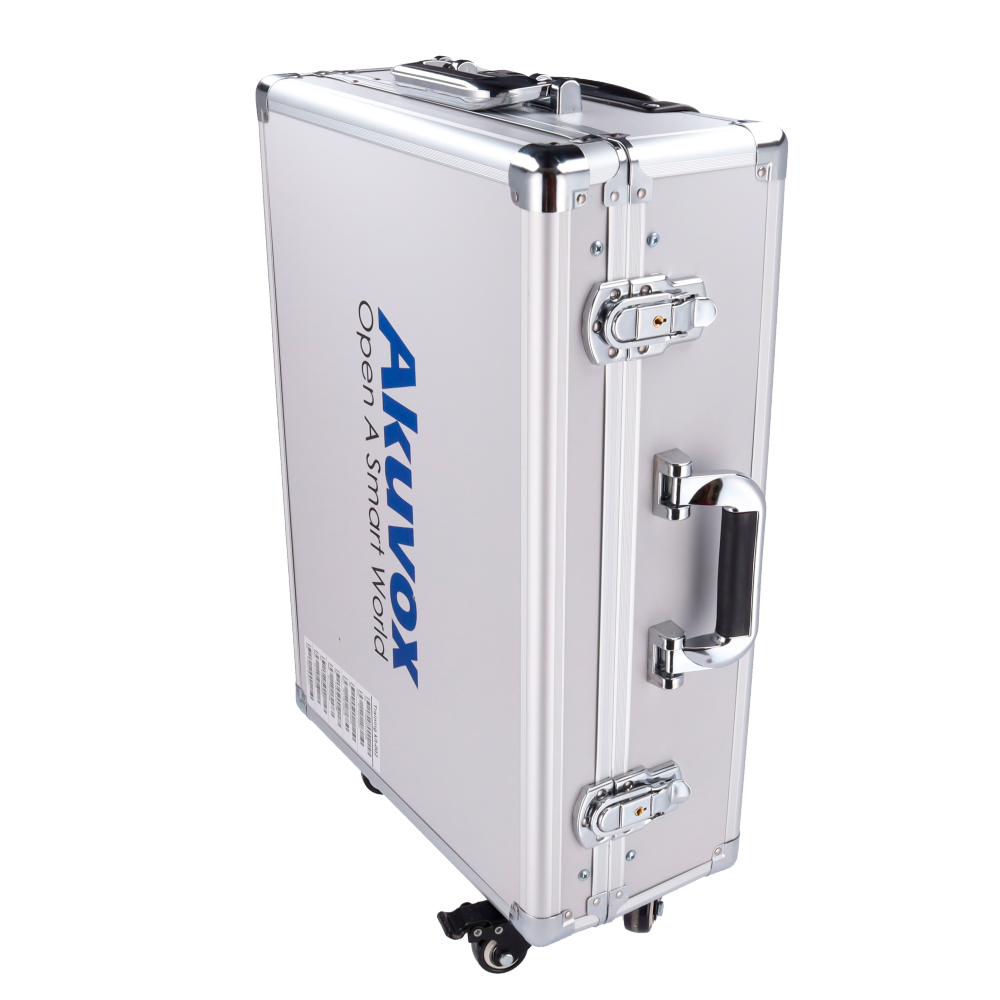

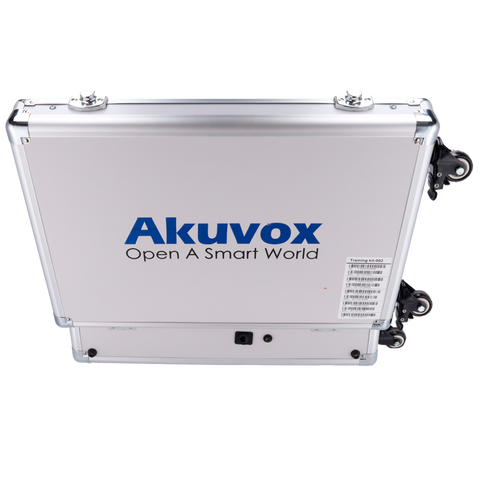

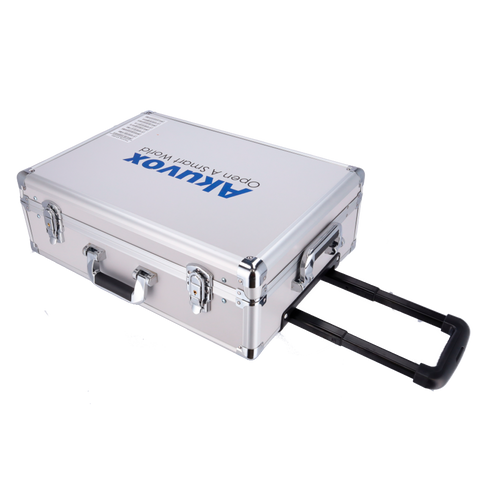

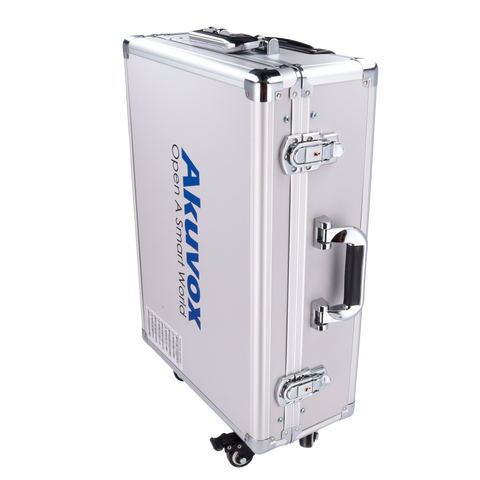

- Sturdy aluminium briefcase with handle and wheels
- Devices: external plates AK-X915S and AK-E12S and monitors AK-IT88A and AK-C313S
- Accessories: PoE switch, WiFi router, power strip and 6 ethernet cables

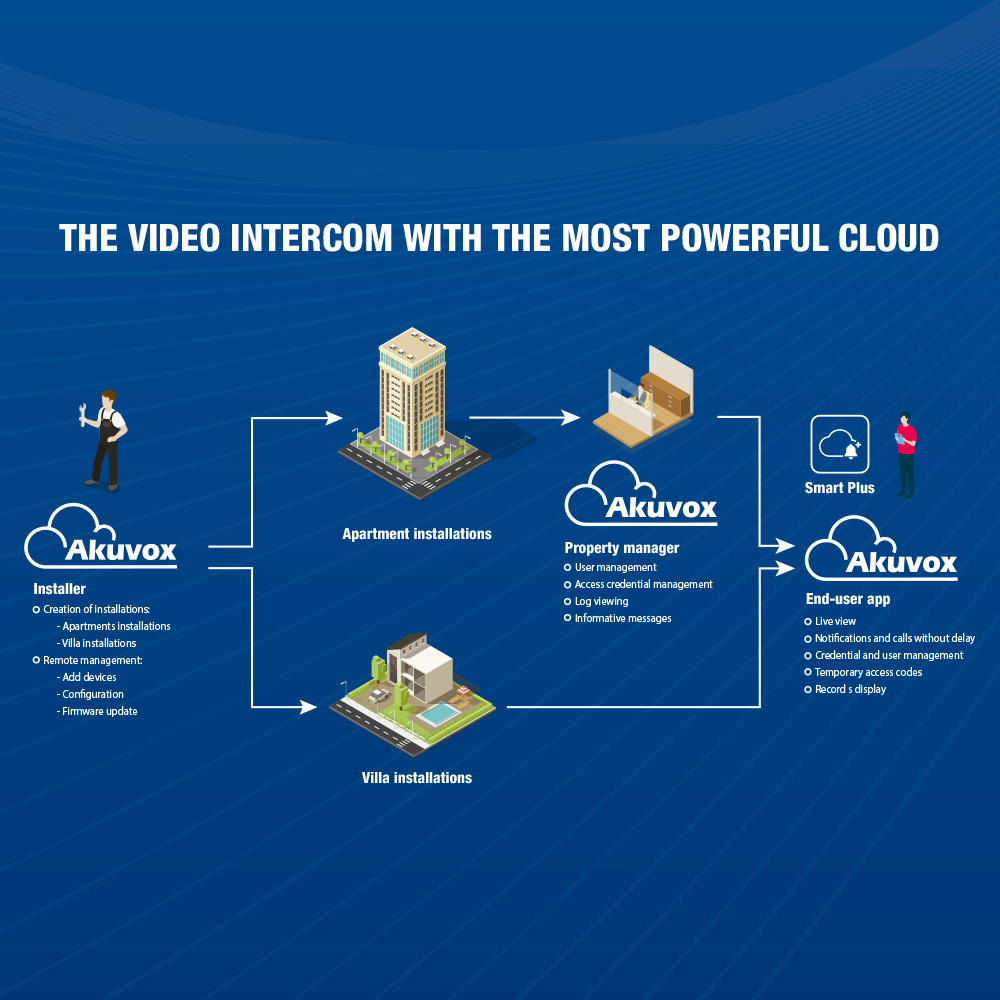

- Free trial license of Akuvox Cloud services included
- Akuvox Real demonstrations
- Plug & Play installation
- Management with Akuvox SmartPlus mobile app
Specifications 🤓
Briefcase |
|
| Dimensions | 540 (H) x 386 (W) x 178 (D) |
| Material | Aluminium |
| Weight | 14 kg |
AK-C313S |
|
| Brand | Akuvox |
| Model | C313S |
| Operating system | LINUX OS |
| Hardware | RAM: 64MB | ROM: 128MB |
| LCD | 7" TFT 800x480 |
| Operation mode | Capacitive touch panel |
| Inputs | 8 Configurable alarm inputs and 1 buzzer inputs |
| Outputs | 1 of relay |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: does not have |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Power | DC 12 V /600 mA / standard PoE (IEEE802.3af) |
| Temp. operation | -10º C ~ +45º C |
| Dimensions | 200.2 (W) x 132.2 (H) x 27.2 (D) mm |
| Weight | 600 g |
AK-X915S |
|
| Brand | Akuvox |
| Model | X915S |
| Access control | Door opening with facial recognition, RFID card EM 125 kHz and MF 13.56 MHz, BLE, QR and PIN, with records |
| Capacity | Contacts: 3.000 RFID users: 20.000 faces and 20.000 cards/passwords |
| Screen | Android 8" IPS LCD full colour touch |
| Outputs | 3 x lock relay (12V/1A), 1 x Wiegand OUT, 1 x RS485 and 1 x magnetic loop |
| Inputs | 3 x output pushbutton and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Project) |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.8" 2 Megapixel CMOS with infrared sensor and light sensor Starlight and HDR technology |
| Viewing angle | 115° (H) / 63° (V) |
| Camera resolution | 1920x1080 - 30fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Secondary camera | 2 Mpx for anti-spoofing technology |
| Video encoding | H.264 |
| Audio | Two-way audio with dual microphone and dual loudspeaker with noise reduction and Crystal Clear Audio technology Automatic voice detection |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Anti-corrosion steel SUS316 |
| Degree of protection | IP65 and IK10 |
| Temp. operation | -30 ºC ~ +60 ºC |
| Dimensions | With surface support: 350 (H) x 130 (W) x 42 (D) mm With flush mounting bracket: 350 (H) x 130 (W) x 54 (D) mm |
| Power | DC 12 V / 1500 mA max. / PoE+ IEEE802.3at |
| Weight | 2000 g |
AK-E12S |
|
| Brand | Akuvox |
| Model | E12S |
| Access control | Door opening with MF card 13.56 MHz, NFC and Bluetooth, with records |
| Capacity | Contacts: 1.000 RFID users: 5.000 card(s) |
| Keypad | Mechanical call button with configurable LED illumination |
| Outputs | 1 x relay for lock and 1 x Wiegand OUT |
| Inputs | 2 x output pushbutton and 1 x Wiegand IN |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor |
| Viewing Angle | 123° (H) / 69° (V) |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 and H.265 |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Memory | MicroSD slot up to 32 GB |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Plastic |
| Degree of protection | IP65 |
| Temp. operation | -40 ºC ~ +55 ºC |
| Dimensions | 146 (H) x 70 (W) x 23 (D) mm |
| Power | DC 12 V / 1000 mA max. / IEEE802.3af PoE |
| Weight | 600 g |
AK-IT88A |
|
| Brand | Akuvox |
| Model | IT88A |
| Operating system | Android 9.0 |
| Hardware | RAM: 2GB | ROM: 8GB |
| Camera | 1 MP CMOS |
| LCD | 10" IPS 1280x800 |
| Capacity | Contacts: 3000 Messages: 1000 Call records: 1000 |
| Operation mode | Capacitive touch panel |
| Inputs | 8 configurable alarm inputs and 1 buzzer inputs |
| Outputs | 2 of relay |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Storage | MicroSD slot |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n |
| Power | DC 12 V / 600 mA / Standard PoE (IEEE802.3af) |
| Temp. operation | -10º C ~ +45º C |
| Dimensions | 251 (W) x 183 (H) x 30 (D) mm |
| Weight | 750 g |
| Material | Brushed aluminium |
Package includes 📦
- Briefcase with wheels
- Video door entry monitor 7"
- Video door entry monitor 10"
- Video door entry panel villa
- Video door entry panel for apartments
- WiFi Router
- PoE Switch
- Ethernet cable x 6
- Power strip
- Free Akuvox Cloud Services license
