Features 🚀
- Safire Smart
- Server with VMS installed
- Up to 1000CH
- 768 Mbps bandwidth supported
- Maximum resolution 16 Megapixel
- 4 HDMI outputs and 1 VGA output
- Supports up to 16 videowall decoders
- Up to 64 users accessing simultaneously
- Intelligent searches of humans, vehicles and two-wheelers
- Facial recognition
- Dewarping for Fisheye cameras
- 2x RJ45 Ethernet ports
- Alarms
- Space for 8 HDD
- RAID
- Redundant power supply
- ONVIF Compatible
Specifications 🤓
System |
|
| CPU | ARM 8-Core 64bit AI |
| Memory | LPDDR4 8G, 64GB EMMC |
| Operating system | Linux |
Video and Audio |
|
| Display resolution | HDMI1 : 7680x4320@60/30, 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 HDMI2 : 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 HDMI3 : 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 HDMI4 : 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080 *HDMI 1 and VGA output the same video source |
| Multi-Screen | HDMI main output 1: 1 / 4 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16 / 24 / 25 / 33 / 36 (Live View) HDMI output 2: 1 / 4 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16 / 25 / 36 (Live view) HDMI output 3: 1 / 4 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16(Vista live) HDMI output 4: 1 / 4 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16 (Live View) |
| Video compression | H.264/H.265/H.265+/H.265S |
| Recording method | Manual, programmed, motion detection, smart events, alarm input, POS |
| Audio output | 1CH of audio output (MONO) HDMI 1 support audio output |
| Audio Compression | G.711(U/A) |
Live view |
|
| Maximum number of CH in | 104 (36 + 36 + 16 + 16) |
| Maximum resolution | 16 Mpx |
| Decoding capacity | 1x 16Mpx or 4x 12Mpx or 6x 8Mpx (Only available for main output) |
Reproduction |
|
| Simultaneous playback | 16CH |
| Decoding capacity | 1x 16Mpx or 4x 12Mpx or 6x 8Mpx (Only available for main output) |
Performance and capabilities |
|
| Max. access. of users | 64 |
| Max. online users. | 64 (with simultaneous live display) |
| Max. number. of channels | 1000 CH |
| Max. number. of devices | 256 devices |
| Max. number. of decoding outputs | 64 |
| Max. number. transfer server access | 1 |
| Max. number. of storage servers | 1 |
| Max. number. channel recording per server | 128 |
| Max. number. of channels by third party protocols | 1000 |
| Max. number. of devices by third-party protocol | 256 |
| Max. number. of channels in simultaneous live playback | 256 (per customer / user) |
| Max. number. of channels in simultaneous recording playback | 16 (per customer / user) |
| Maximum number of views | Up to 64 views |
| Bandwidth | 768 Incoming Mbps / 256 Outgoing Mbps |
| Storage bandwidth | 512 Mbps |
| Face database | 50.000 faces can be registered Comparison capability up to 30 faces/second |
| Vehicle registration database | 10.000 license plates can be recorded Comparison capability up to 25 faces/second |
| Access to Fisheye cameras | Supports 1CH of Fisheye camera configuration |
| Video wall decoders | Up to 16 videowalls can be created |
| Video wall plans | You can create up to 64 planes max. by videowall |
External interface |
|
| Ethernet interface | 2x RJ45 10/100/1000M auto-adaptive |
| Storage | 8x SATA3.0 to 10TB per HDD RAID support: 0, 1, 5, 6, 10 |
| E-SATA interface | 2x E-SATA |
| Alarms | 16 inputs / 8 alarm outputs |
| USB | 1x USB 3.0, 3x USB 2.0 |
Other |
|
| Power | Redundant power supply, AC100V~240V |
| Power consumption | <50W (sin HDD) |
| Temperatura de funcionamiento | -10ºC ~ 50ºC |
| Humedad relativa | 10% ~ 90% |
| Dimensions | 560 (Fo) x 437.2 (W) x 88 (H) mm |
| Environmental protection | DirectivaEU RoHS, WEEE(2012/19/EU) , Directiva 94/62/EC y REACH(EC1907/2006) |
Package includes 📦

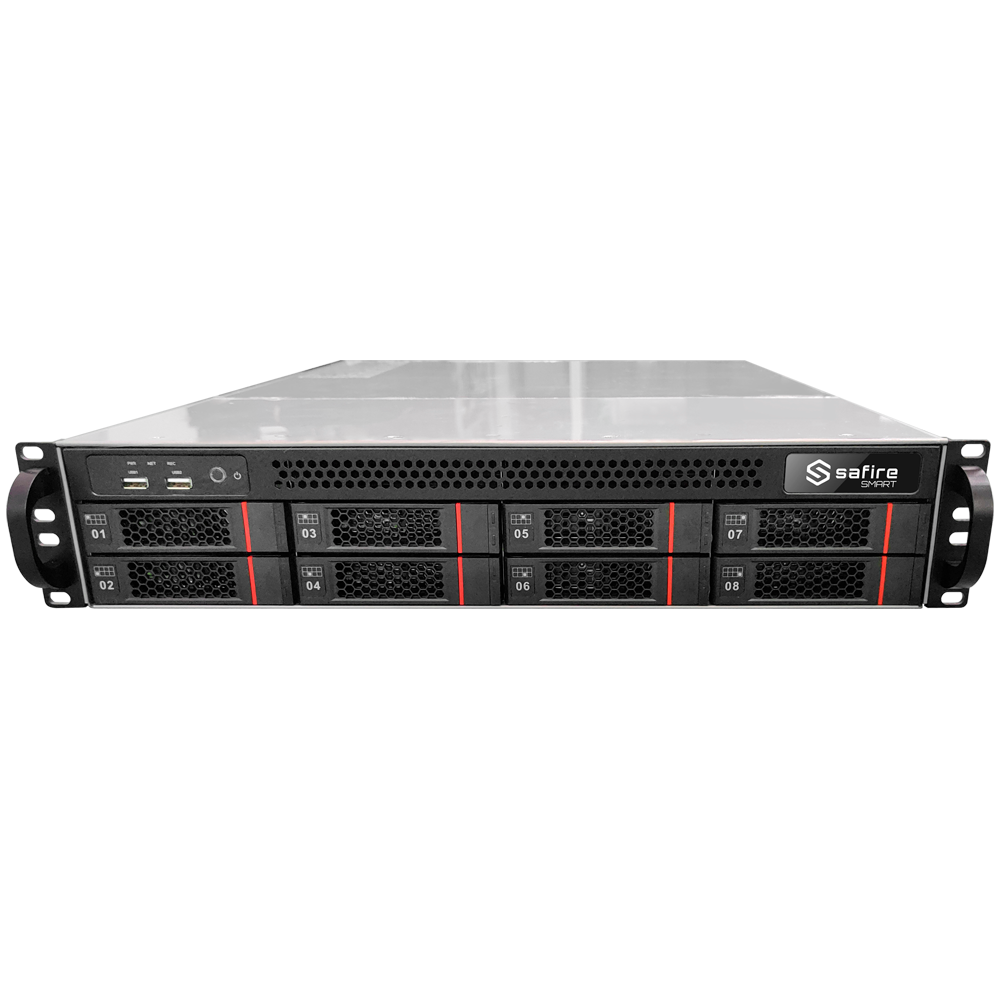

- 1000CH Safire Smart Server
- Power supply
- Ethernet Cable
- Quick Guide
