Safire Smart's LPR cameras can recognize vehicle license plates, analyzing also their make, type and color. Its metadata delivery via HTTP allows easy integration by third parties to receive license plates on those platforms that require a license plate reading camera. Also, the camera can be used for entry and exit control in a parking lot, sending a code by wiegand to integrate with a controller. When used with Safire Smart NVRs, you can have your autonomous parking management, counting both entrances and exits and opening the barrier depending on the configuration or need.
Features 🚀
- Safire Smart
- LPR range with License plate recognition
- Bullet IP camera
- 1/1.8" Progressive Scan CMOS
- 4 Megapixel (2688×1520)
- 2.8-12mm motorised lens
- Minimum illumination of 0.001 Lux@F1.6 | 0 Lux with IR
- IR Range 70 m
- Compression H.265+ / H.264+
- WDR
- 3DNR
- Integrated microphone
- Audio
- Alarms
- License plate recognition up to 80Km/h
- Allowed and disallowed list management with up to 10.000 license plates
- Detection of vehicles without license plates
- Detection of brand, color, type, model, year of production
- Wiegand
- P2P

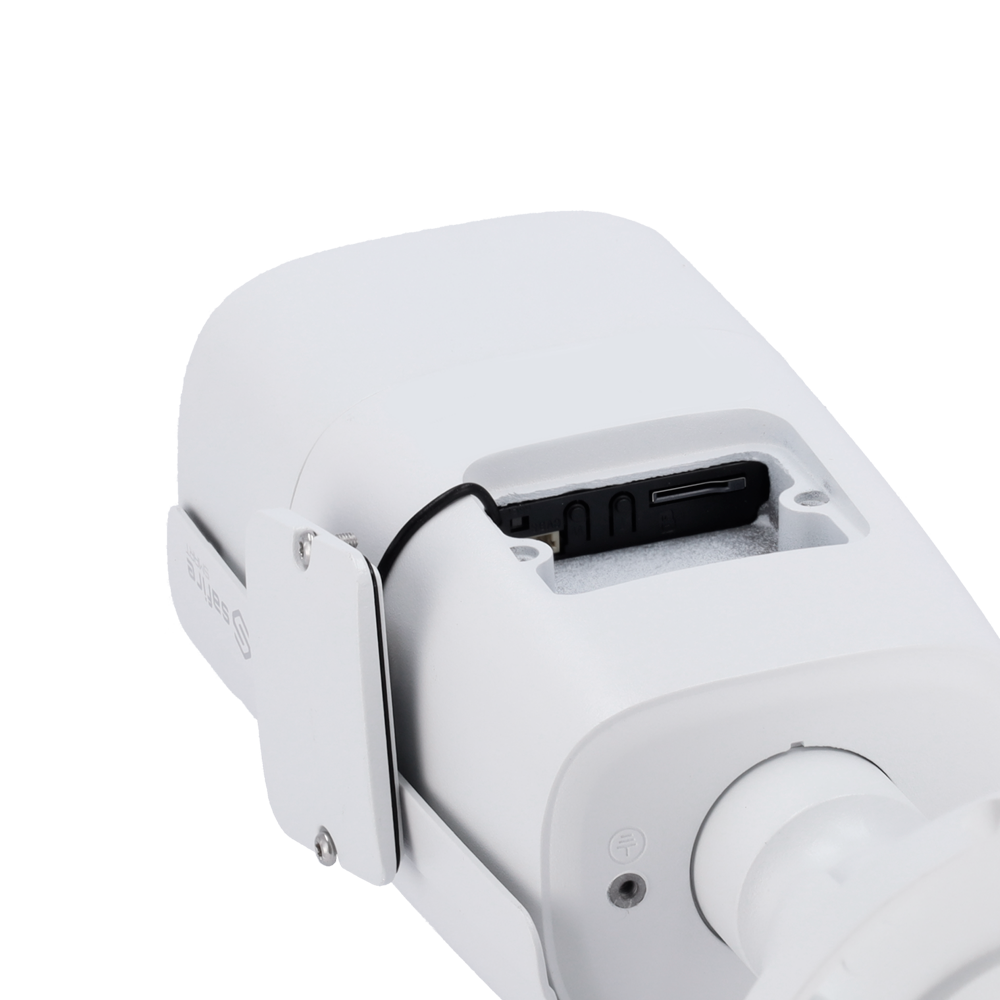

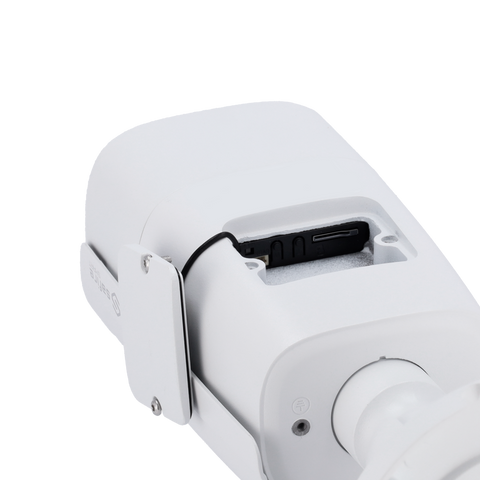

- Slot for MicroSD Card up to 256 GB
- CVBS output
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- Weatherproof IP67
Specifications 🤓
| Brand | Safire Smart |
| Range | LPR |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688×1520) |
| Minimum illumination | Colour: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 70 m |
| Day/Night | Removable mechanical ICR filter |
| Electronic Shutter | 1/2~1/100.000 s |
| Main Stream rate | 25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P) |
| Extra Stream rate | 25 FPS (720P, D1, CIF, 480x240) |
| Third Stream Rate | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Lens | Motorized 2.8 ~ 12 mm |
| Viewing Angle (FOV) | H: 100-48.5°, V: 54-26.5°, D: 119-55.8° |
| Range performance | W: 59 m (D), 24 m (O), 12 m (R), 6 m (I) T: 206 m (D), 82 m (O), 41 m (R), 21 m (I) |
| Image improvements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| License plate detection features | Capture of original (4Mpx) and license plate image Database of up to 10.000 license plates with list of permitted and not permitted Detection range up to 120Km/h Recommended detection distance: 3 - 8 m |
| Types of vehicle detection | Vehicles with and without license plates Direction of traffic Tolerance to the lack of a character on the license plate Feature extraction: Brand, model, year of manufacture, color, license plate color, type of vehicle |
| Audio | 1 Input / 1 Output |
| Audio Compression | G711A / U |
| Alarms | 1 Input / 1 Relay |
| Wiegand | Yes (26 bit) |
| P2P | Support |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal memory | MicroSD card up to 256GB |
| Remote access | Web Browser, Smartphone App Safire Smart, PC Software Safire Smart VMS |
| Interoperability | ONVIF |
| Power | DC 12 V / 12 W max. | AC 24V / 10 W max | PoE IEEE802.3af |
| Degree of protection | Weatherproof IP67 |
| Material | Metallic |
| Temp. operation | -30o C ~ +60o C |
| Dimensions | 88.7 (H) x 100.2 (W) x 278.3 (D) mm |
| Weight | 1176 g |
Package includes 📦

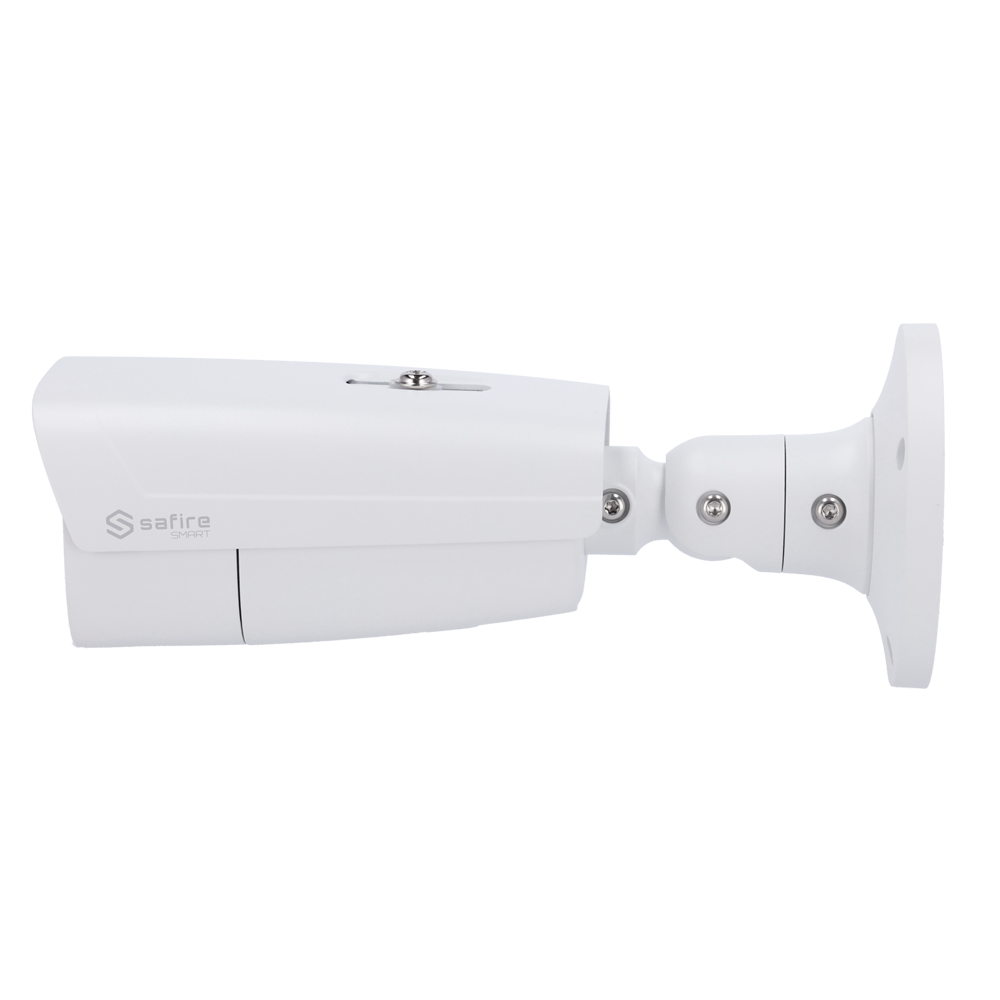

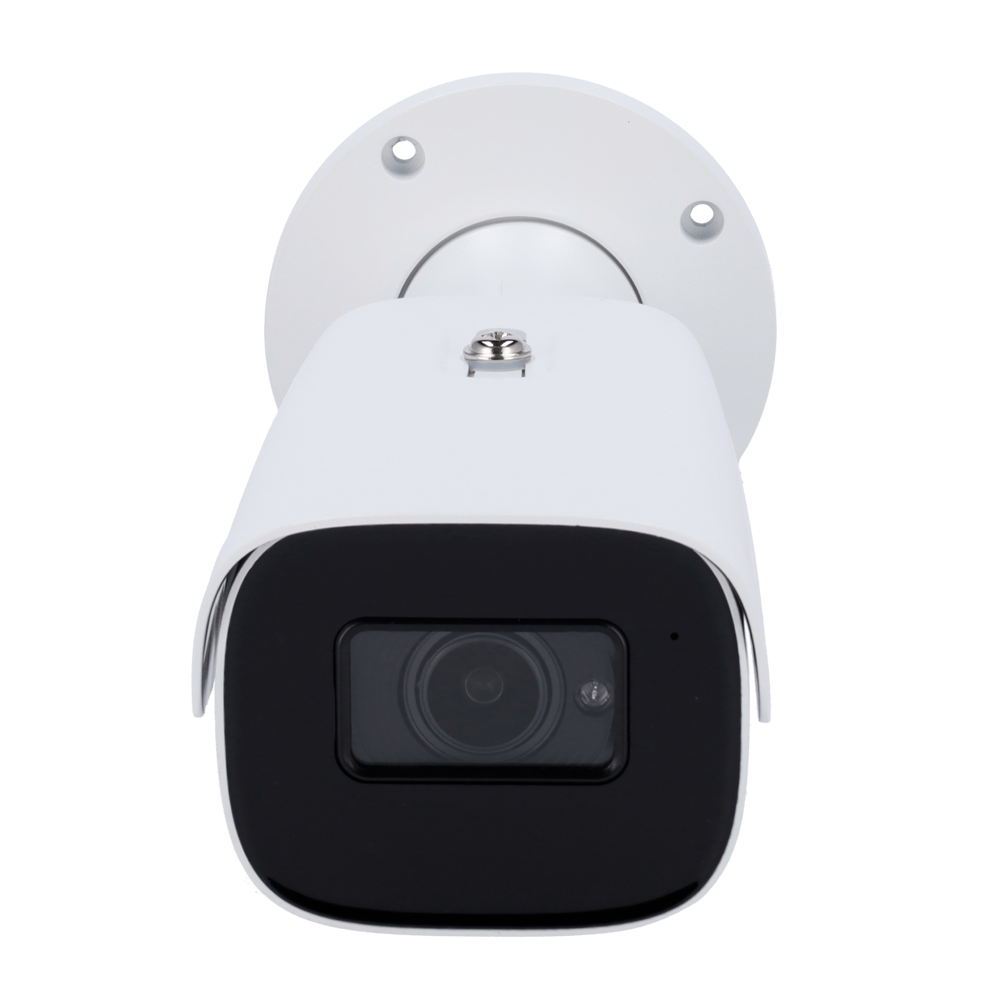

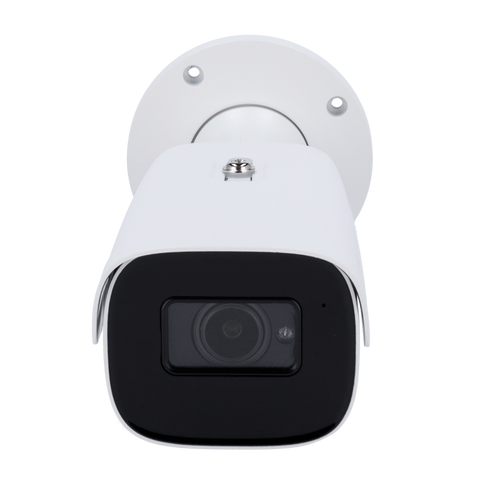

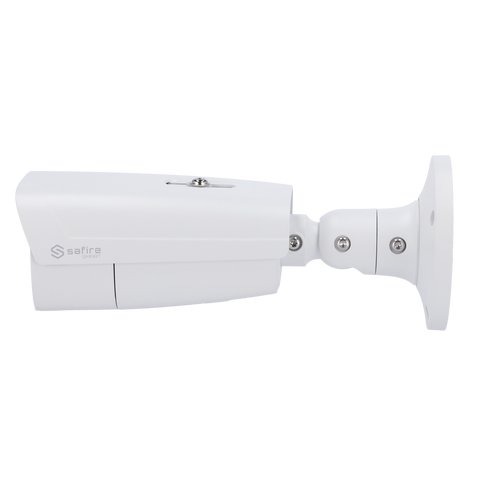

- Safire Smart LPR IP Bullet Camera
- Installation material
- Installation quick guide
